57104 - Toro 32" Lawn Tractor (SN: 000000001 - 000999999) (1970) FRONT AXLE ASSEMBLY Parts Diagram

32" Lawn Tractor

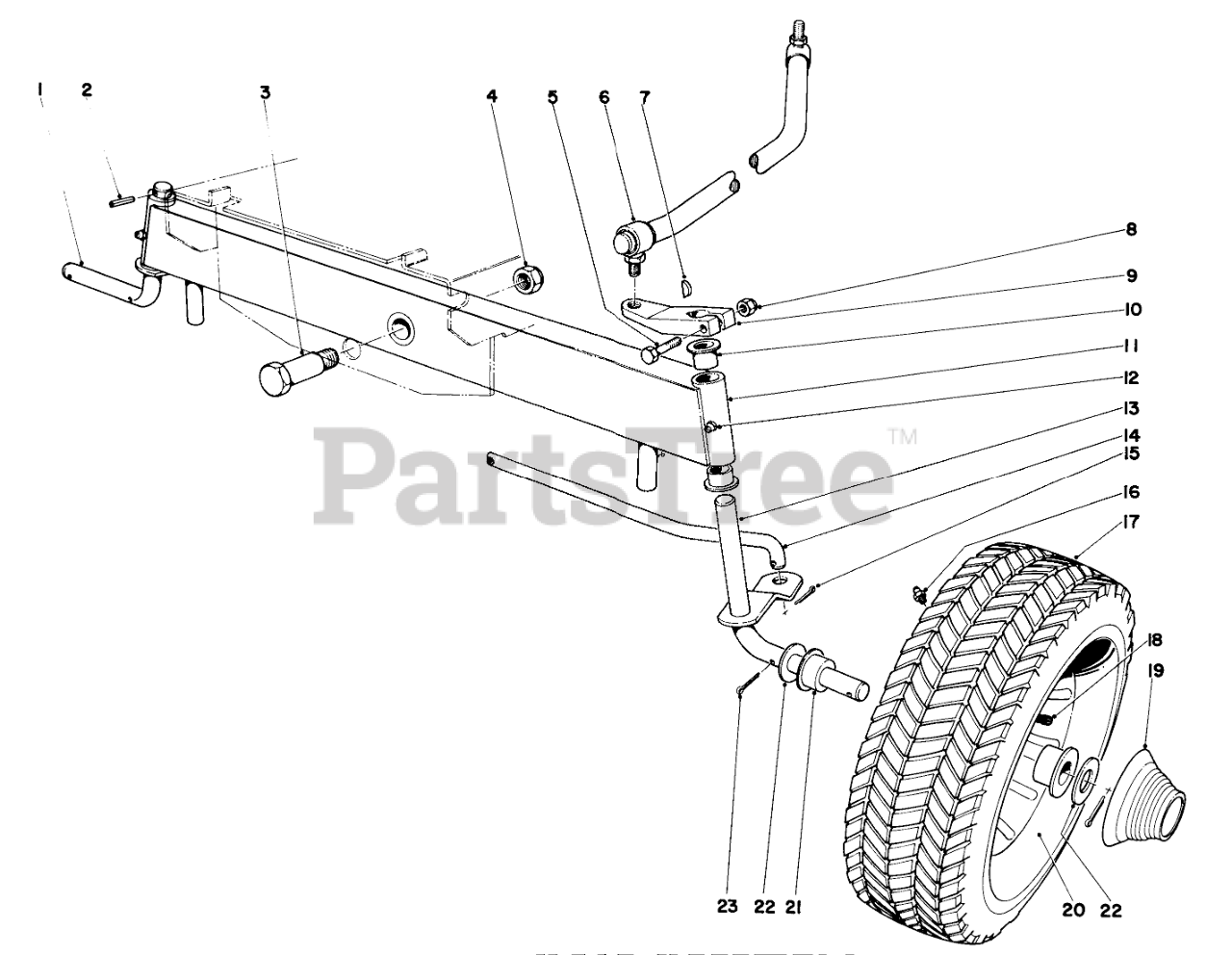

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-3718

Spindle

$

$

Not available

2

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

3

Toro 7-3884

Shoulder Bolt

$

$

Not available

4

Toro 32152-3S

Nut

$

$

Currently unavailable

5

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

6

Toro 7-4760

Steering Rod

$

$

Currently unavailable

7

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

8

Toro 32152-4S

Nut

$

$

Currently unavailable

9

Toro 7-3706

Arm Steering

$

$

Currently unavailable

10

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

11

Toro 7-3698

Front Axle

$

$

Currently unavailable

12

Toro 302-49

GREASE FITTING

$3.49

$

Usually ships in 3-6 days

0

13

Toro 7-3715

Spindle

$

$

Not available

14

Toro 7-3776

Tie Rod

$

$

Currently unavailable

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 231-SSS

Tire

$

$

Currently unavailable

18

232-27S

Valve Stem

$

$

Not available

19

Toro 7-3932

FRONT HUB CAP

$

$

Not available

20

Toro 217-80S

Rim

$

$

Currently unavailable

21

Toro 256-170S

Bushing

$

$

Currently unavailable

22

Toro 7-0131

Washer
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

23

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

Toro 7-3703

Wheel Assy. Front

$

$

Not available
