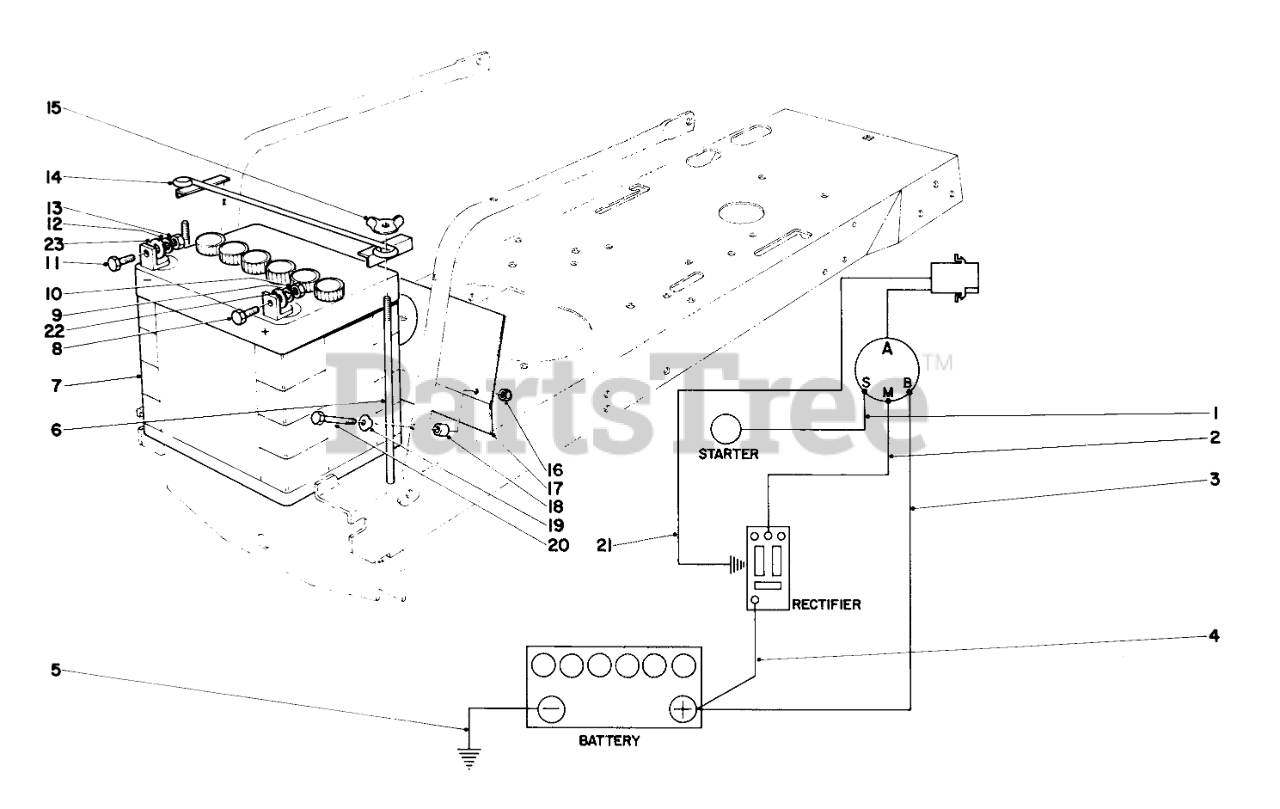

57104 - Toro 32" Lawn Tractor (SN: 000000001 - 000999999) (1970) ELECTRICAL DIAGRAM Parts Diagram

32" Lawn Tractor

ELECTRICAL DIAGRAM Parts Diagram

  • Title

1

Toro 7-4081

Wire Assy. Switch to Starter

$

$

Currently unavailable

2

Toro 7-5220

Wire Switch to Mag.

$

$

Currently unavailable

3

Toro 7-4082

Wire

$

$

Currently unavailable

4

Toro 7-4083

Wire Assy. Battery to Engine

$

$

Currently unavailable

5

Toro 7-4080

Wire Assembly

$

$

Currently unavailable

6

Toro 7-3328

BATTERY BOLT

$

$

Currently unavailable

7

Toro 239-15

Battery
(Superseded to 26-7290)

$

$

Not available

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

10

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

14

Toro 7-5000

Clamp

$

$

Not available

15

Toro 32103-12

NUT-WING

$1.49

$

In Stock, only 3 left!

0

16

Toro 32152-4S

Nut

$

$

Currently unavailable

17

Toro 7-4332

Heat Shield

$

$

Currently unavailable

18

Toro 7-3315

GRILLE HINGE SPACER

$

$

Not available

19

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

20

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

21

Toro 7-5230

Wire Assembly

$

$

Not available

22

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
