57077 - Toro 25" Lawn Tractor (SN: 001000001 - 001999999) (1971) EXHAUST SYSTEM Parts Diagram

25" Lawn Tractor

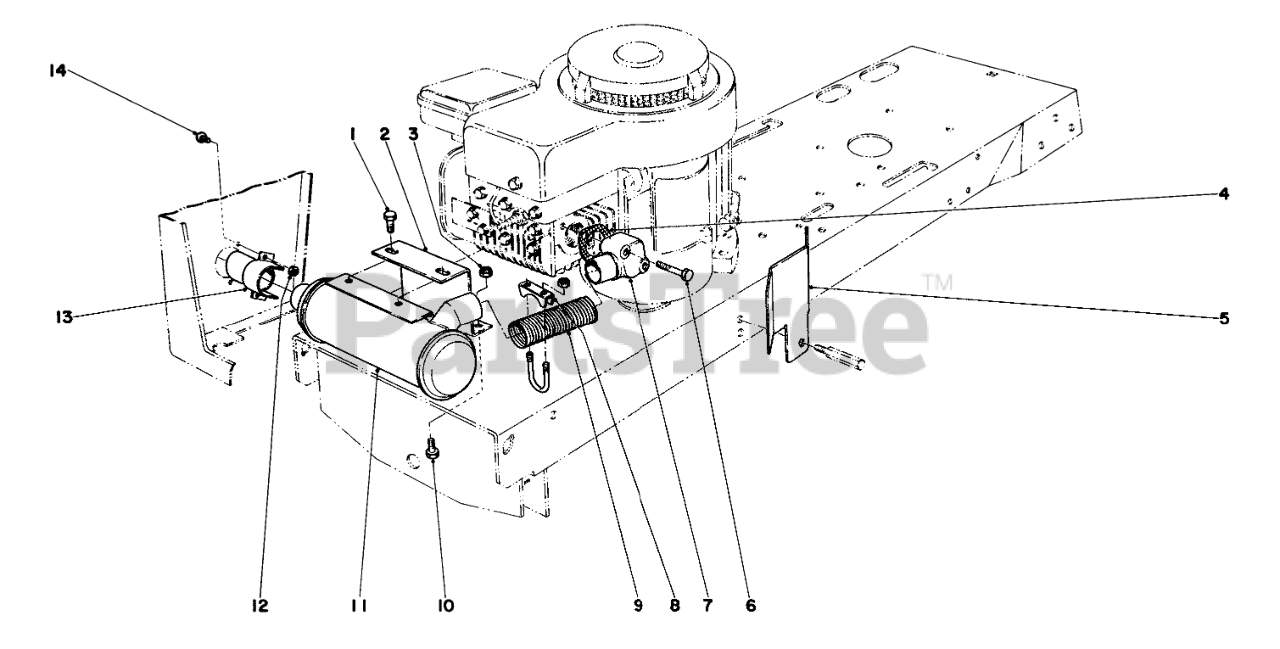

EXHAUST SYSTEM Parts Diagram

  • Title
1

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

2

Toro 7-7160

Muffler Support

$

$

Currently unavailable

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

4

Toro 7-8430

Gasket

$

$

Not available

5

Toro 7-7650

Heat Baffle

$

$

Currently unavailable

6

Toro 7-8850

Capscrew

$

$

Not available

7

Toro 7-8760

Elbow Exhaust

$

$

Not available

8

Toro 5-3179

Muffler Clamp

$

$

Not available

9

Toro 7-8700

Exhaust Tubing

$

$

Not available

10

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

11

Toro 7-7180

Muffler

$

$

Not available

12

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

13

Toro 7-7070

Exhaust Tip

$

$

Currently unavailable

14

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0
