57054 - Toro 25" Lawn Tractor (SN: 000000001 - 000999999) (1970) MODEL 352 TRANSMISSION Parts Diagram

25" Lawn Tractor

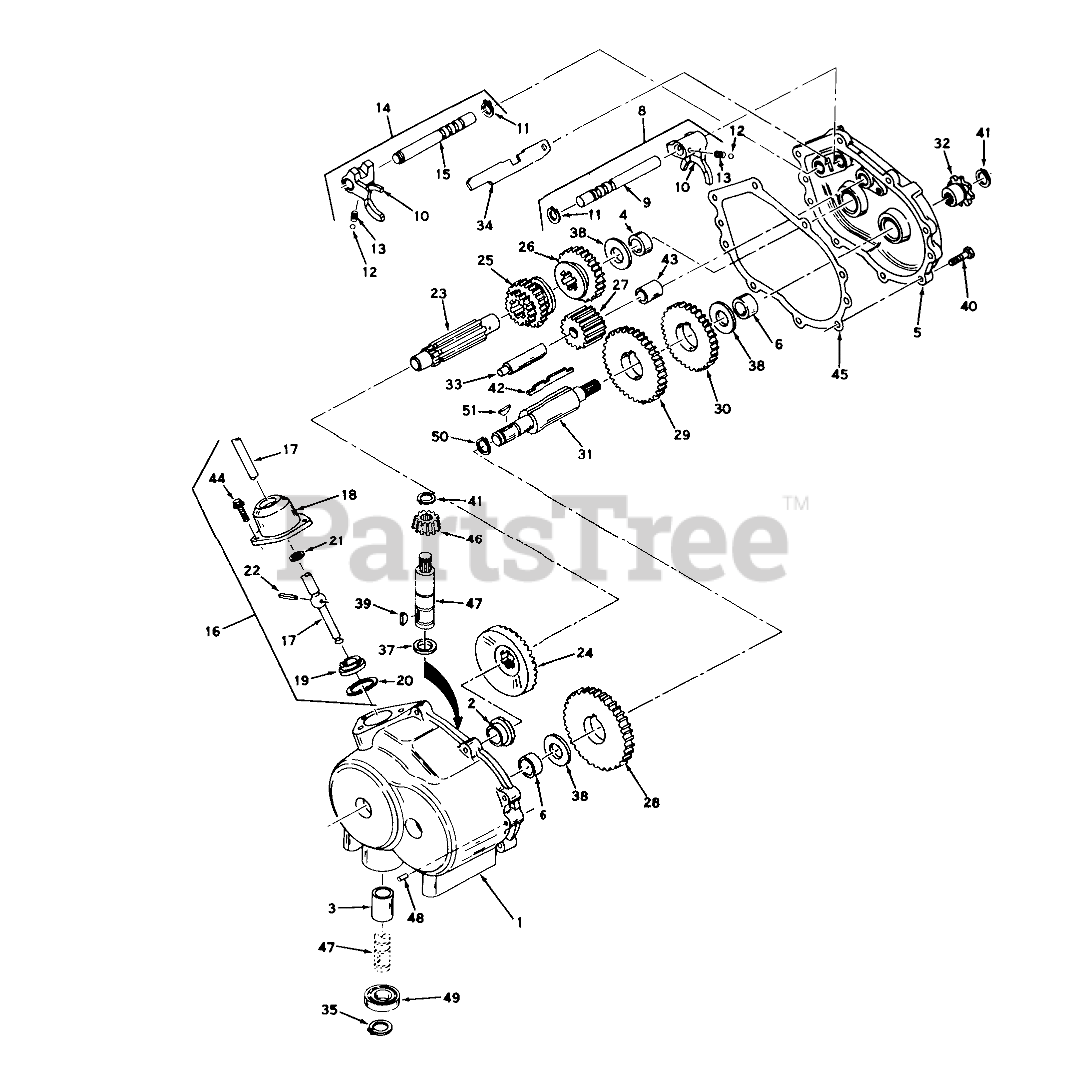

MODEL 352 TRANSMISSION Parts Diagram

  • Title
1

Toro 770048

Case Assy., Transmission (Incl. Nos. 2, 3 & 6)

$

$

Currently unavailable

2

Toro 780079

Bearing, Bronze

$

$

Currently unavailable

3

Toro 780087

Bearing, Bronze

$

$

Currently unavailable

4

Toro 780080

Bearing, Bronze

$

$

Currently unavailable

5

Toro 772060

Cover Assy., Transmission (Incl. Nos. 4 & 6)

$

$

Currently unavailable

6

Toro 780081

Bushing, Bronze

$

$

Currently unavailable

8

Toro 784079

Rod Assy., Shift (Incl. Nos 9 thru 13)

$

$

Currently unavailable

9

Toro 784083

Shift Rod

$

$

Currently unavailable

10

Toro 784004

Shift Fork

$

$

Currently unavailable

11

Toro 792017

Ring-Snap

$

$

Currently unavailable

12

Toro 792004

Piston ASM

$

$

Currently unavailable

13

Toro 792003

Spring

$

$

Currently unavailable

14

Toro 784128

Rod Assy., Shift (Incl. Nos. 1O thru 13 & 15)

$

$

Currently unavailable

15

Toro 784129

Rod, Shift

$

$

Currently unavailable

16

Toro 784177

Lever & Housing Assy., Shift (Incl. Nos. 17 thru 22)

$

$

Currently unavailable

17

Toro 784178

Lever, Shift

$

$

Currently unavailable

18

Toro 784088

Shift Lever Housing

$

$

Currently unavailable

19

Toro 784094

Keeper-Shift Lever

$

$

Currently unavailable

20

Toro 792016

Ring-Snap

$

$

Currently unavailable

21

Toro 792001

O Ring

$

$

Currently unavailable

22

Toro 792002

Roll Pin

$

$

Currently unavailable

23

Toro 776079

Shaft, Shifter

$

$

Currently unavailable

24

Toro 778070

Gear, Bevel (33 teeth)

$

$

Currently unavailable

25

Toro 778071

Gear, Shift 1st & 2nd)

$

$

Currently unavailable

26

Toro 778072

Gear, Shift 3rd & Rev.)

$

$

Currently unavailable

27

Toro 778073

Idler, Reverse

$

$

Currently unavailable

28

Toro 778074

Gear (39 teeth)

$

$

Currently unavailable

29

Toro 778062

Gear (34 teeth)

$

$

Currently unavailable

30

Toro 778075

Gear (30 teeth)

$

$

Currently unavailable

31

Toro 776083

Shaft, Output

$

$

Currently unavailable

32

Toro 786047

Sprocket (8Teeth)

$

$

Currently unavailable

33

Toro 776081

Shaft, Reverse Idler

$

$

Currently unavailable

34

Toro 784132

Stop, Shifter

$

$

Currently unavailable

35

Toro 792035

Ring-Snap

$

$

Currently unavailable

37

Toro 780082

Bearing, Thrust

$

$

Currently unavailable

38

Toro 780001

Washer

$

$

Currently unavailable

39

Toro 792045

Key, Woodruff

$

$

Currently unavailable

40

Toro 792046

Screw-Thread Forming

$

$

Currently unavailable

41

Toro 788040

Ring-Retainer

$

$

Currently unavailable

42

Toro 792034A

Key, Countershaft

$

$

Currently unavailable

43

Toro 786036

Reverse Idler Spacer

$

$

Currently unavailable

44

Toro 792007

Screw

$

$

Currently unavailable

45

Toro 788041

Gasket, Transmission

$

$

Currently unavailable

46

Toro 778077

Pinion, Input

$

$

Currently unavailable

47

Toro 776098

Shaft, Input

$

$

Currently unavailable

48

Toro 786026

Dowel Pin

$

$

Currently unavailable

49

Toro 780092

Bearing-Ball

$

$

Currently unavailable

50

Toro 788038

Snap Ring

$

$

Currently unavailable

51

Toro 792047

Kev. Woodruff

$

$

Currently unavailable
