57051 - Toro 25" Lawn Tractor (SN: 009000001 - 009999999) (1969) 905 AND 910 STEERING AND TRANSMISSION ASSEMBLY Parts Diagram

25" Lawn Tractor

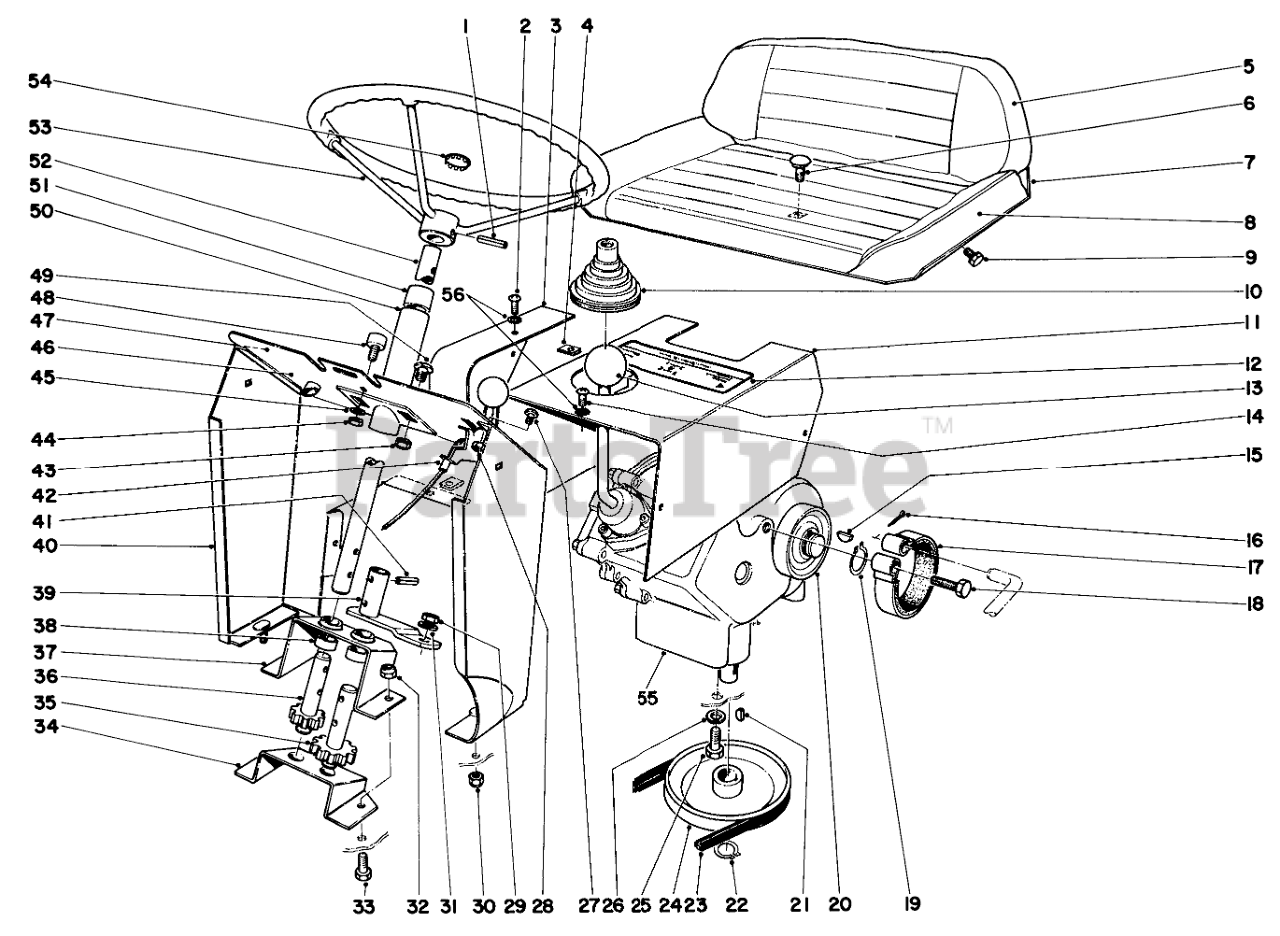

905 AND 910 STEERING AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 7

0

2

Toro 3290-111

10-24 X 3/8 PAN HD SC

$

$

Not available

3

Toro 7-3873

Chain Guard

$

$

Not available

4

Toro 3290-191

NUT-CLIP,U

$6.99

$

Usually ships in 3-6 days

0

5

Toro 7-4298

Seat Cover 905

$

$

Currently unavailable

Toro 7-3351

Cushion Back

Note: Not illustrated

$

$

Currently unavailable

6

Toro 3233-1

SCREW-CARR

$8.49

$

Usually ships in 3-6 days

0

7

Toro 7-4297

Frame Seat 905

$

$

Currently unavailable

Toro 7-3871

Frame Seat

Note: Not illustrated

$

$

Currently unavailable

8

Toro 7-3872

Cushion Seat

$

$

Currently unavailable

9

Toro 32140-16

Screw
(Superseded to 32140-42)

$

$

Not available

10

Toro 7-3893

Boot Shift Lever

$

$

Not available

11

Toro 7-3784

Cover Transmission

$

$

Currently unavailable

12

Toro 7-3907

Decal Shift Pattern

$

$

Currently unavailable

13

Toro 233-21S

Knob

$

$

Currently unavailable

14

Toro 3290-111

10-24 X 3/8 PAN HD SC

$

$

Not available

15

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

16

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

17

Toro 7-3876

Brake Band

$

$

Not available

18

Toro 32104-28

He Ha. Screw

$

$

Not available

19

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

20

Toro 7-3785

Brake Drum

$

$

Currently unavailable

21

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

22

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

23

Toro 7-3890

TRANS TO ENGINE BELT

$

$

Not available

24

Toro 7-4085

PULLEY

$186.99

$

In Stock, only 3 left!

0

25

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

26

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

27

Toro 32122-43S

Machine Screw

$

$

Currently unavailable

28

Toro 32149-6

NUT-KEPS

$0.99

$

Usually ships in 3-6 days

0

29

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

30

Toro 32152-4S

Nut

$

$

Currently unavailable

31

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

32

32152-1S

Nut

$

$

Not available

33

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

34

Toro 7-3710

Bracket Steering

$

$

Not available

35

Toro 7-3733

Steering Gear

$

$

Currently unavailable

36

Toro 7-3734

Pinion Gear

$

$

Currently unavailable

37

Toro 7-3711

Support Steering

$

$

Currently unavailable

38

Toro 7-3747

Spacer

$

$

Not available

39

Toro 7-3883

Steering Arm

$

$

Currently unavailable

40

Toro 7-3804

Rear Hood Support

$

$

Currently unavailable

41

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

42

Toro 7-3746

Throttle Control

$

$

Currently unavailable

43

32152-1S

Nut

$

$

Not available

44

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

45

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

46

Toro 7-3804

Rear Hood Support

$

$

Currently unavailable

47

Toro 7-3926

Decal Control Panel 905

$

$

Currently unavailable

Toro 7-4386

Decal Control Panel 910

Note: Not illustrated

$

$

Currently unavailable

48

Toro 7-4388

Stud

$

$

Currently unavailable

49

Toro 3258-158S

Truss Head Screw

$

$

Currently unavailable

50

Toro 7-3725

Steering Tube Assy.

$

$

Currently unavailable

51

Toro 256-167

BUSHING

$

$

Not available

52

Toro 7-3723

Shaft Steering

$

$

Currently unavailable

53

Toro 7-3722

Steering Wheel

$

$

Currently unavailable

54

Toro 7-3892

Plug

$

$

Currently unavailable

55

Toro 7-3708

Transmission

$

$

Currently unavailable

56

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

Toro 3217-26

NUT-HEX

Note: Not illustrated

$1.99

$

In Stock, only 2 left!

0

Toro 3255-17

WASHER-LOCK, EXT

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

Toro 3290-111

10-24 X 3/8 PAN HD SC

Note: Not illustrated

$

$

Not available
