57051 - Toro 25" Lawn Tractor (SN: 009000001 - 009999999) (1969) 905 AND 910 REAR AXLE ASSEMBLY Parts Diagram

25" Lawn Tractor

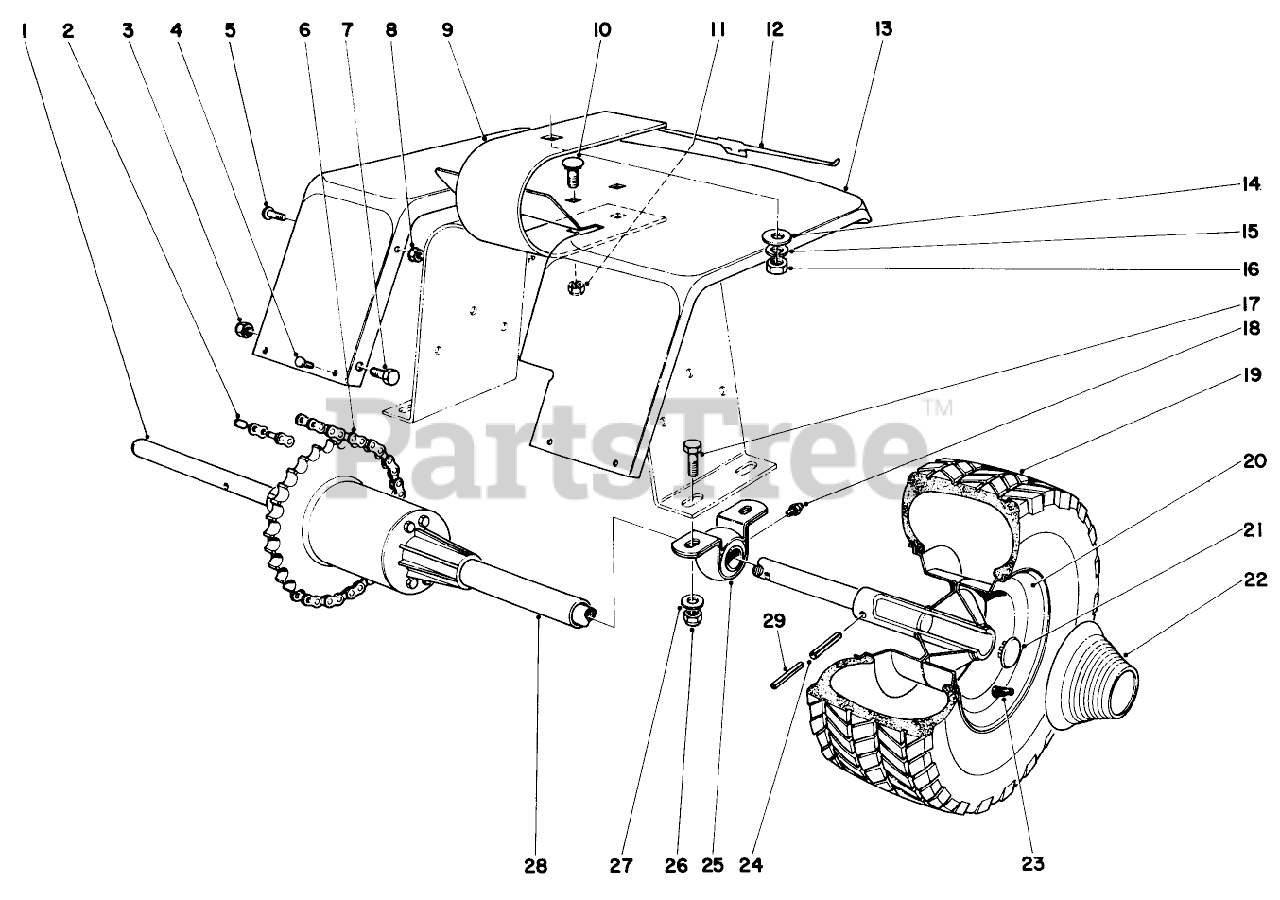

905 AND 910 REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 7-3692

Differential

$

$

Currently unavailable

2

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

3

32152-1S

Nut

$

$

Not available

4

Toro 3290-111

10-24 X 3/8 PAN HD SC

$

$

Not available

5

Toro 329_111

Pan Head Screw

$

$

Currently unavailable

6

Toro 7-3870

Roller Chain

$

$

Currently unavailable

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

9

Toro 7-3674

Seat Spring

$

$

Currently unavailable

10

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

$

$

Currently unavailable

12

Toro 7-3908

Decal

$

$

Currently unavailable

13

Toro 7-3745

Fender

$

$

Currently unavailable

14

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

16

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

Toro 32152-3S

Nut

Note: Not Illustrated.

$

$

Currently unavailable

17

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

19

Toro 7-4296

Rear Wheel Assembly 905

$

$

Currently unavailable

Toro 7-3774

Rear Wheel Assembly

Note: Not Illustrated.

$

$

Not available

Toro 231-49S

Tire

Note: Not Illustrated.

$

$

Currently unavailable

20

$

$

Currently unavailable

21

Toro 2410-11

Button 905

$

$

Currently unavailable

22

Toro 7-3933

Hub Cap Rear

$

$

Currently unavailable

23

232-27S

Valve Stem

$

$

Not available

24

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

25

Toro 7-3770

PILLOW BLOCK

$

$

Not available

26

$

$

Currently unavailable

27

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Toro 7-3877

Tube Rear Axle

$

$

Currently unavailable

29

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0
