57051 - Toro 25" Lawn Tractor (SN: 009000001 - 009999999) (1969) 905 AND 910 FRONT AXLE ASSEMBLY Parts Diagram

25" Lawn Tractor

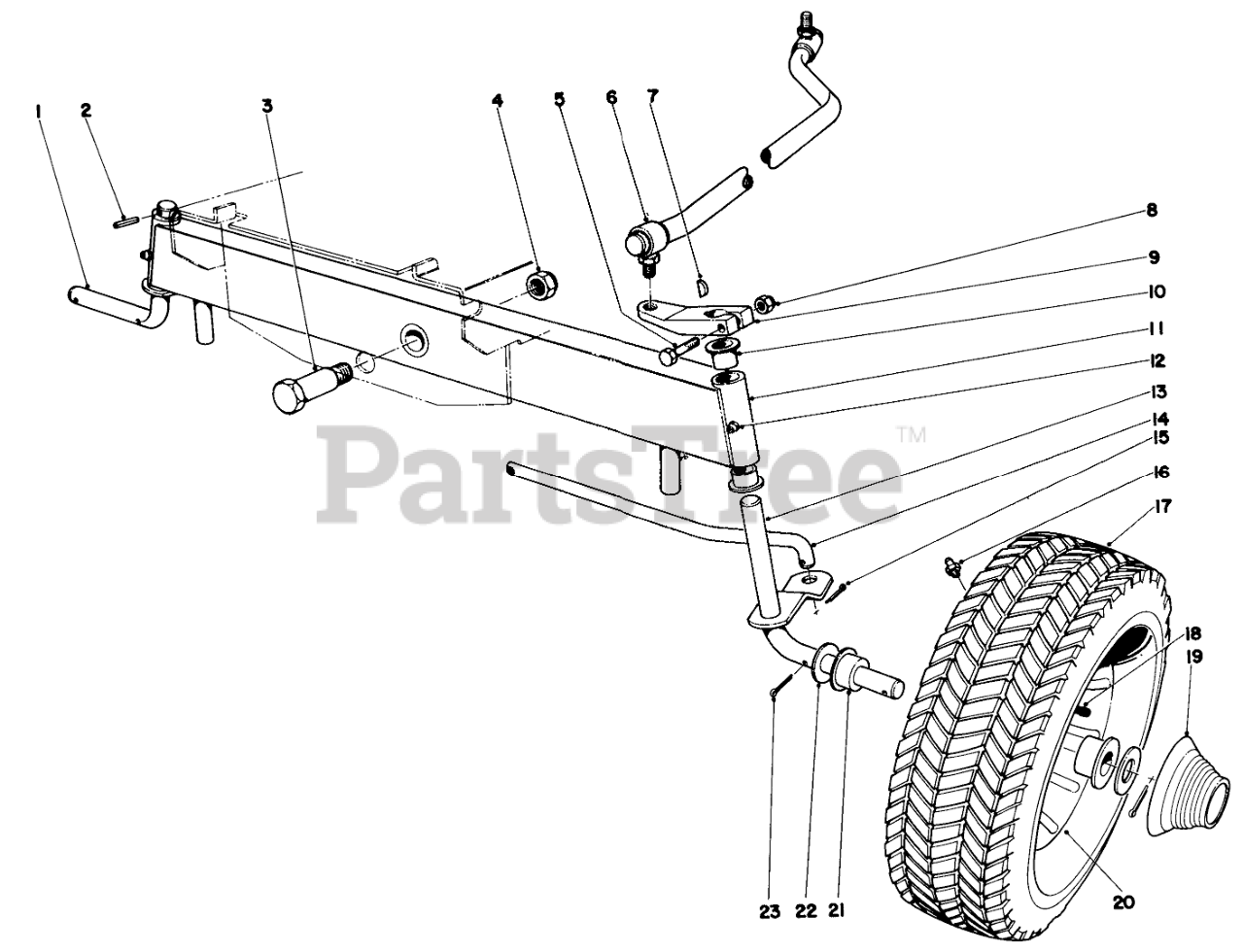

905 AND 910 FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-3716

Spindle R.H. 905

$

$

Currently unavailable

Toro 7-3718

Spindle

Note: Not illustrated

$

$

Not available

2

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

3

Toro 7-3884

Shoulder Bolt

$

$

Not available

4

Toro 32152-3S

Nut

$

$

Currently unavailable

5

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

6

Toro 7-3880

Steering Rod

$

$

Currently unavailable

7

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

8

Toro 32152-4S

Nut

$

$

Currently unavailable

9

Toro 7-3706

Arm Steering

$

$

Currently unavailable

10

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

11

Toro 7-3698

Front Axle

$

$

Currently unavailable

12

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

13

Toro 7-3717

Spindle L.H. 905

$

$

Currently unavailable

Toro 7-3715

Spindle

Note: Not illustrated

$

$

Not available

14

Toro 7-3776

Tie Rod

$

$

Currently unavailable

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 7-3220

Wheel
(Superseded to 20-3350)

$

$

Not available

Toro 7-3703

Wheel Assy. Front

Note: Not illustrated

$

$

Not available

Toro 231-SSS

Tire

Note: Not illustrated

$

$

Currently unavailable

18

232-27S

Valve Stem

$

$

Not available

19

Toro 7-3932

FRONT HUB CAP

$

$

Not available

20

Toro 217-80S

Rim

$

$

Currently unavailable

21

Toro 256-170S

Bushing

$

$

Currently unavailable

22

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

23

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0
