57050 - Toro 25" Lawn Tractor (SN: 008000001 - 008999999) (1968) FIGURE 11. TRANSMISSION (TWO-SPEED) Parts Diagram

25" Lawn Tractor

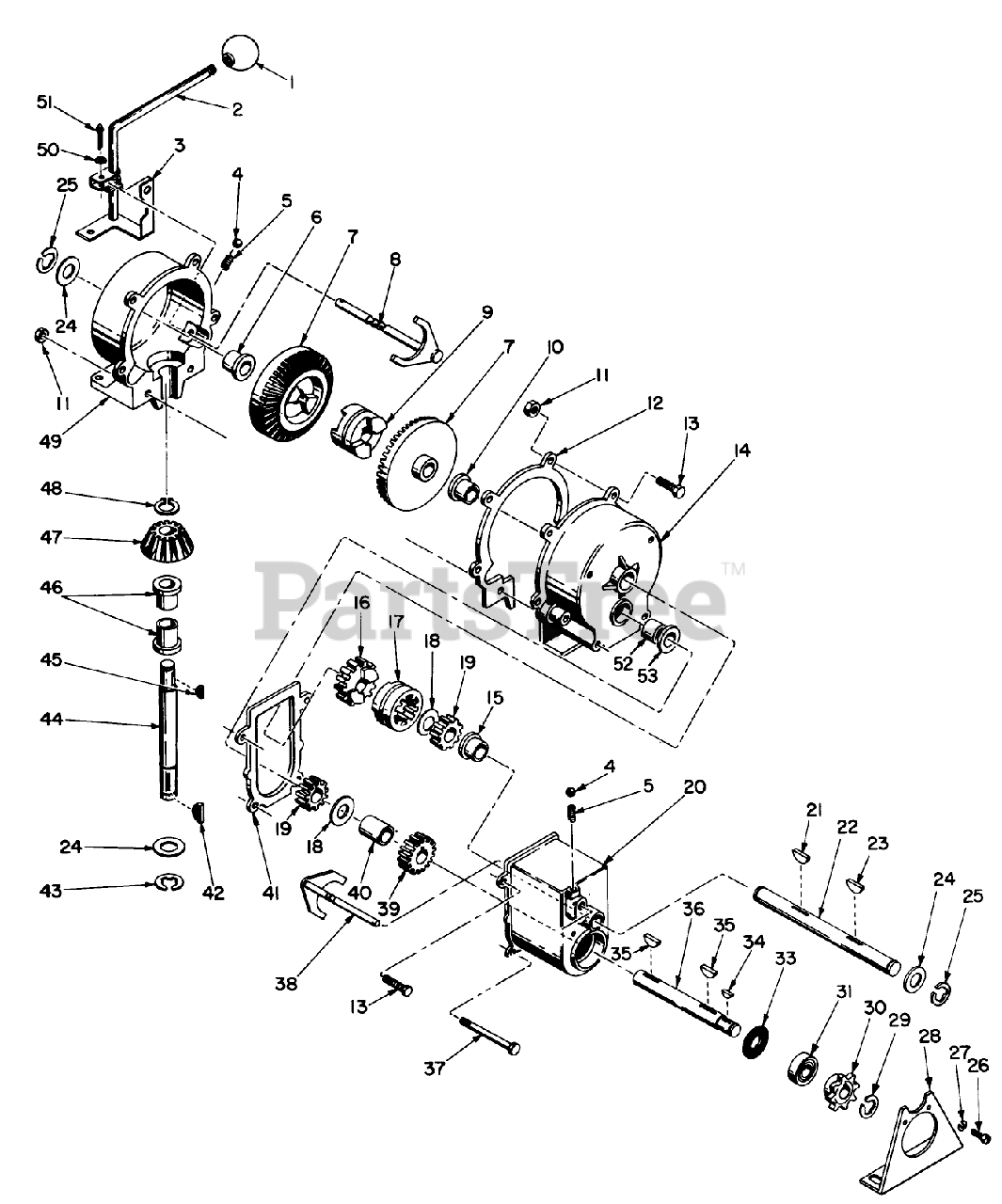

FIGURE 11. TRANSMISSION (TWO-SPEED) Parts Diagram

  • Title

1

2119-368(S

Knob, Shifter

$

$

Not available

2

Toro 2119-369(S

Shifter Lever Assy

$

$

Currently unavailable

3

Toro 2119-370(S

Bracket, Shift Lever

$

$

Currently unavailable

4

Toro 255-1

Ball

$

$

Not available

5

Toro 2119-130

Spring, Detent

$

$

Currently unavailable

6

Toro 2119-127

Bearing, Flange

$

$

Currently unavailable

7

Toro 2119-122

Bevel Gear

$

$

Not available

8

Toro 2119-371(S

Detent Shaft Assy

$

$

Currently unavailable

9

Toro 2119-123

Clutch Collar

$

$

Currently unavailable

10

Toro 2119-144

Bearing, Flange, 1-1/4 in. flange

$

$

Currently unavailable

11

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

12

Toro 2119-132

Gasket (0.006)

$

$

Currently unavailable

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 2119-151

Housing Half

$

$

Not available

15

Toro 2119-143

Bearing, Flange, 1 in. flange

$

$

Currently unavailable

16

Toro 2119-137

Gear (17T-Int. shaft)

$

$

Currently unavailable

17

Toro 2119-139

Clutch Collar

$

$

Currently unavailable

18

Toro 2119-129

Washer, 1/16 inch thick

$

$

Not available

19

Toro 2119-136

Gear (13T)

$

$

Currently unavailable

20

Toro 2119-134

Housing, 2 speed

$

$

Currently unavailable

21

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

22

Toro 2119-372(S

Shaft, Internal

$

$

Currently unavailable

23

Toro 2119-373(S

Key, HI-Pro No. 606 (0.875)

$

$

Currently unavailable

24

Toro 2119-129

Washer, 1/16 inch thick

$

$

Not available

25

Toro 32120-81

Snap Ring (1000-62)
(Superseded to 32120-19)

$2.99

$

In Stock, Qty 14

0

26

Toro 3252-2

10-24 X 1/2 FIL HD MS

$1.99

$

In Stock, Qty 5

0

27

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

28

Toro 2119-145

Bracket, Outboard

$

$

Currently unavailable

29

Toro 32120-82

Snap Ring (1000-50)

$

$

Currently unavailable

30

Toro 2119-125

SPROCKET

$

$

Not available

31

Toro 251-156

Bearing, Ball

$

$

Currently unavailable

33

Toro 2119-131

Shim, 0.010 in. thick

$

$

Currently unavailable

34

Toro 3257-27

3/32X5/8 WOODRUFF KEY

$

$

Not available

35

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

36

Toro 2119-149

Shaft, Output

$

$

Currently unavailable

37

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

38

Toro 2119-142

Detent Shaft Assy

$

$

Currently unavailable

39

Toro 2119-138

Gear (17T-Output Shaft)

$

$

Currently unavailable

40

Toro 2119-146

Spacer

$

$

Currently unavailable

41

Toro 2119-147

Gasket (0.020)

$

$

Currently unavailable

42

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 7

0

43

Toro 32120-79

Snap Ring (3100-62)
(Superseded to 32120-64)

$3.49

$

In Stock, only 2 left!

0

44

Toro 2119-374(S

Shaft, Input

$

$

Currently unavailable

45

Toro 3257-21

Woodruff Key

$

$

Currently unavailable

46

Toro 2119-375(S

Bearing, Flanged, Keyed

$

$

Currently unavailable

47

Toro 2119-121

Pinion, Bevel

$

$

Currently unavailable

48

Toro 32120-80

Snap Ring

$

$

Currently unavailable

49

Toro 2119-153

Housing Half, with detent hole

$

$

Currently unavailable

50

Toro 3253-1

Lockwasher

$

$

Currently unavailable

51

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

52

Toro 252-50

Needle Bearing

$

$

Currently unavailable

53

Toro 2119-154

Thrust Washer

$

$

Currently unavailable
