57003 - Toro 25" Lawn Tractor (SN: 003000001 - 003999999) (1973) TRANSMISSION ASSEMBLY Parts Diagram

25" Lawn Tractor

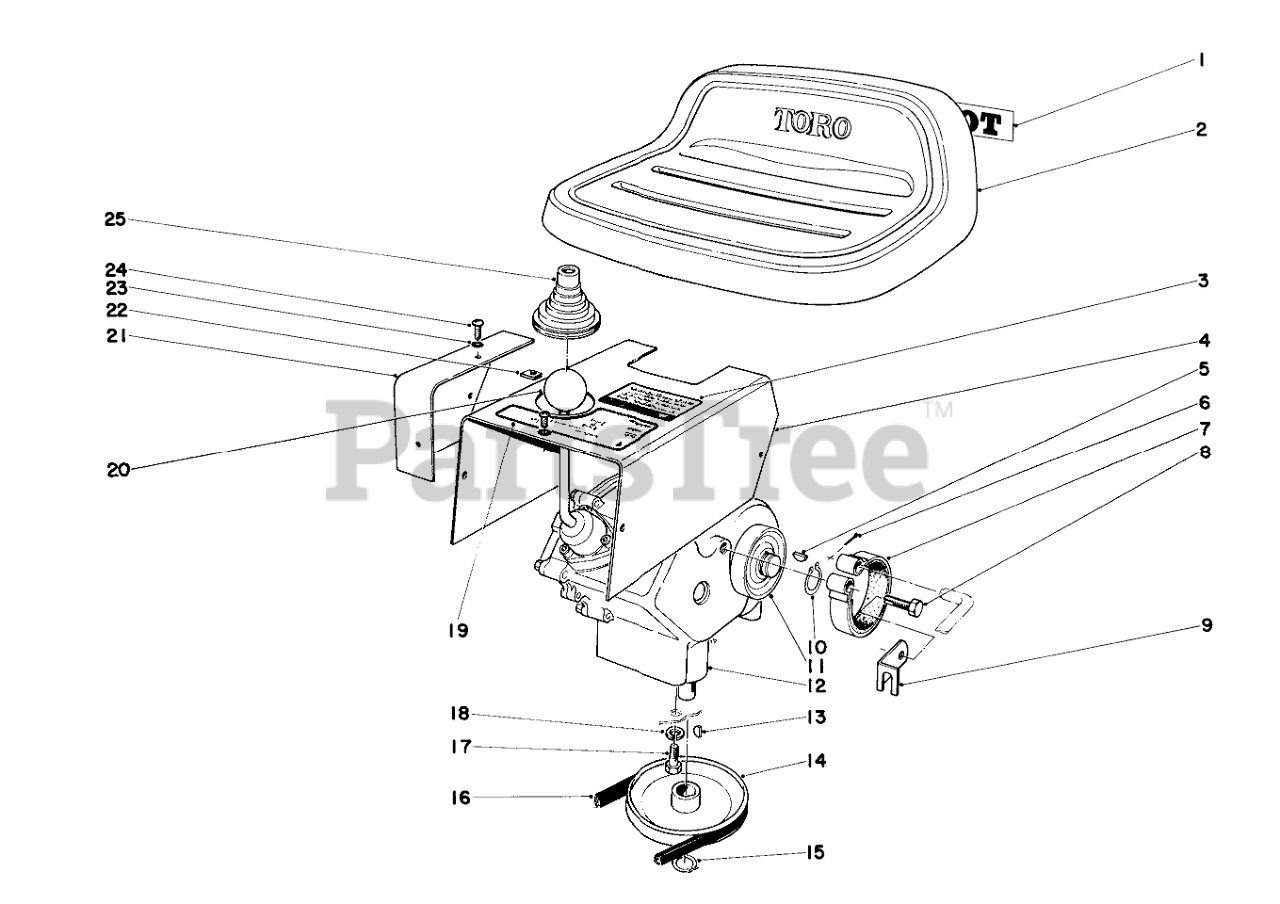

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 12-2940

Decal

$

$

Currently unavailable

2

Toro 12-2780

Seat

$

$

Currently unavailable

3

Toro 12-2900

Decal-Caution

$

$

Currently unavailable

4

Toro 7-3784

Cover Transmission

$

$

Currently unavailable

5

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 7-6340

Brake Band

$

$

Not available

8

Toro 32104-107

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

9

Toro 7-6300

Retainer Brake Rod

$

$

Currently unavailable

10

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

11

Toro 7-3785

Brake Drum

$

$

Currently unavailable

12

Toro 7-3708

Transmission

$

$

Currently unavailable

13

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

14

Toro 7-4085

PULLEY

$186.99

$

In Stock, only 3 left!

0

15

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

16

Toro 7-3890

TRANS TO ENGINE BELT

$

$

Not available

17

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

18

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

19

Toro 12-4010

Decal, Shift Pattern (Mod. 57003)

$

$

Currently unavailable

Toro 12-3970

Decal, Shift Pattern (Mod. 57017)

Note: Not illustrated

$

$

Currently unavailable

20

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

21

Toro 7-3873

Chain Guard

$

$

Not available

22

Toro 3290-191

NUT-CLIP,U

$6.99

$

Usually ships in 3-6 days

0

23

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3290-111

10-24 X 3/8 PAN HD SC

$

$

Not available

25

Toro 7-3893

Boot Shift Lever

$

$

Not available
