57003 - Toro 25" Lawn Tractor (SN: 003000001 - 003999999) (1973) HOOD AND ENGINE ASSEMBLY Parts Diagram

25" Lawn Tractor

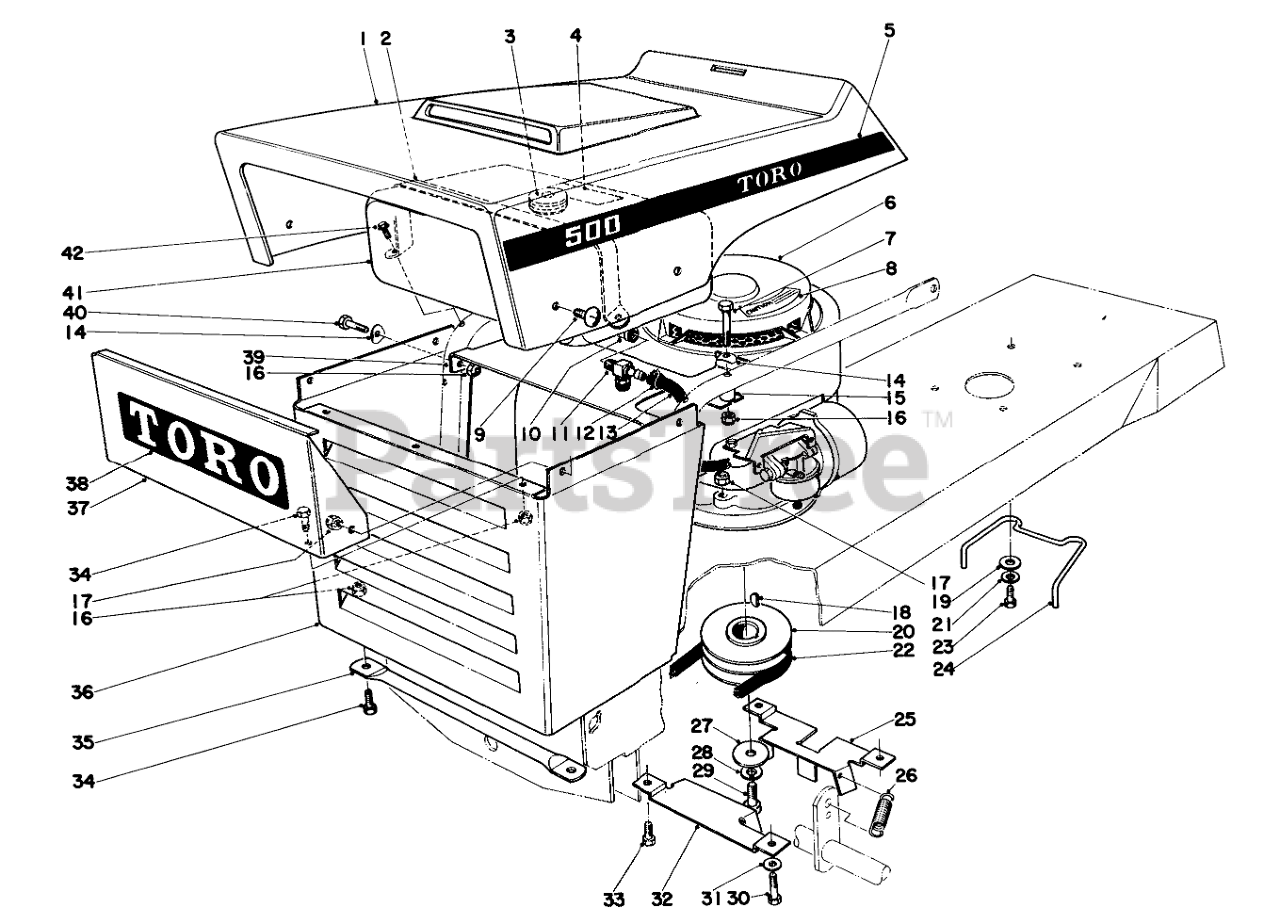

HOOD AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-4980

Hood

$

$

Currently unavailable

2

Toro 17-1140

Gas Tank Strap

$

$

Currently unavailable

3

Toro 222-16

GAS CAP

$

$

Not available

4

Toro 7-4600

Decal

$

$

Currently unavailable

5

Toro 12-4110

Decal Hood, Left (Model 57003)

$

$

Currently unavailable

Toro 12-4120

Decal Hood, Right (Model 57003)

Note: Not illustrated

$

$

Currently unavailable

Toro 12-4130

Decal Hood, Left (Model 57017)

Note: Not illustrated

$

$

Currently unavailable

Toro 12-4140

Decal Hood, Right (Model 57017)

Note: Not illustrated

$

$

Currently unavailable

6

Toro 221-417

Engine (Model 57003)

$

$

Currently unavailable

Toro 221-418

Engine (Model 57017)

Note: Not illustrated

$

$

Currently unavailable

7

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

8

Toro 12-4040

Decal, Engine Shroud (Model 57017)

$

$

Currently unavailable

9

Toro 3258-158

Round Head Screw

$

$

Currently unavailable

10

Toro 7-8180

Elbow

$

$

Not available

11

Toro 7-7260

Shut Off Valve

$

$

Currently unavailable

12

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

13

Toro 7-3983

Hose

$

$

Currently unavailable

14

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

15

Toro 7-7670

Spacer

$

$

Currently unavailable

16

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

18

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

19

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 7-3748

Engine Pulley

$

$

Currently unavailable

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 7-3887

ENGINE BELT

$

$

Not available

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 7-4310

Belt Retainer

$

$

Currently unavailable

25

Toro 7-5050

Belt Guide

$

$

Not available

26

Toro 7-3968

Spring Tension

$

$

Currently unavailable

27

Toro 3256-36

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

28

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

29

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

30

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 7-3766

Belt Guide

$

$

Currently unavailable

33

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

35

Toro 7-3682

Rod Grille Mount

$

$

Currently unavailable

36

Toro 12-3450

Grille

$

$

Currently unavailable

37

Toro 7-8000

Panel Grille

$

$

Currently unavailable

38

Toro 12-4260

Decal-Grille Panel

$

$

Currently unavailable

39

Toro 7-7290

Tray Gas Tank

$

$

Currently unavailable

40

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

41

Toro 17-1130

GAS TANK

$

$

Not available

42

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0
