57003 - Toro 25" Lawn Tractor (SN: 003000001 - 003999999) (1973) ELECTRICAL DIAGRAM Parts Diagram

25" Lawn Tractor

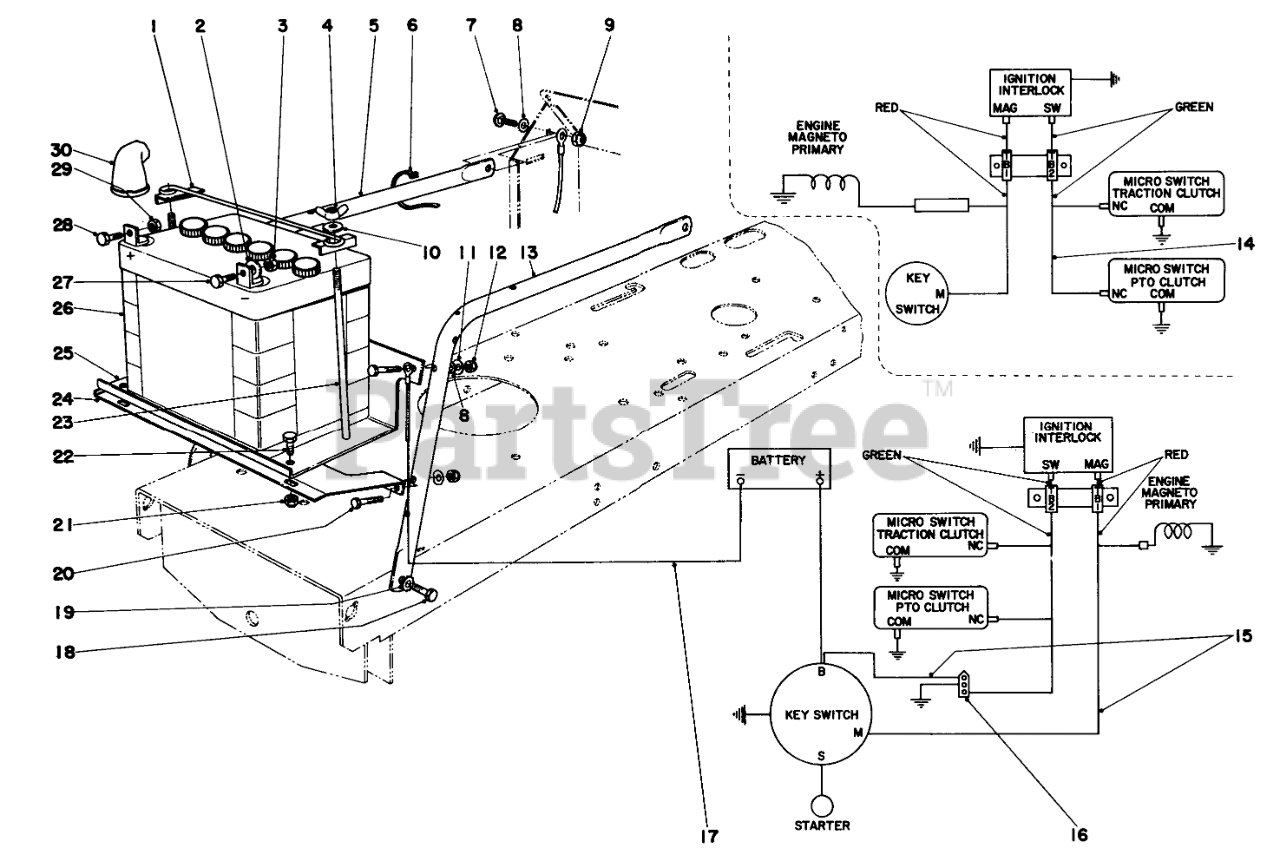

ELECTRICAL DIAGRAM Parts Diagram

  • Title
1

Toro 7-5000

Clamp

$

$

Not available

2

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

3

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

4

Toro 32103-19

WING NUT

$1.99

$

In Stock, only 2 left!

0

5

Toro 7-7390

Support Gas Tank, Right

$

$

Currently unavailable

6

Toro 7-3123

Cable Tie

$

$

Not available

7

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

8

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

9

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

12

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

13

Toro 7-7380

Support Gas Tank, Left

$

$

Currently unavailable

14

Toro 12-3440

Wire Harness (Model 57131)

$

$

Currently unavailable

15

Toro 12-3540

Wire Harness (Model 57017 Only)

$

$

Currently unavailable

16

Toro 12-3360

Socket Assembly (Model 57017 Only)

$

$

Currently unavailable

17

Toro 7-4080

Wire Assembly

$

$

Currently unavailable

18

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

19

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

20

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

22

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 7-3328

BATTERY BOLT

$

$

Currently unavailable

24

Toro 12-3390

Brace Battery Shelf (Model 57228)

$

$

Currently unavailable

25

Toro 12-3380

Shelf, Battery (Model 57228)

$

$

Currently unavailable

26

Toro 239-15

Battery
(Superseded to 26-7290)

$

$

Not available

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

30

Toro 218-331

BATTERY BOOT

$

$

Currently unavailable

Toro 7-6580

Battery Charger
(Superseded to 44-7250)

Note: Not illustrated

$182.99

$

Usually ships in 3-6 days

0

Toro 2210-126

Starter Rope

Note: Not illustrated

$

$

Currently unavailable
