57002 - Toro 25" Lawn Tractor (SN: 009000001 - 009999999) (1969) DIFFERENTIAL MODEL 120 Parts Diagram

25" Lawn Tractor

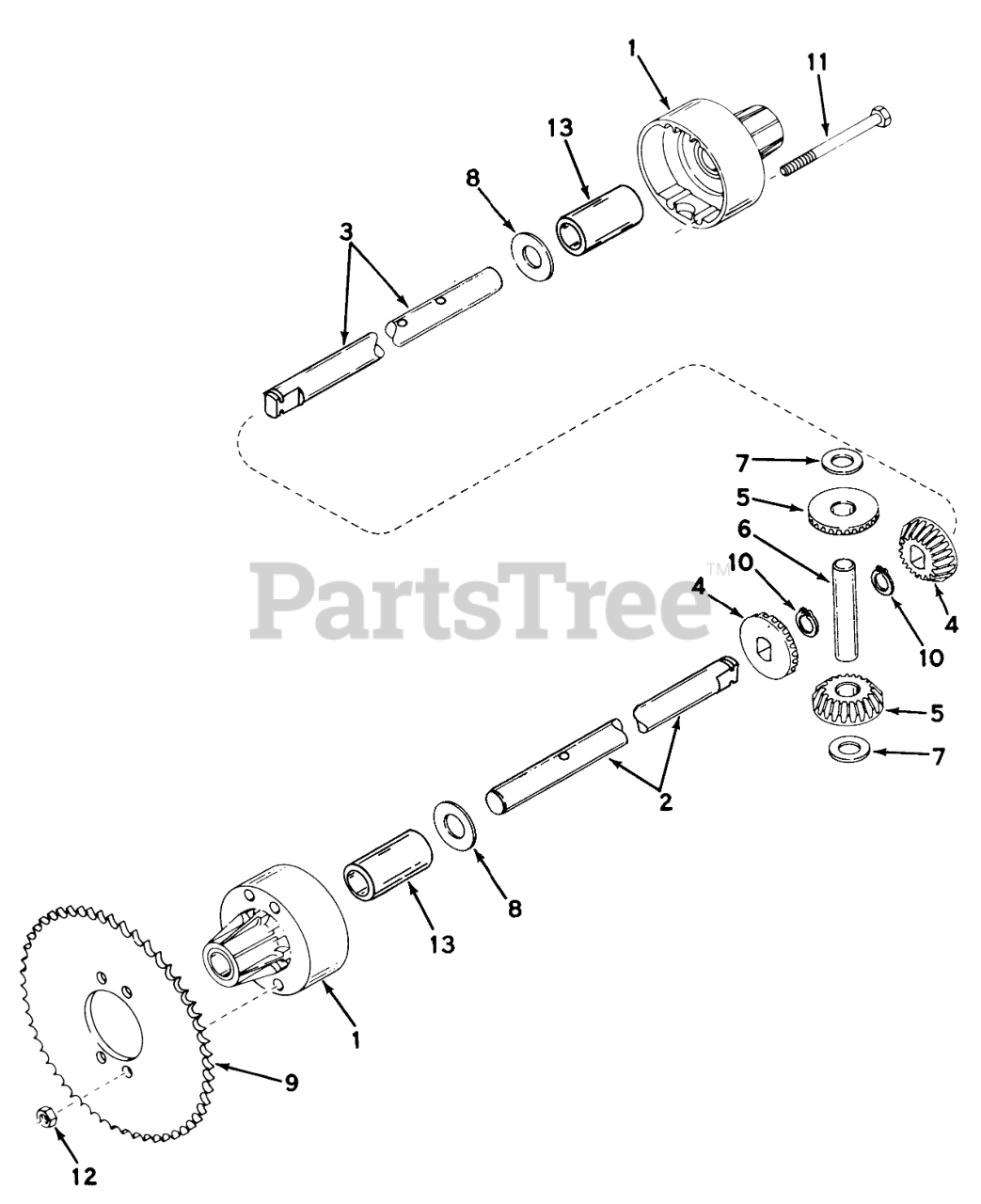

DIFFERENTIAL MODEL 120 Parts Diagram

  • Title
1

Toro 774073

Housing, Differential carrier (Incl. No. 13)

$

$

Currently unavailable

2

Toro 774149

Axle (827/32" long)

$

$

Currently unavailable

3

Toro 774150

Axle (13 23/32" long)

$

$

Currently unavailable

4

Toro 778067

Bevel Gear

$

$

Currently unavailable

5

Toro 778068

Gear Pinion

$

$

Currently unavailable

6

Toro 786040

Pin Drive

$

$

Currently unavailable

7

Toro 780073

Washer, Thrust

$

$

Currently unavailable

8

Toro 780001

Washer

$

$

Currently unavailable

9

Toro 786042

Sprocket (40 teeth)

$

$

Currently unavailable

10

Toro 788038

Snap Ring

$

$

Currently unavailable

11

Toro 792041

Screw-Hex Hd.

$

$

Currently unavailable

12

Toro 792042

Nut-Lock

$

$

Currently unavailable

13

Toro 780077

Bushing

$

$

Currently unavailable
