57001 - Toro 25" Lawn Tractor (SN: 008000001 - 008999999) (1968) FIGURE 8. HOOD, FENDER AND WHEEL GROUP Parts Diagram

25" Lawn Tractor

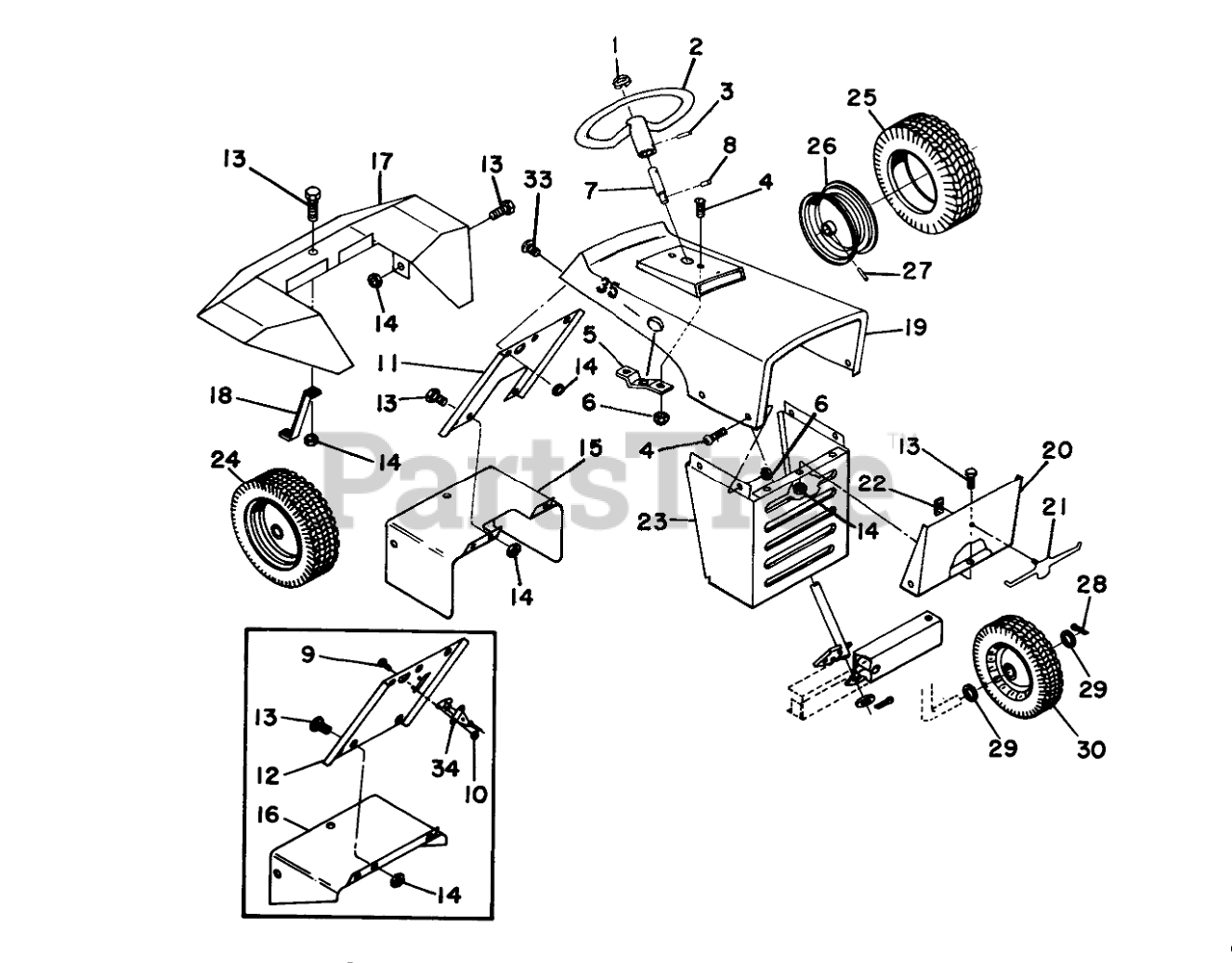

FIGURE 8. HOOD, FENDER AND WHEEL GROUP Parts Diagram

  • Title

1

Toro 7-0921

Steering Wheel Cap

$

$

Currently unavailable

2

Toro 7-0470

Steering Wheel

$

$

Currently unavailable

2

Toro 7-3232

Steering Wheel

$

$

Currently unavailable

3

Toro 32121-24

PIN-SPRING

$1.99

$

Usually ships in 3-6 days

0

4

3258-158(S

Screw

$

$

Not available

5

Toro 7-3215

Bracket

$

$

Currently unavailable

6

Toro 32152-1(s

Nut

$

$

Currently unavailable

7

Toro 7-3504

Extension, Shaft

$

$

Currently unavailable

8

Toro 32121-11

PIN-ROLL

$0.99

$

In Stock, only 2 left!

0

9

32122-43(S

Screw

$

$

Not available

10

Toro 32149-6

NUT-KEPS

$0.99

$

Usually ships in 3-6 days

0

11

Toro 7-3560

Hood Support Assy

$

$

Currently unavailable

12

Toro 7-3375

Hood Support Assy

$

$

Currently unavailable

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

32152-4(s

Nut

$

$

Not available

15

Toro 7-3225

Chain Guard

$

$

Currently unavailable

17

Toro 7-3216

Fender, Rear

$

$

Currently unavailable

18

Toro 7-3235

Support, Fender

$

$

Currently unavailable

19

Toro 7-3217

Hood

$

$

Currently unavailable

20

Toro 7-3451

Grille Panel

$

$

Currently unavailable

21

Toro 7-3441

Bullshead

$

$

Currently unavailable

22

Toro 3290-275

Timmerman Nut

$

$

Currently unavailable

23

Toro 7-3605

Grille Assembly

$

$

Currently unavailable

24

Toro 7-3183

Rear Tire and Wheel Assembly

$

$

Currently unavailable

25

231-49(S

Tire

$

$

Not available

Toro 232-27(S

Valve

$

$

Currently unavailable

26

Toro 217-84(S

Rim

$

$

Currently unavailable

27

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

27

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

28

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

29

Toro 7-0131

Washer
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 15

0

30

Toro 7-3220

Wheel
(Superseded to 20-3350)

Note: Ref. Num 30 Includes (2) 256-170 (s) Bearings and (1) 302-5 Zerk.

$

$

Not available

33

Toro 3258-157(S

Screw

$

$

Currently unavailable

34

Toro 7-3233

Throttle Control

$

$

Currently unavailable

35

Toro 256-137

Nyliner

$

$

Currently unavailable

1

Toro 2410-24(s

Plug Button

$

$

Currently unavailable

16

Toro 7-3236

Support, Hood

$

$

Currently unavailable
