57001 - Toro 25" Lawn Tractor (SN: 008000001 - 008999999) (1968) FIGURE 12. TRANSMISSION (THREE-SPEED) Parts Diagram

25" Lawn Tractor

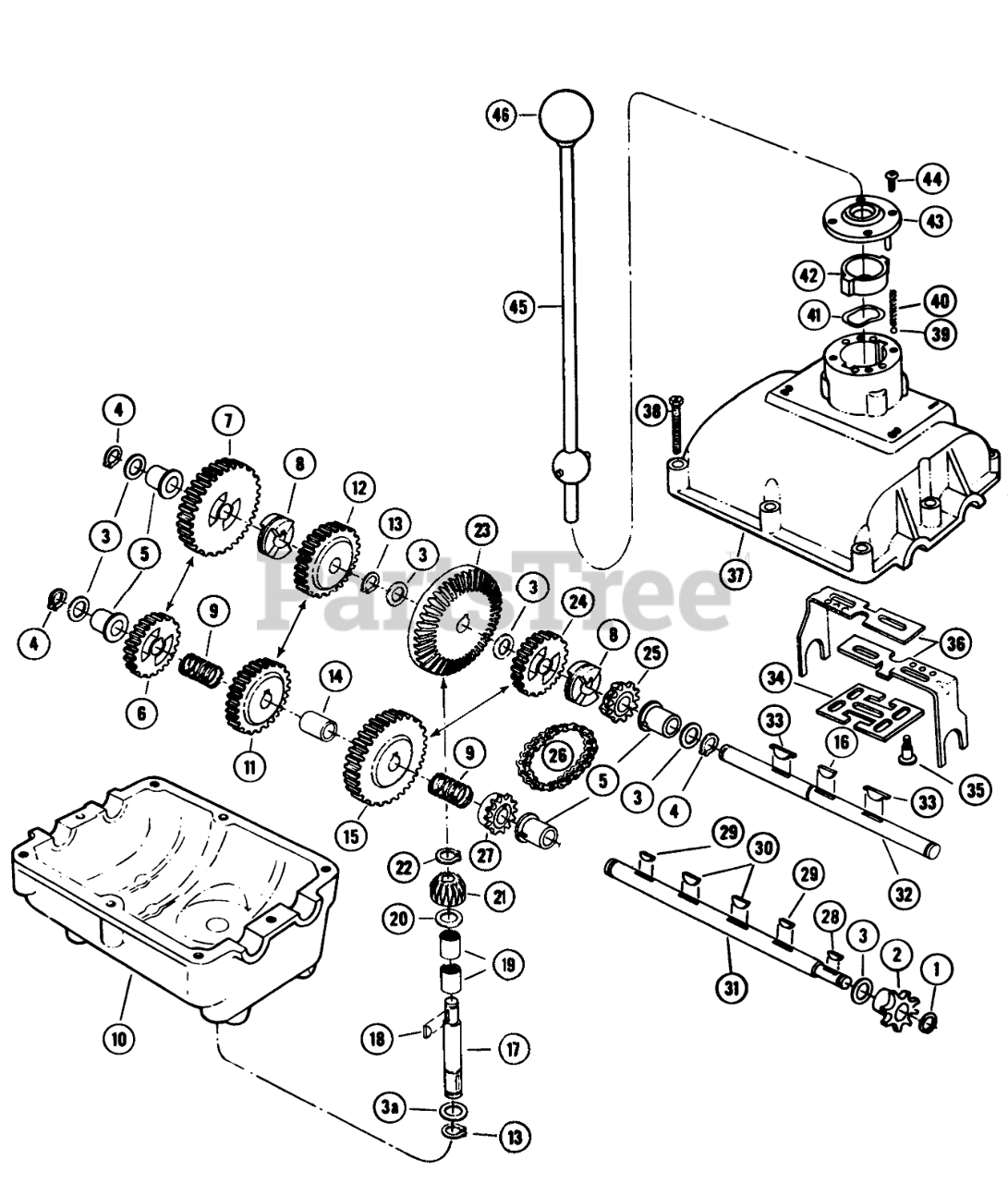

FIGURE 12. TRANSMISSION (THREE-SPEED) Parts Diagram

  • Title

1

Toro 32151-23S

Retaining Ring (#5108-50)

$

$

Currently unavailable

2

Toro 2119-453S

Sprocket

$

$

Currently unavailable

3

Toro 2119-454S

Washer (.030")

Note: Use thickness required

$

$

Currently unavailable

3

Toro 2119-455S

Washer (.040")

Note: Use thickness required

$

$

Currently unavailable

3

Toro 2119-456S

Washer (.050")

Note: Use thickness required

$

$

Currently unavailable

3a

Toro 2119-457S

Washer (.060")

$

$

Currently unavailable

4

Toro 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

5

Toro 2119-458S

Flange Bearing

$

$

Currently unavailable

6

Toro 2119-459S

20-T Gear (with keyway)

$

$

Currently unavailable

7

Toro 2119-460S

30-T Gear (without keyway)

$

$

Currently unavailable

8

Toro 2119-461S

Clutch Collar

$

$

Currently unavailable

9

Toro 2119-462S

Compression Spring

$

$

Currently unavailable

10

Toro 2119-463S

Lower Housing

$

$

Currently unavailable

11

Toro 2119-464S

Gear (with keyway)

$

$

Currently unavailable

12

Toro 2119-465S

Gear (without keyway)

$

$

Currently unavailable

13

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

14

Toro 2119-466S

Spacer

$

$

Currently unavailable

15

Toro 2119-467S

Gear (with keyway)

$

$

Currently unavailable

16

Toro 2119-468S

Key

$

$

Currently unavailable

17

Toro 2119-469S

Input Shaft

$

$

Currently unavailable

18

Toro 2119-470S

Key

$

$

Currently unavailable

19

Toro 2119-471S

Needle Bearing

$

$

Currently unavailable

20

Toro 2119-472S

Thrust Washer

$

$

Currently unavailable

21

Toro 2119-473S

Bevel Pinion

$

$

Currently unavailable

22

Toro 32120-3

Ring-Snap
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

23

Toro 2119-474S

Bevel Gear

$

$

Currently unavailable

24

Toro 2119-475S

Gear (without keyway)

$

$

Currently unavailable

25

Toro 2119-476S

Sprocket (without keyway)

$

$

Currently unavailable

26

Toro 2119-477S

Chain

$

$

Currently unavailable

27

Toro 2119-478S

Sprocket (with keyway)

$

$

Currently unavailable

28

Toro 2119-479S

Key

$

$

Currently unavailable

29

Toro 2119-480S

Key

$

$

Currently unavailable

30

Toro 2119-481S

Key

$

$

Currently unavailable

31

Toro 2119-482S

Output Shaft

$

$

Currently unavailable

32

Toro 2119-483S

Drive Shaft

$

$

Currently unavailable

33

Toro 2119-484S

Key (special)

$

$

Currently unavailable

34

Toro 2119-485S

Shifter Lock-Out Plate

$

$

Currently unavailable

35

Toro 2119-486S

Shoulder Screw

$

$

Currently unavailable

36

Toro 2119-487S

Shifter Fork

$

$

Currently unavailable

37

Toro 2119-488S

Upper Housing

$

$

Currently unavailable

38

Toro 2119-489S

Screw

$

$

Currently unavailable

39

Toro 2119-490S

Detent Ball

$

$

Currently unavailable

40

Toro 2119-491S

Detent Spring

$

$

Currently unavailable

41

Toro 2119-492S

Wave Washer

$

$

Currently unavailable

42

Toro 2119-493S

Nylon Insert

$

$

Currently unavailable

43

Toro 2119-494S

Nylon Cover

$

$

Currently unavailable

44

Toro 32122-20

OBSOLETE-USE 32122-42

$

$

Not available

45

Toro 2119-495S

Shifter Handle Assembly

$

$

Currently unavailable

46

Toro 2119-496S

Shifter Knob

$

$

Currently unavailable
