570 EPA - Husqvarna Chainsaw (2009-01) Clutch / Drum / Oiler Parts Diagram

Chainsaw

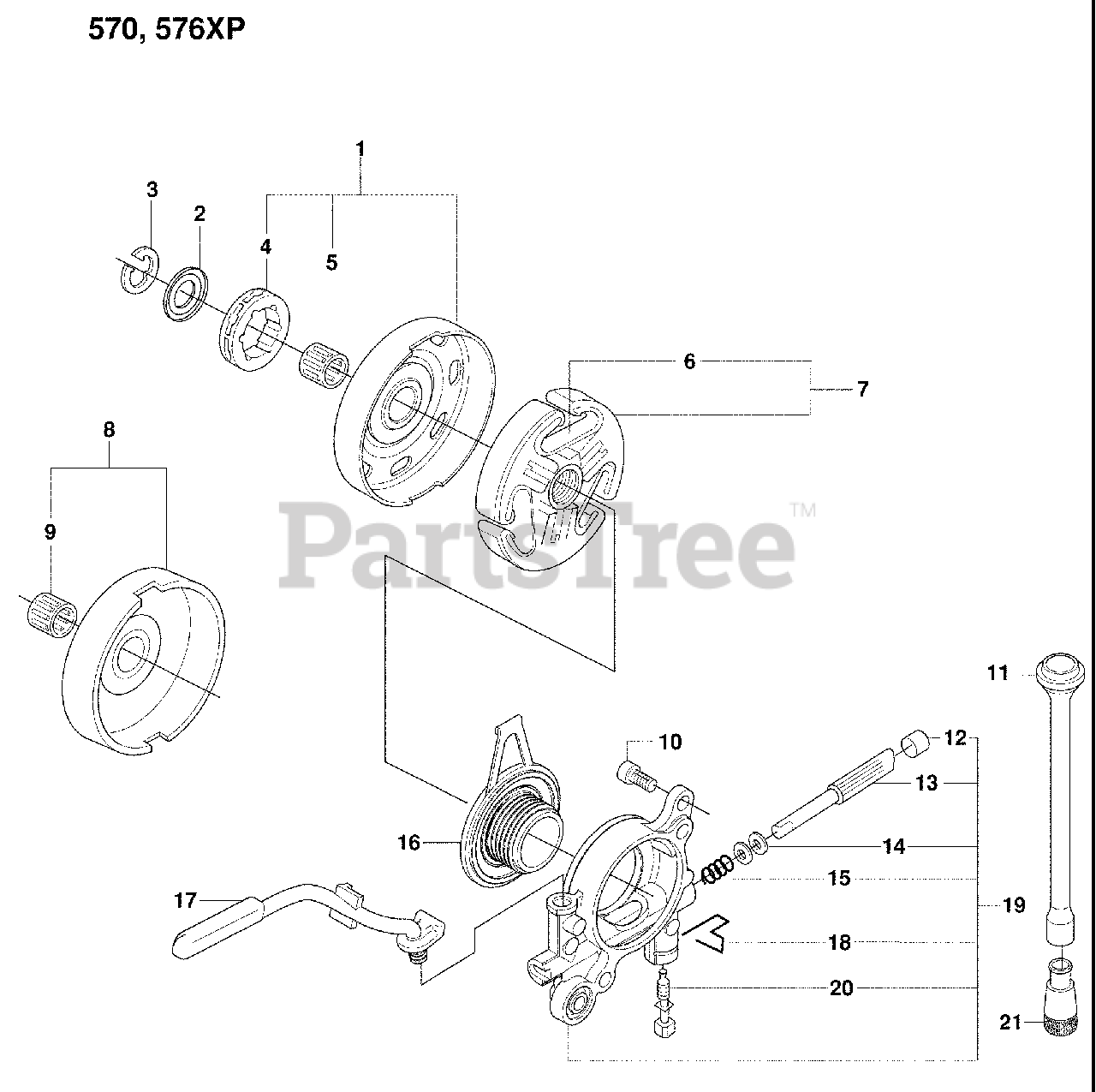

Clutch / Drum / Oiler Parts Diagram

  • Title

1

Husqvarna 502440402

Clutch Drum Assembly
(Superseded to 504547202)

Note: 3/8 x 7T

$51.99

$

Usually ships in 3-10 days

0

1

Husqvarna 502440403

Clutch Drum Assembly
(Superseded to 504547203)

Note: 3/8 x 8T

$51.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503752401

Washer

$6.49

$

In Stock, Qty 6

0

3

Husqvarna 503272101

Retaining Ring

$3.99

$

In Stock, Qty 14

0

4

Husqvarna 501598002

Rim
(Superseded to 640200215)

Note: 3/8 x 7T

$8.49

$

In Stock, Qty 5

0

4

Husqvarna 505303661

Power Mate Rim
(Superseded to 640200216)

Note: 3/8 x 8T

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503432001

Clutch Drum Bearing

$17.99

$

In Stock, only 4 left!

0

6

Husqvarna 537360601

Spring

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503744405

Clutch Assembly, M14 X 1.25-6H
(Superseded to 586798402)

$145.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503861703

Clutch Drum

$51.99

$

In Stock, only 1 left!

0

9

Husqvarna 503432001

Clutch Drum Bearing

$17.99

$

In Stock, only 4 left!

0

10

Husqvarna 503205301

Screw

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 501895301

Hose

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503624901

Plug

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503521501

Pump Piston

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503230004

Washer, 6.1 X 9

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 501615801

Spring

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 537207804

Pinion
(Superseded to 582270104)

$11.99

$

In Stock, Qty 8

0

17

Husqvarna 537209101

Hose

$13.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503813001

Spring Clip

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 503521303

Oil Pump
(Superseded to 503521305)

$109.99

$

In Stock, only 2 left!

0

20

Husqvarna 503811301

Screw

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 501544102

Oil Screen

$17.99

$

In Stock, only 2 left!

0
