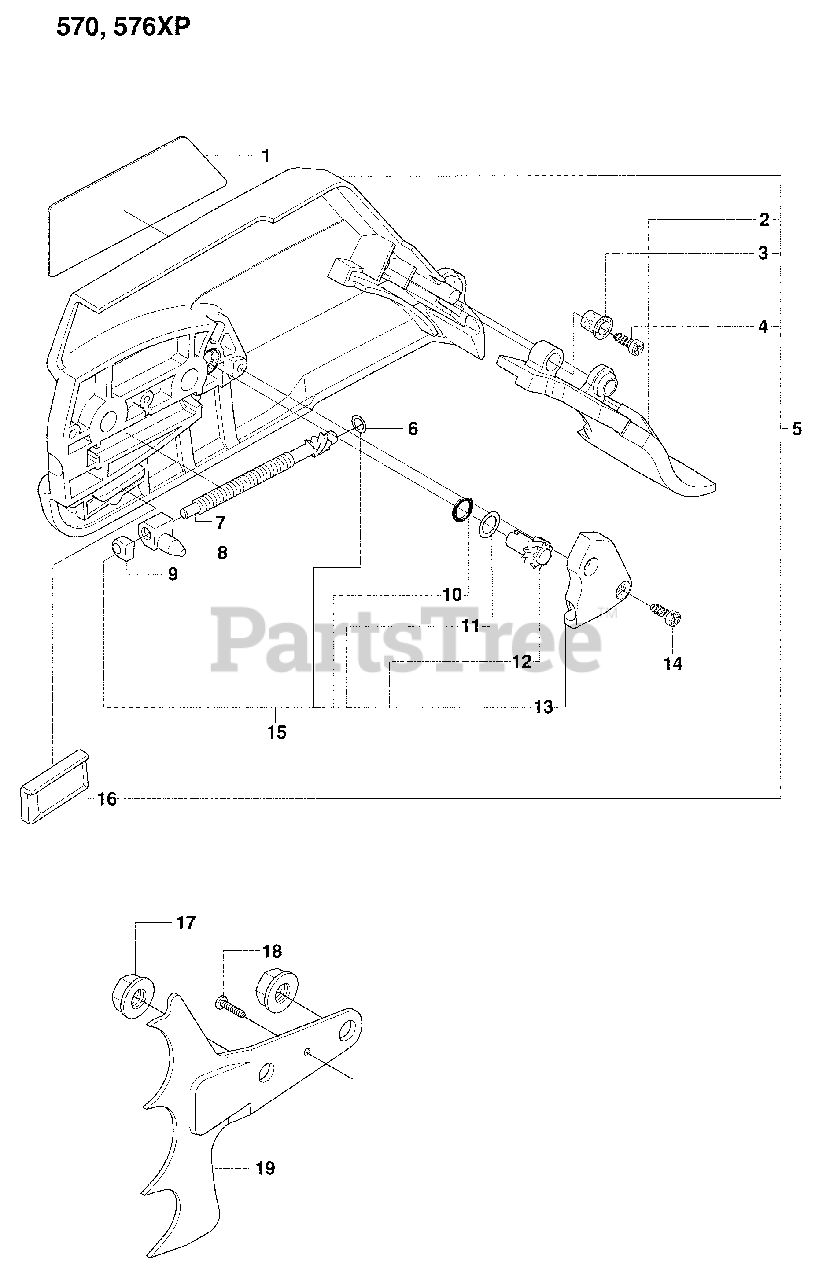

570 EPA - Husqvarna Chainsaw (2009-01) Clutch Cover Parts Diagram

Chainsaw

Clutch Cover Parts Diagram

  • Title

1

Husqvarna 537033803

Decal

$5.99

$

In Stock, Qty 8

0

2

Husqvarna 503762902

Protector

$24.99

$

In Stock, Qty 11

0

3

Husqvarna 503897001

Washer

$5.99

$

In Stock, only 4 left!

0

4

Husqvarna 503212810

Screw

$3.99

$

In Stock, Qty 11

0

5

Husqvarna 537033501

Chain Brake Cover

Note: 570 Orange

$65.77

$

Usually ships in 3-10 days

0

5

Husqvarna 537033504

Clutch Cover Assembly

Note: 576XP Silver

$96.99

$

In Stock, only 1 left!

0

6

Husqvarna 503230066

Washer

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 537079501

Worm Screw with Adjuster
(Superseded to 537079502)

$20.99

$

In Stock, only 1 left!

0

8

Husqvarna 503998301

Pawl

$11.99

$

In Stock, only 1 left!

0

9

Husqvarna 537017401

Sleeve

$6.49

$

In Stock, Qty 9

0

10

Husqvarna 740480702

O-Ring

$7.49

$

In Stock, only 4 left!

0

11

Husqvarna 503230063

Washer

$6.49

$

In Stock, only 3 left!

0

12

Husqvarna 537079401

Worm Wheel
(Superseded to 537079402)

$13.99

$

In Stock, only 2 left!

0

13

Husqvarna 537016801

Cover

$9.99

$

In Stock, only 2 left!

0

14

Husqvarna 503212810

Screw

$3.99

$

In Stock, Qty 11

0

15

Husqvarna 537044102

Chain Tensioner Kit

$60.99

$

In Stock, Qty 10

0

16

Husqvarna 501517201

Chain Guide

$8.99

$

In Stock, only 2 left!

0

17

Husqvarna 503220001

Flange Hex Nut, M8

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 503212810

Screw

$3.99

$

In Stock, Qty 11

0

19

Husqvarna 503719701

Felling Dog

$26.99

$

In Stock, only 1 left!

0
