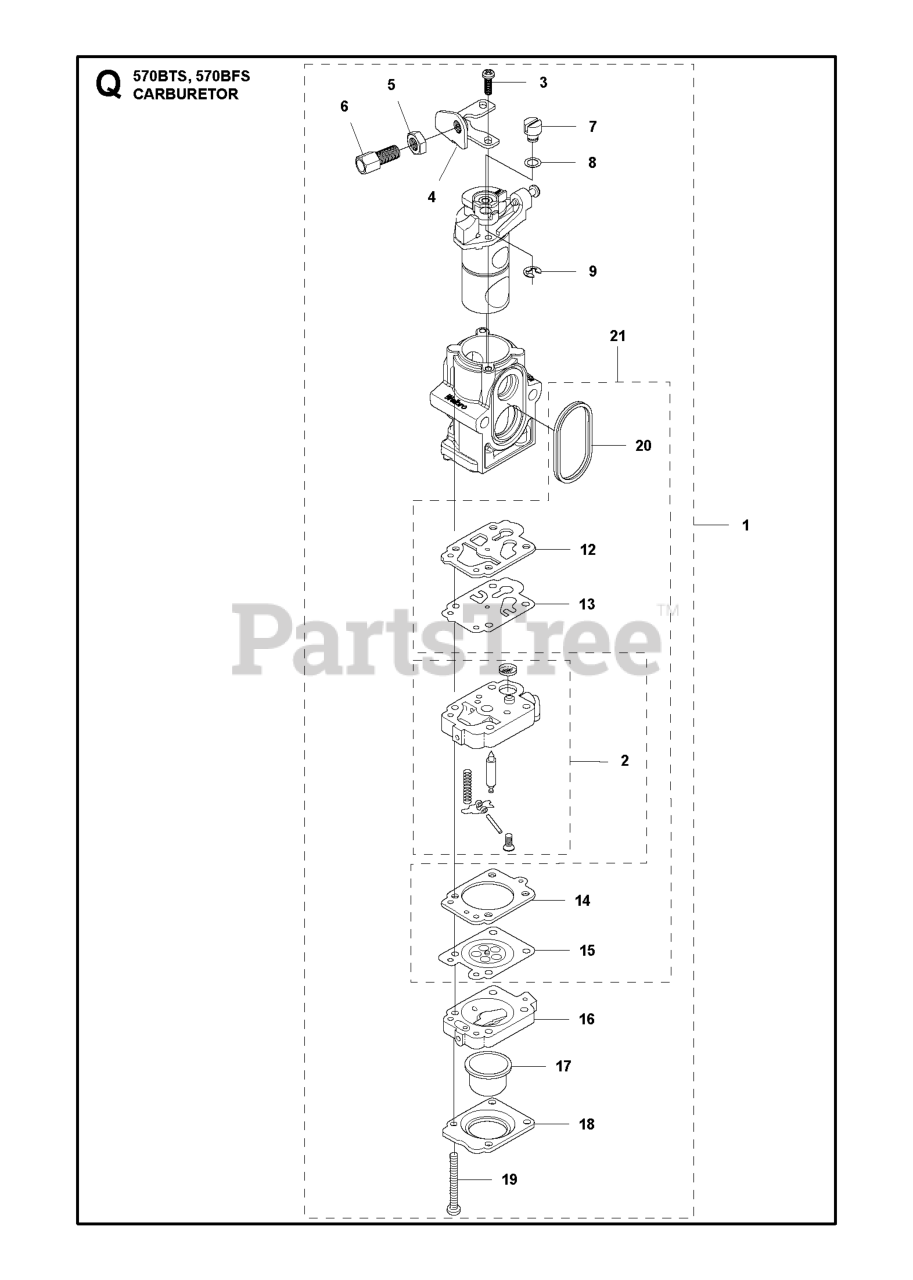

570 BTS (220628) - Husqvarna Backpack Blower (SN: 20190100001 & Above) CARBURETOR Parts Diagram

Backpack Blower

CARBURETOR Parts Diagram

  • Title

7

Husqvarna 506741201

SWIVEL

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 505306801

DIAPHRAGM

$18.99

$

Usually ships in 3-10 days

0

17

Husqvarna 505306701

PUMP

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 506746101

WASHER

$3.99

$

In Stock, only 1 left!

0

9

Husqvarna 506738601

RING

$2.49

$

Usually ships in 3-10 days

0

12

Husqvarna 506745101

GASKET

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506740901

BODY

$34.99

$

Usually ships in 3-10 days

0

1

Husqvarna 581156101

CARB

$87.99

$

In Stock, only 2 left!

0

4

Husqvarna 506746001

BRACKET

$10.99

$

In Stock, only 1 left!

0

20

Husqvarna 521631501

RING

$7.99

$

In Stock, Qty 7

0

3

Husqvarna 505307901

SCREW

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 506689801

DIAPHRAGM

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 506612601

NUT
(Superseded to 516524101)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506741301

ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 2 left!

0

19

Husqvarna 506741101

SCREW

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 506741001

1OVER

$6.49

$

In Stock, Qty 9

0

14

Husqvarna 506740801

GASKET

$10.99

$

In Stock, only 2 left!

0

21

Husqvarna 511459501

GASKET KIT

$53.99

$

Usually ships in 3-10 days

0

2

Husqvarna 544363501

BODY-A-PUMP

$74.99

$

Usually ships in 3-10 days

0
