570 (122-570-100) - Cub Cadet Walk-Behind Mower (1982) Throttle Control & Handle Panel Assemblies Parts Diagram

Walk-Behind Mower

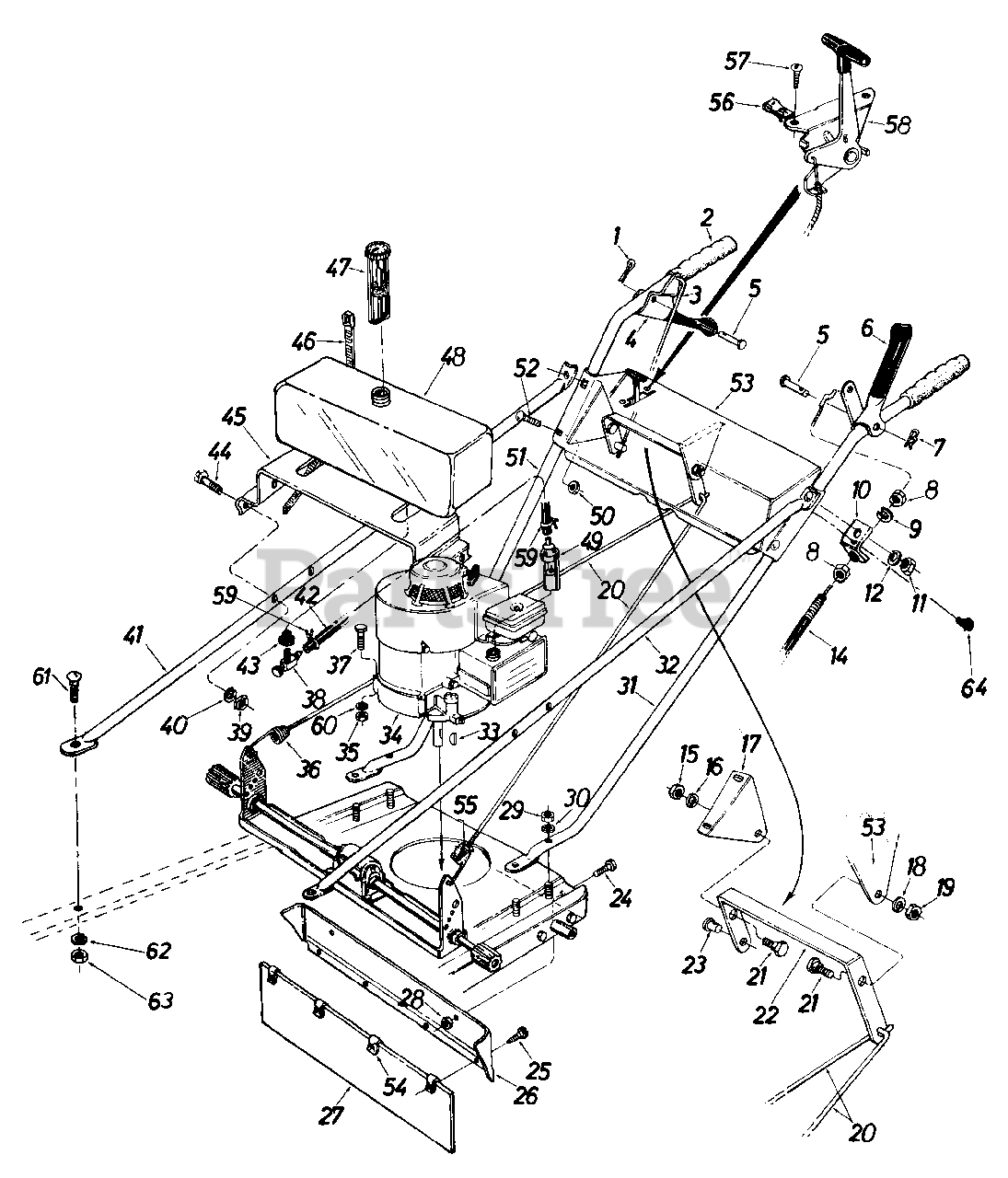

Throttle Control & Handle Panel Assemblies Parts Diagram

  • Title

1

Cub Cadet 714-0104

Hairpin Cotter 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 01166

Grip
(Superseded to 720-0204)

$13.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 747-0163

Clutch Rod

$

$

Not available

4

Cub Cadet 12921

Clutch Grip

$

$

Not available

5

Cub Cadet 711-0415

Clevis Pin .375 Dia. x 1.62 Lg

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 15333

Blade Clutch Grip Ass'y. - R.H.

Note: Code N

$

$

Currently unavailable

7

Cub Cadet 714-0115

Cotter Pin 1/8 Dia. x 1.00" Lg

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 15093

Clutch Cable Bracket

$

$

Not available

11

Cub Cadet 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?13

Cub Cadet 712-0599

Self-Tap Scr.

$

$

Currently unavailable

14

Cub Cadet 746-0453

Clutch Control Cable

Note: Code N

$

$

Currently unavailable

15

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

16

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 12571

Bracket

$

$

Currently unavailable

18

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

20

Cub Cadet 747-0162

Lockout Rod

$

$

Currently unavailable

21

Cub Cadet 738-0234

Shld. Bolt .500 Dia. x .294

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 12570

Link Bracket

$

$

Currently unavailable

23

Cub Cadet 711-0619

Adjustment Ferrule 1/4-20

$

$

Not available

24

Cub Cadet 710-0567

Hex Bolt 1/4-28 x .62 Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

25

Cub Cadet 710-0436

Hex 8-Tap Scr. #10 x .62 Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 12548

Drag Shield Adapter

$

$

Currently unavailable

27

Cub Cadet 735-0182

Drag Shield

$

$

Currently unavailable

28

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

30

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 749-0185

Handle - L.H. (Chrome)

$

$

Currently unavailable

32

Cub Cadet 749-0523

Strut Bar

Note: Code N

$

$

Currently unavailable

33

Cub Cadet 714-0365

#6 Hi-Pro Key 5/32 x 5/8 Dia.

$5.49

$

Usually ships in 3-6 days

0

34

Engine

$

$

Not available

35

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

36

Cub Cadet 732-0305

Extension Spring .96 O.D. x 2.12 Lg.

$

$

Not available

37

Cub Cadet 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 16

0

38

Cub Cadet 751-0171

Fuel Shut Off Valve
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

39

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

40

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 749-0523

Strut

Note: Code N

$

$

Currently unavailable

42

Cub Cadet 751-0173

Gas Hose - 12" Long
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

43

Cub Cadet 735-0149

Gas Tank Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

44

Cub Cadet 710-0158

Hex Bolt 5/16-24 x 1.25 Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 16

0

45

Cub Cadet 14426

Gas Tank Mounting Brkt.

$

$

Not available

46

Cub Cadet 726-0153

Cable Ties
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

47

Cub Cadet 723-0155

Fuel Gauge

$

$

Not available

48

Cub Cadet 751-0225

Fuel Tank

$

$

Not available

49

Cub Cadet 751-0297

Fuel Control Valve

$

$

Not available

50

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 749-0184

Handle - R.H. (Chrome)

$

$

Currently unavailable

52

Cub Cadet 710-0458

Carriage Bolt 5/16-18 x 1.75 Lg.

$4.49

$

In Stock, only 4 left!

0

53

Cub Cadet 15335

Handle Panel Ass'y.

Note: Code N

$

$

Currently unavailable

54

Cub Cadet 726-0150

Speed Nut #102
(Superseded to 926-0130)

$

$

Not available

55

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

56

Cub Cadet 712-0526

Speed Nut #10 I.D.

$

$

Not available

57

Cub Cadet 710-0224

Hex AB-Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 18

0

58

Cub Cadet 746-0378

Throttle Control Ass'y. Comp.

$

$

Not available

59

Cub Cadet 726-0183

Hose Clamp 3/8" I.D.

$

$

Not available

60

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

63

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tapping Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0
