570 (122-570-100) - Cub Cadet Walk-Behind Mower (1982) Deck, Chute Deflector and Belt Guard Cup Assemblies Parts Diagram

Walk-Behind Mower

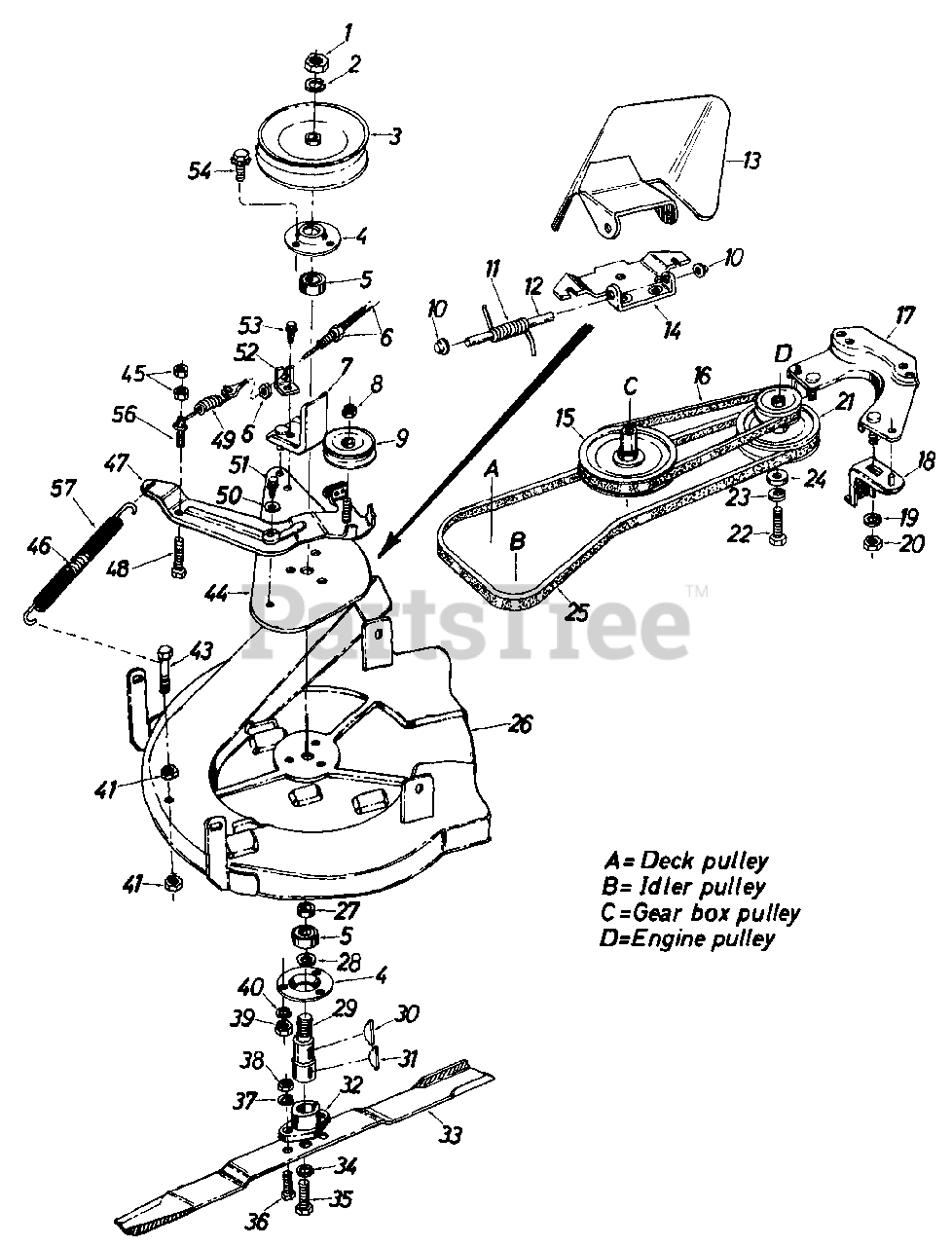

Deck, Chute Deflector and Belt Guard Cup Assemblies Parts Diagram

  • Title

1

Cub Cadet 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

2

Cub Cadet 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 756-0143

5/8 "V" Pulley - .63 I.D. x 7.00 O.D.

$

$

Not available

4

Cub Cadet 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

5

Cub Cadet 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

6

Cub Cadet 746-0453

Blade Clutch Control Cable

Note: (Includes Hex Nuts)

$

$

Currently unavailable

7

Cub Cadet 10426

Belt Keeper Ass'y.

$

$

Not available

8

Cub Cadet 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

9

Cub Cadet 756-0116

V-Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

10

Cub Cadet 726-0106

Push Nut 1/4 Rod

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-0261

Torsion Spring

$

$

Not available

12

Cub Cadet 711-0571

Hinge Pin

$

$

Not available

13

Cub Cadet 11634

Chute Deflector Ass'y.

$

$

Not available

14

Cub Cadet 11399

Adapter Plate

$

$

Not available

15

Cub Cadet 756-0155

Pulley 6 1/2" Dia. (Blade Drive Belt)

$

$

Not available

16

Cub Cadet 754-0143

3 V-Belt 28.0 Lg.

$

$

Not available

17

Cub Cadet 10423

Belt Guard Cup Ass'y.

$

$

Not available

18

Cub Cadet 10426

Belt Keeper

$

$

Not available

19

Cub Cadet 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 756-0154

Two-Step Engine Pulley

$

$

Not available

22

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.00 Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

23

Cub Cadet 736-0169

L-Wash. 3/8 I.D.

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0235

Fl-Wash. .38 I.D. x 1.25 O.D. x .157
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 16

0

25

Cub Cadet 754-0267

V-Belt - A Sec. x 59.0 Lg.
(Superseded to 954-0267)

$55.99

$

In Stock, only 3 left!

0

26

Cub Cadet 15324

Deck Ass'y. Comp.

Note: Code N

$

$

Currently unavailable

27

Cub Cadet 750-0142

Spacer - .84 I.D. x 1.00 O.D. x .32 Lg.
(Superseded to 950-0142)

$

$

Not available

28

Cub Cadet 736-0287

Fl-Wash. .793" I.D. x 1.240" O.D. x .060 Thk.

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 711-0405

Blade Spindle

$

$

Not available

30

Cub Cadet 714-0388

#6 Hi-Pro Key 3/16 x 5/8 Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

31

Cub Cadet 714-0365

#6 Hi-Pro Key 5/32 x 5/8 Dia.

$5.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 10769

Blade Adapter Kit

$

$

Not available

33

Cub Cadet 742-0147

26" Blade
(Superseded to 942-0147)

$

$

Not available

34

Cub Cadet 736-0217

L-Wash. 3/8" I.D. Heavy Duty

$4.49

$

In Stock, Qty 9

0

35

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50 Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

36

Cub Cadet 710-0117

Hex bolt 5/16-24 x 1.00 Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 5

0

37

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

39

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

43

Cub Cadet 710-0698

Hex Bolt 1/4-28 x 1.50 Lg.

$

$

Not available

44

Cub Cadet 12453

Deck Belt Guard Plate

$

$

Currently unavailable

45

Cub Cadet 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

46

Cub Cadet 732-0308

Extension Spring .50 O.D. x 6.37 Lg.
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

47

Cub Cadet 12469

Deck Idler Bracket Ass'y.

$

$

Not available

48

Cub Cadet 710-0698

Hex Bolt 1/4-28 x 1.50 Lg.

$

$

Not available

49

Cub Cadet 736-0387

Extension Spring .50 O.D. x 2.50 Lg.

$

$

Currently unavailable

50

Cub Cadet 736-0300

Fl-Wash. .40 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 710-0627

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 15343

Cable Support Bracket

Note: Code N

$

$

Currently unavailable

53

Cub Cadet 710-0627

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0322

Hex Sems Bolt 5/16-18 x 1.0 Lg.

$

$

Not available

56

Cub Cadet 750-0254

Spacer .28 I.D. x .62 O.D. x .55 Lg.

$

$

Not available

57

Cub Cadet 731-0339

Shrink Tube - .50 O.D. x 5.0" Lg.

$

$

Currently unavailable
