56B36D4K750 - Cub Cadet Tank Ride-On Sprayer/Spreader Kawasaki Engine Accessories Parts Diagram

Tank Ride-On Sprayer/Spreader

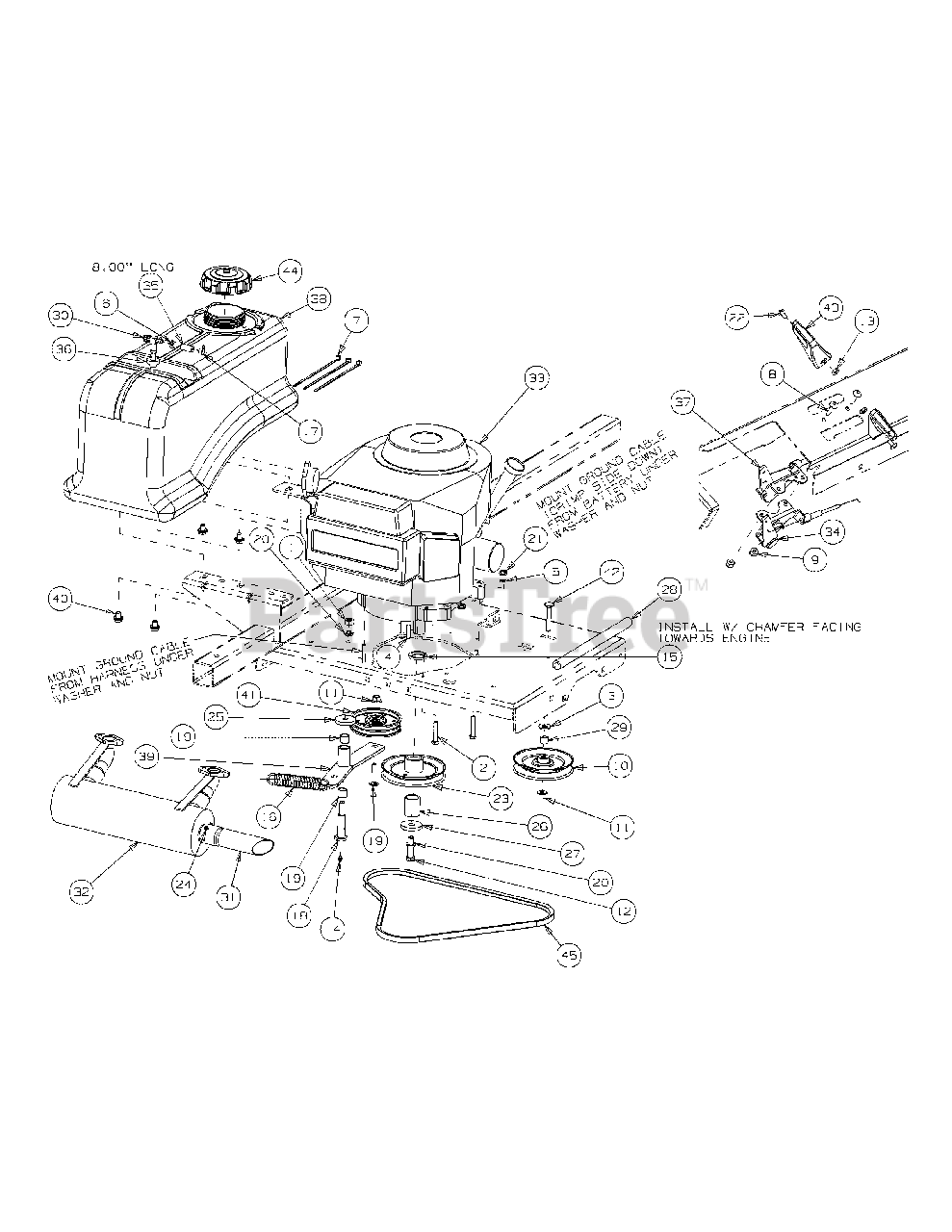

Kawasaki Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 912-3019

Nut Hex, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00006168

Flat Washer, 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00010022

Key, 1/4 x 1/4 x 1.125

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

7

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 00014602

Screw, Machine, 10-32 x 3/4

$

$

Not available

9

Cub Cadet 00014608

Nut, Lock, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

10

Cub Cadet 00021975

Idler Pulley

$74.99

$

In Stock, only 1 left!

0

11

Cub Cadet 00022560

Nut, Hex, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 00035193

Capscrew, 7/16-20 x 1.75

$

$

Not available

13

Cub Cadet 00060056

Nut, Washer, With Star, 8-32

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 737-04345

Fitting, Grease, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

15

Cub Cadet 00073094

Spacer, Engine Pulley

$14.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01000199

Spring, Extension, 1.0 OD x 5.0"

$17.99

$

In Stock, only 4 left!

0

17

Cub Cadet 01000215

Hose Clamp, SAE #4: 1/4-5/8, SS

$

$

Not available

18

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

19

Cub Cadet 710-0560

Bolt, Carriage, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 12

0

20

Cub Cadet 936-0171

Washer, Lock, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

21

Cub Cadet 712-3004A

Nut Lock, Hex Flange 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3217

Machine Screw, 8-32, .375

$6.99

$

In Stock, Qty 7

0

23

Cub Cadet 756-3060A

Pulley, Transmission Drive

$97.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-0148

Screw, 8-32 x 0.375

$4.49

$

In Stock, Qty 16

0

25

Cub Cadet 01003269

Washer, Flat, 7/16 ID x 1.75 OD
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

26

Cub Cadet 01003720

Spacer, 1.015 ID x 1.25 OD x 1.50

$

$

Not available

27

Cub Cadet 736-04131

Flat Washer, 7/16 ID x 1.75 OD

$15.99

$

In Stock, only 1 left!

0

28

Cub Cadet 01006223

Oil Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

29

Cub Cadet 01007312

Spacer, .625 OD x .385 ID x 1/2

$22.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01007425

Fuel Fitting
(Superseded to 751-12478)

$52.99

$

In Stock, only 2 left!

0

31

Cub Cadet 01008623

Tube, Exhaust Selxsys Muffler

$

$

Not available

32

Cub Cadet 01009233

Muffler Accessory Kawasaki

$

$

Not available

33

Cub Cadet KM-FH541V-BS31S

Engine, 17HP Kawasaki

$

$

Not available

34

Cub Cadet 02000645

Cable, Control 39.0 Throttle

$45.99

$

In Stock, only 2 left!

0

35

Hose, 1/4" Fuel Line

$

$

Not available

36

Cub Cadet 02002253

Fuel Tank Grommet

$4.99

$

In Stock, only 2 left!

0

37

Cub Cadet 02003422P

Choke Control Cable,

$131.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 02003842

Fuel Tank

$187.99

$

In Stock, only 1 left!

0

39

Cub Cadet 02004075

Engine Idler Arm Assembly Includes:

$

$

Not available

39

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, only 2 left!

0

40

Cub Cadet 02005013

HHCS, 3/8-16 x .500, Flange Whiz
(Superseded to 710-05412)

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

42

Cub Cadet 02005526

Carriage Bolt, 3/8-16 x 2.25
(Superseded to 710-06072)

$6.49

$

In Stock, only 1 left!

0

43

Cub Cadet 731-04914

Knob, Throttle Control

$13.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-3124E

Fuel Cap, 3.5

$36.99

$

In Stock, Qty 6

0

45

Cub Cadet 754-04212

Belt, Pump Drive

$39.99

$

Usually ships in 3-6 days

0

Cub Cadet KM-11013-7031

Air Filter

$26.99

$

In Stock, Qty 8

0

Cub Cadet KM-11013-7025

Pre-cleaner

$6.99

$

In Stock, only 4 left!

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49019-0707

Fuel Filter
(Superseded to KM-49019-0027)

$9.99

$

In Stock, Qty 20+

0

Cub Cadet TC-611049

Spark Plug

$4.99

$

In Stock, Qty 20+

0
