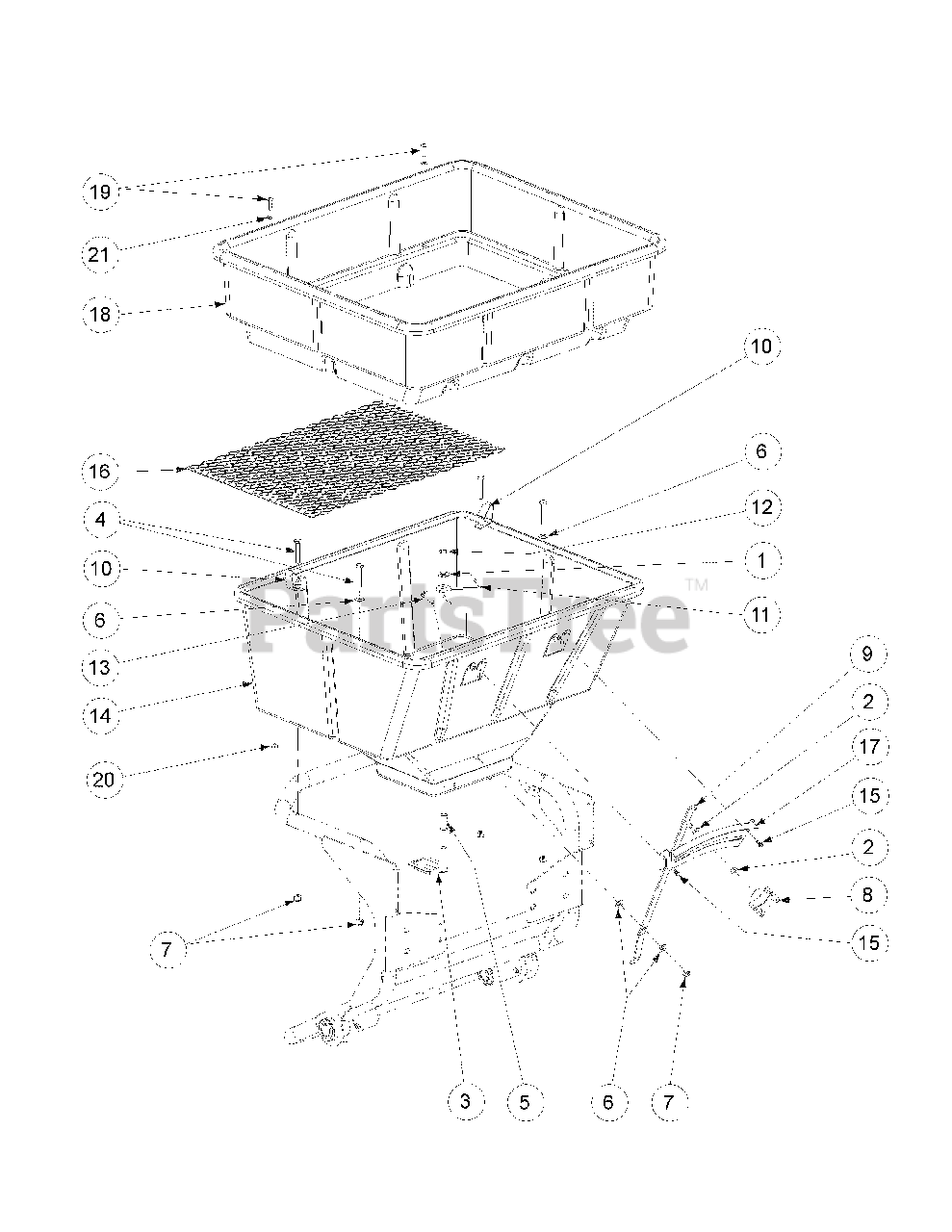

56B36D4K750 - Cub Cadet Tank Ride-On Sprayer/Spreader Hopper Assembly Parts Diagram

Tank Ride-On Sprayer/Spreader

Hopper Assembly Parts Diagram

  • Title
1

Cub Cadet 00005530

Washer, 3/8
(Superseded to 736-04070)

$

$

Not available

2

Cub Cadet 00018628

Washer, 1/4

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00030322

Cam Agitator Assembly
(Superseded to 680-00430)

$45.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00031167

Hex Cap Screw, 1/4-20 x 1.50
(Superseded to 710-06430)

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 00060027

Agitator Bearing
(Superseded to 741-05180)

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 00060033

Washer, 1/4, SS
(Superseded to 736-05152)

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-0324

Nut, 1/4-20, SS

$3.99

$

In Stock, Qty 16

0

8

Cub Cadet 00060043

Rate Control Knob

$13.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00060044

Rate Control Arm
(Superseded to 680-00407)

$45.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00060046

Screen Clip, SS
(Superseded to 703-10298)

$10.99

$

In Stock, only 2 left!

0

11

Cub Cadet 00060049

Agitator Arm Assembly
(Superseded to 680-00408)

$29.99

$

In Stock, only 4 left!

0

12

Cub Cadet 00060050

Spring Retainer Clip
(Superseded to 712-05144)

$8.99

$

In Stock, only 1 left!

0

13

Cub Cadet 00060057

Machine Screw, 1/4-20 x 7/8

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 02004176

80# Hopper

$

$

Not available

15

Cub Cadet 01005631

Screw, #8 x 3/8, SS
(Superseded to 710-06434)

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01010116

Screen, SS
(Superseded to 703-10305)

$89.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01006772

Rate Plate
(Superseded to 703-10302)

$35.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01009729

Hopper Extension

$219.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 00035678

Machine Screw, 10-24 x 3/4, SS

$

$

Not available

20

Cub Cadet 00070027

Nut, 10-24, SS

$

$

Not available

21

Cub Cadet 01005630

Washer, #8, SS
(Superseded to 736-05155)

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 777D09015

Decal, Front of Hopper

$

$

Not available
