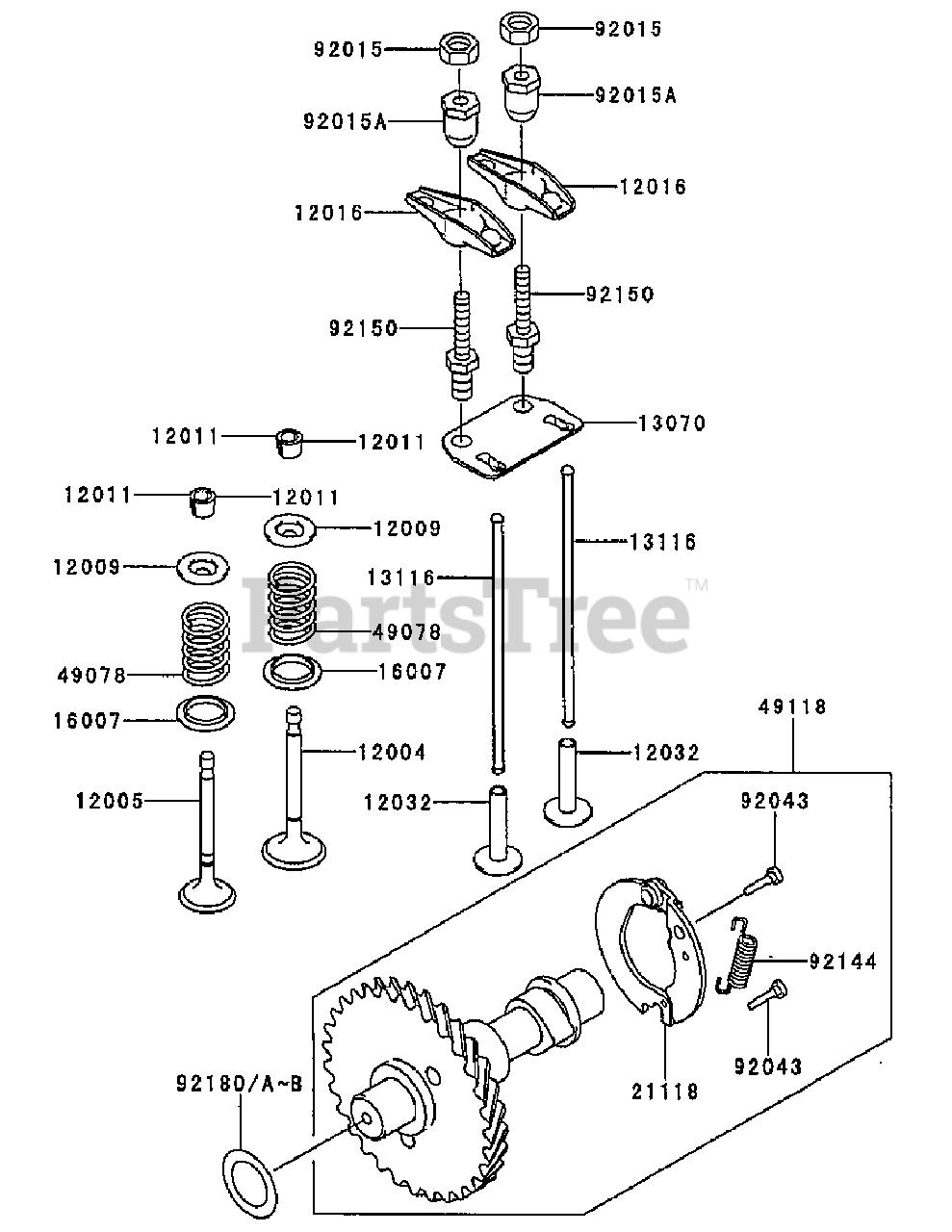

56A843VK750 - Cub Cadet Commercial Turf Renovator Kawasaki FE250D-AS09 Valve & Camshaft Parts Diagram

Commercial Turf Renovator

Kawasaki FE250D-AS09 Valve & Camshaft Parts Diagram

  • Title

12004

Cub Cadet KM-12004-2093

Valve-Intake

$27.99

$

Usually ships in 2-5 days

0

12005

Cub Cadet KM-12005-2081

Valve-Exhaust

$40.99

$

Usually ships in 2-5 days

0

12009

Cub Cadet KM-12009-2066

Retainer-Valve Spring

$3.49

$

Usually ships in 2-5 days

0

12011

Cub Cadet KM-12011-2056

Collet

$2.99

$

In Stock, Qty 20+

0

12016

Cub Cadet KM-12016-2060

Arm-Rocker

$4.49

$

In Stock, only 2 left!

0

12032

Cub Cadet KM-12032-2060

Tappet

$17.99

$

In Stock, only 2 left!

0

13070

Cub Cadet KM-13070-2086

Guide

$1.49

$

Usually ships in 2-5 days

0

13116

Cub Cadet KM-13116-2071

Rod-Push

$15.99

$

Usually ships in 2-5 days

0

16007

Cub Cadet KM-16007-2072

Seat-Spring

$0.99

$

Usually ships in 2-5 days

0

21118

Cub Cadet KM-21118-2087

Decompressor

$

$

Not available

49078

Cub Cadet KM-49078-2067

Spring-Engine valve

$4.49

$

Usually ships in 2-5 days

0

49118

Cub Cadet KM-49118-2108

Camshaft-Complete

$175.99

$

Usually ships in 2-5 days

0

92015

Cub Cadet KM-92015-2240

Nut

$0.99

$

In Stock, only 3 left!

0

92015A

Cub Cadet KM-92015-2253

Nut

$4.49

$

In Stock, only 4 left!

0

92043

Cub Cadet KM-92043-2113

Pin

$1.99

$

Usually ships in 2-5 days

0

92144

Cub Cadet KM-92144-2323

Spring-Engine valve

$3.99

$

Usually ships in 2-5 days

0

92150

Cub Cadet KM-92150-2198

Bolt

$3.49

$

In Stock, only 4 left!

0

92180

Cub Cadet KM-92180-2010

Shim, T = 0.3

Note: (AR)

$

$

Not available

92180A

Cub Cadet KM-92180-2011

Shim, T = 0.4

Note: (AR)

$2.99

$

Usually ships in 2-5 days

0

92180B

Cub Cadet KM-92180-2012

Shim, T = 0.5

Note: (AR)

$3.49

$

Usually ships in 2-5 days

0
