56A843VK750 - Cub Cadet Commercial Turf Renovator Kawasaki FE250D-AS09 Control Parts Diagram

Commercial Turf Renovator

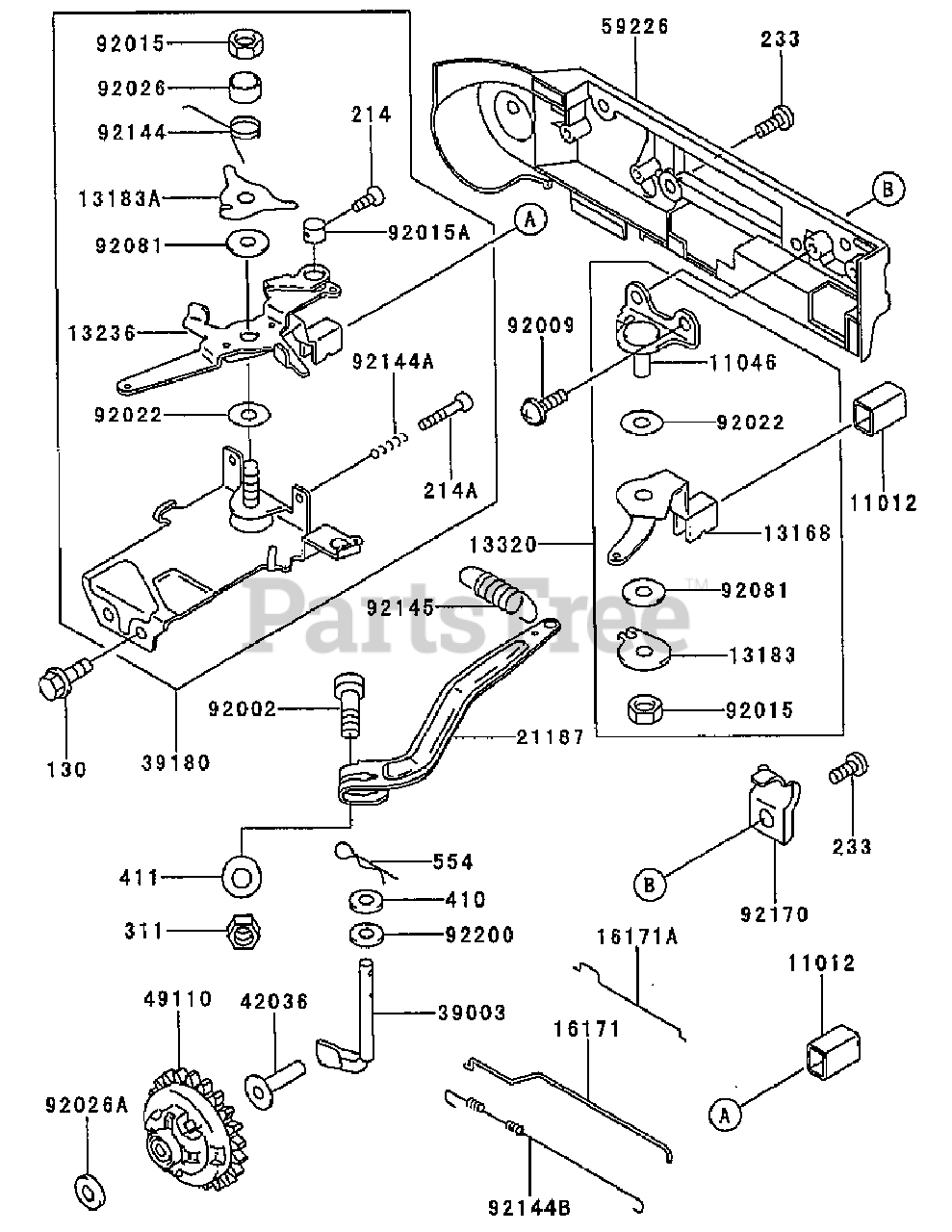

Kawasaki FE250D-AS09 Control Parts Diagram

  • Title

11012

Cub Cadet KM-11012-2282

Cap

$1.99

$

In Stock, only 2 left!

0

11046

Cub Cadet KM-11046-2143

Bracket

$4.99

$

Usually ships in 2-5 days

0

13168

Cub Cadet KM-13168-2314

Lever

$3.49

$

Usually ships in 2-5 days

0

13183

Cub Cadet KM-13183-2334

Plate

$

$

Not available

13183A

Cub Cadet KM-13183-2343

Plate

$2.49

$

Usually ships in 2-5 days

0

13236

Cub Cadet KM-13236-2116

Lever-Complete

$9.99

$

Usually ships in 2-5 days

0

13320

Cub Cadet KM-13320-2021

Lever Assy

$10.99

$

Usually ships in 2-5 days

0

16171

Cub Cadet KM-16171-2063

Link

$6.99

$

Usually ships in 2-5 days

0

16171A

Cub Cadet KM-16171-2064

Link

$4.49

$

Usually ships in 2-5 days

0

21187

Cub Cadet KM-21187-2061

Arm-Assy

$6.99

$

Usually ships in 2-5 days

0

39003

Cub Cadet KM-39003-2076

Arm-Pivot

$8.49

$

Usually ships in 2-5 days

0

39180

Cub Cadet KM-39180-2643

Panel-Assy-Control

$

$

Currently unavailable

42036

Cub Cadet KM-42036-2060

Sleeve

$4.99

$

In Stock, Qty 11

0

49110

Cub Cadet KM-49110-2069

Governor- Assy
(Superseded to KM-49110-2085)

$

$

Not available

59226

Cub Cadet KM-59226-2229

Panel-Control

$18.99

$

Usually ships in 2-5 days

0

92002

Cub Cadet KM-92002-2269

Bolt

$1.99

$

In Stock, Qty 6

0

92009

Cub Cadet KM-92009-2203

Screw

$0.99

$

In Stock, only 3 left!

0

92015

Cub Cadet KM-92015-1339

Nut

$1.99

$

In Stock, only 1 left!

0

92015A

Cub Cadet KM-92015-2120

Nut

$5.49

$

Usually ships in 2-5 days

0

92022

Cub Cadet KM-92022-2103

Washer

$1.99

$

In Stock, only 3 left!

0

92026

Cub Cadet KM-92026-2304

Spacer

$1.49

$

Usually ships in 2-5 days

0

92026A

Cub Cadet KM-92200-2036

Spacer

$1.49

$

In Stock, Qty 13

0

92081

Cub Cadet KM-92081-2104

Spring

$0.99

$

In Stock, only 3 left!

0

92144

Cub Cadet KM-92144-2257

Spring

$1.99

$

In Stock, only 1 left!

0

92144A

Cub Cadet KM-92144-2266

Spring

$5.49

$

Usually ships in 2-5 days

0

92144B

Cub Cadet KM-92144-2279

Spring

$5.49

$

Usually ships in 2-5 days

0

92145

Cub Cadet KM-92145-2054

Spring

$3.49

$

Usually ships in 2-5 days

0

92170

Cub Cadet KM-92170-2035

Clamp

$3.49

$

Usually ships in 2-5 days

0

92200

Cub Cadet KM-92200-2029

Washer, 6.5 X 11.5 X 2.0

$0.99

$

In Stock, only 2 left!

0

130

Cub Cadet KM-130G0612

Bolt-Flanged
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

214

Cub Cadet KM-214B0408

Screw-Pan
(Superseded to KM-214AA0408)

$3.99

$

In Stock, Qty 5

0

214A

Cub Cadet KM-214B0422

Screw-Pan

$

$

Not available

233

Cub Cadet KM-233C0514

Screw-Pan-WP

$0.99

$

In Stock, Qty 7

0

311

Cub Cadet KM-311B0600

Nut-Hex
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 16

0

140

Cub Cadet KM-410B0600

W-Plain-S

$

$

Not available

144

Cub Cadet KM-411B0600

Washer-Plain
(Superseded to KM-411AA0600)

$4.49

$

In Stock, only 2 left!

0

554

Cub Cadet KM-554A0600

Pin-Snap

$

$

Not available
