56A843VK750 - Cub Cadet Commercial Turf Renovator Hopper Lift Assembly Parts Diagram

Commercial Turf Renovator

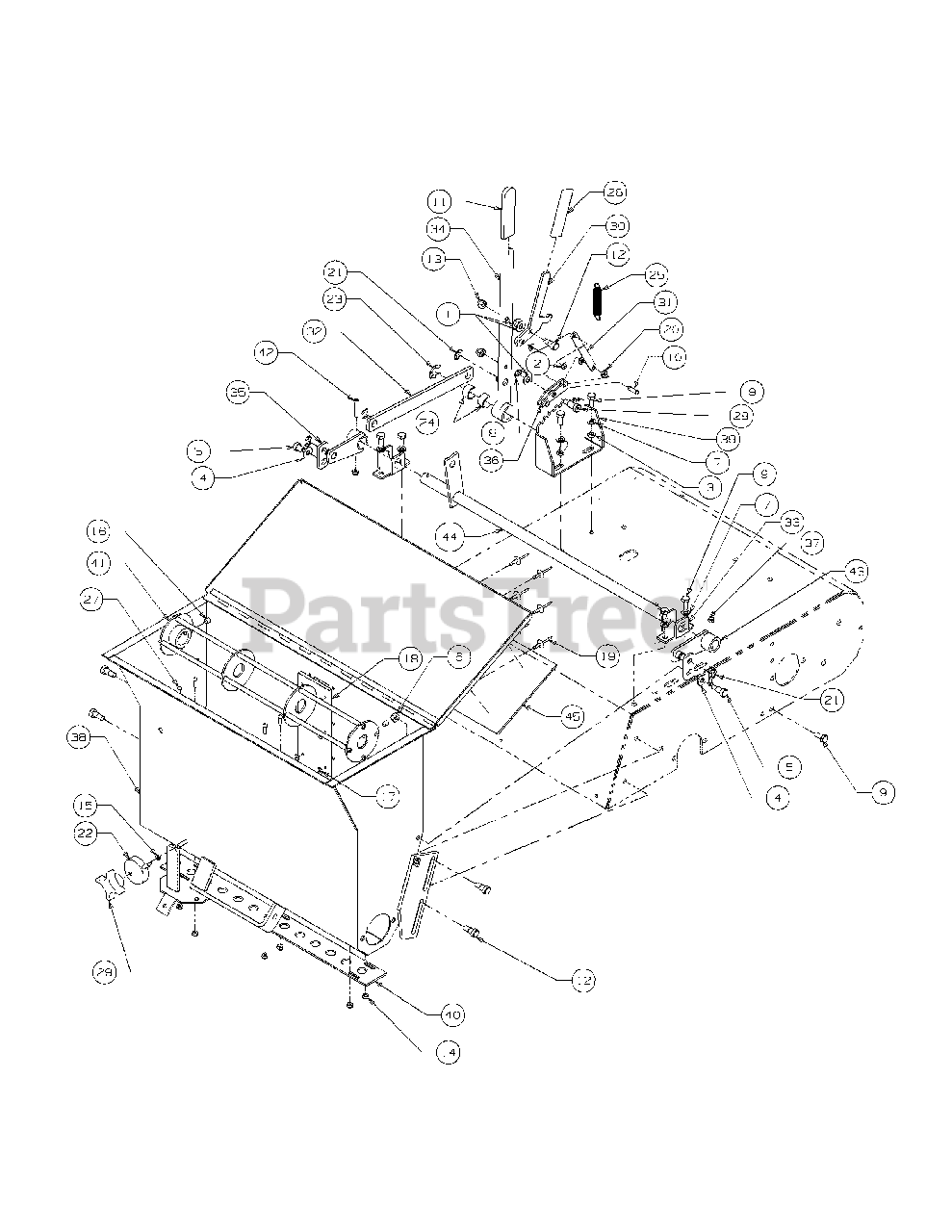

Hopper Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 00005530

Flat Washer, Nylon, 3/8
(Superseded to 736-04070)

$

$

Not available

2

Cub Cadet 00010171

Retainer Clip, "C"
(Superseded to 726-05073)

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00011075

Flat Washer, 5/16

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 00012160

Socket Shoulder Bolt, 3/8 x 12

$

$

Not available

6

Cub Cadet 912-0429

Nylock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 00012169

Flat washer, 5/16

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 00012179

Hex Cap Screw, 5/16-18 x 3/4

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 00012609

Clevis Pin, 1/4 x 3/4

$

$

Not available

11

Cub Cadet 00013595

Grip, .250 x 1.0 x 4

$9.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 00013733

Shoulder Bolt, 3/8 x 3/8

$

$

Not available

13

Cub Cadet 00014561

Acorn Nut, 5/16-18

$

$

Not available

14

Cub Cadet 00014608

Lock Nut, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

15

Cub Cadet 00016044

Flat Washer, 1/4

$

$

Not available

16

Cub Cadet 00016358

Cap Screw, 5/16-18 x 5/16

$

$

Not available

17

Cub Cadet 00016771

Flat Washer, 3/16

$

$

Not available

18

Cub Cadet 00017597

Clear Plate

$

$

Not available

19

Cub Cadet 00017732

POP Rivet, 3/16

$

$

Not available

20

Cub Cadet 00018628

Nylon Washer, 1/4

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 00019795

E-Ring, 1/2"

$

$

Not available

22

Cub Cadet 00021826

Hopper Dial Assembly

Note: NLA

$

$

Not available

23

Cub Cadet 00021961

E-Ring, Retainer

$11.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-04333

Sintered Bearing

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 00030020

Spring Reel Enlargement

$13.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 00030899

Grip, 3.5"

$

$

Not available

27

Cub Cadet 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 00031885

Shoulder Bolt, 3/8 x 5/8

$5.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 00060043

Knob Control Rate

$13.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 00082159

Hopper Lift, Pivot Assembly

$

$

Not available

31

Cub Cadet 00082292

Hopper Lift, Link, Short

$

$

Not available

32

Cub Cadet 00082300

Hopper Lift, Link, Long

Note: NLA

$

$

Not available

33

Cub Cadet 00082743

Hopper Assembly, Lift Support

$

$

Not available

34

Cub Cadet 00083477

Hopper Lift, Handle Assembly Bearing

$

$

Not available

35

Cub Cadet 00083661

Hopper Lift, Link

$

$

Not available

36

Cub Cadet 00084102

Hopper Lift, Latch Assembly

$

$

Not available

37

Cub Cadet 712-0161

Nylon Lock Nut, #10-24

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 02004208

Hopper Assembly Cover

$

$

Not available

39

Cub Cadet 01002352-0637

Hopper Lift, Bracket Assembly

$

$

Not available

40

Cub Cadet 01002365-0637

Metering Bar Assembly

$

$

Not available

41

Cub Cadet 01002367-0637

Agitator Assembly

$

$

Not available

42

Cub Cadet 01003133

Socket Screw, #10-24 x 1.25

$3.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 01007917

Hopper Lift, Arm Assembly

$

$

Not available

44

Cub Cadet 01007925

Hopper Lift Assembly

$

$

Not available

45

Cub Cadet 00031742

Step, 6'' Roll Saftey Adhesive

$

$

Not available
