Commercial Turf Renovator

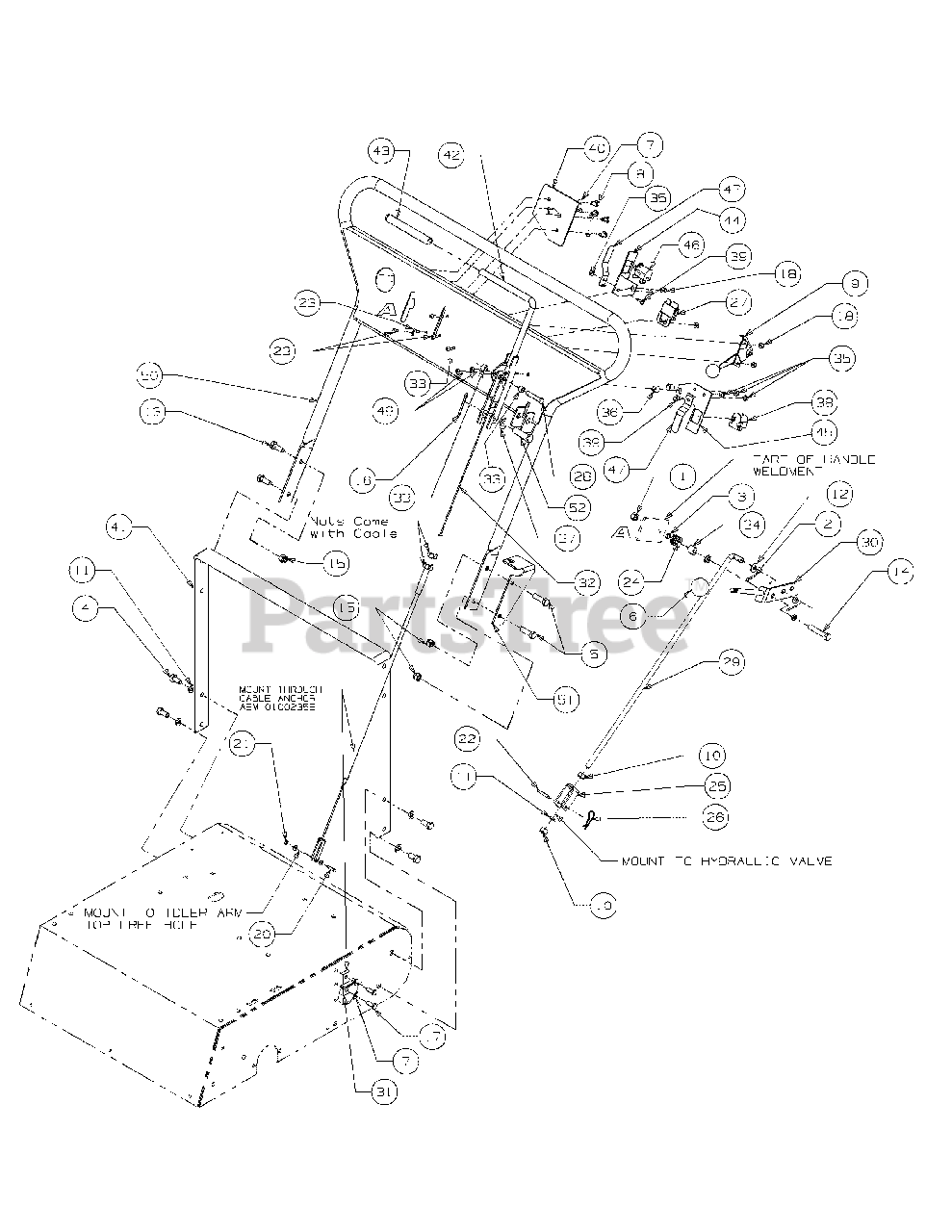

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 914-0474

Cotter Pin, 1/8 x 3/4
(Superseded to 714-0474)

$

$

Not available

3

Cub Cadet 00011075

Flat Washer, 5/16

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3119

Hex Cap Screw, 3/8-16 x 3/4

$6.99

$

In Stock, only 1 left!

0

5

Cub Cadet 00011444

Hex Cap Screw, 3/8-16 x 1 1/4

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet 00012118

Knob, 1-3/8 x 1-19/64, 3/8-24

$

$

Not available

7

Cub Cadet 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 9

0

8

Cub Cadet 710-3013

Hex Cap Screw, 1/4-20 x 1/2

$4.99

$

In Stock, Qty 11

0

9

Cub Cadet 00012149

Engine Throttle Cable

Note: NLA

$

$

Not available

10

Cub Cadet 00012156

Hex Nut, 3/8-24

$

$

Not available

11

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

13

Cub Cadet 00012171

Hex Cap Screw, 3/8-16 x 1

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 00012172

Hex Cap Screw, 3/8-16 x 2
(Superseded to 710-3096)

$7.99

$

In Stock, only 1 left!

0

15

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 00012380

Cotter Pin, 5/32 x 1-1/2

$

$

Not available

17

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20, .75

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 00014608

Lock Nut, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

19

Cub Cadet 00014624

Splice Clip (not shown)

$

$

Not available

20

Cub Cadet 00014630

Clevis Pin, 3/16 x 3/4

$

$

Not available

21

Cub Cadet 00016771

Flat Washer, 3/16

$

$

Not available

22

Cub Cadet 00017568

Clevis Pin, 3/16 x 1-1/4

$

$

Not available

23

Cub Cadet 00017778

Round Head Mach. Screw, 10-32 x 1/2

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet 00021797

Spring, .850 OD x 1

$9.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 00021837

Clevis, Shift

$

$

Not available

26

Cub Cadet 00021956

3/8"-1/2" Hair Pin
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 00030585

Module Volt Sensor

$

$

Not available

28

Cub Cadet 00032153

Clevis Pin, 5/16 x 1-5/8

$

$

Not available

29

Cub Cadet 00033601

Shift Lever Rod

$31.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 00033746

Direction Control Lever

$73.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 00035104

Cable Anchor Assembly

$

$

Not available

32

Cub Cadet 00036730

Control Cable Adjustment Blade
(Superseded to 00036730P)

$223.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 00062715

Turnbuckle Sleeve

$18.99

$

In Stock, only 1 left!

0

34

Cub Cadet 00076730

Sleve Spring, 32/36/48

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 712-0161

Nylon Lock Nut, #10-24

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 01000799

Spacer, .265 x .500 x .562

$9.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 936-0160

Flat Washer, .536 ID x .930 OD x .05

$4.49

$

In Stock, only 1 left!

0

38

Cub Cadet 01001717

Snap Mounting Switch, NC
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

39

Cub Cadet 01001864

Hex Index Washer Screw, #10-24
(Superseded to 1767754)

$

$

Not available

40

Cub Cadet 01005907

Mounting Plate Valve

$

$

Not available

41

Cub Cadet 00030011

Lower Handle

$

$

Not available

42

Cub Cadet 01005453

Slicer Control Lever

$94.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 01005459

Sleeve, 1/2" ID x 5.00" Long

Note: NLA

$

$

Not available

44

Cub Cadet 01008063

Safety Switch Bracket

$10.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 01008064

Slicer Safety Switch Bracket

$

$

Not available

46

Cub Cadet 01008028

Snap Mounting Switch, NO
(Superseded to 925-3167)

$14.99

$

In Stock, only 2 left!

0

47

Cub Cadet 732-04200

Retainer Spring

$10.99

$

In Stock, Qty 7

0

48

Cub Cadet 01008046

Pan Head Machine Screw, 10-24 x 3/4

$

$

Not available

49

Cub Cadet 01008057

Wire Harness

$

$

Not available

50

Cub Cadet 01008066

Handle Assembly

$281.99

$

In Stock, only 1 left!

0

51

Cub Cadet 01008098

Lower Handle Slicer Bracket

$

$

Not available

52

Cub Cadet 711-04997

Clevis Pin, .500 DIA. x 1.75 LG.

$

$

Not available
