56A703QS750 - Cub Cadet 300 Gallon Sprayer (2011) Pump & Engine Assembly - 300 Gallon Parts Diagram

300 Gallon Sprayer

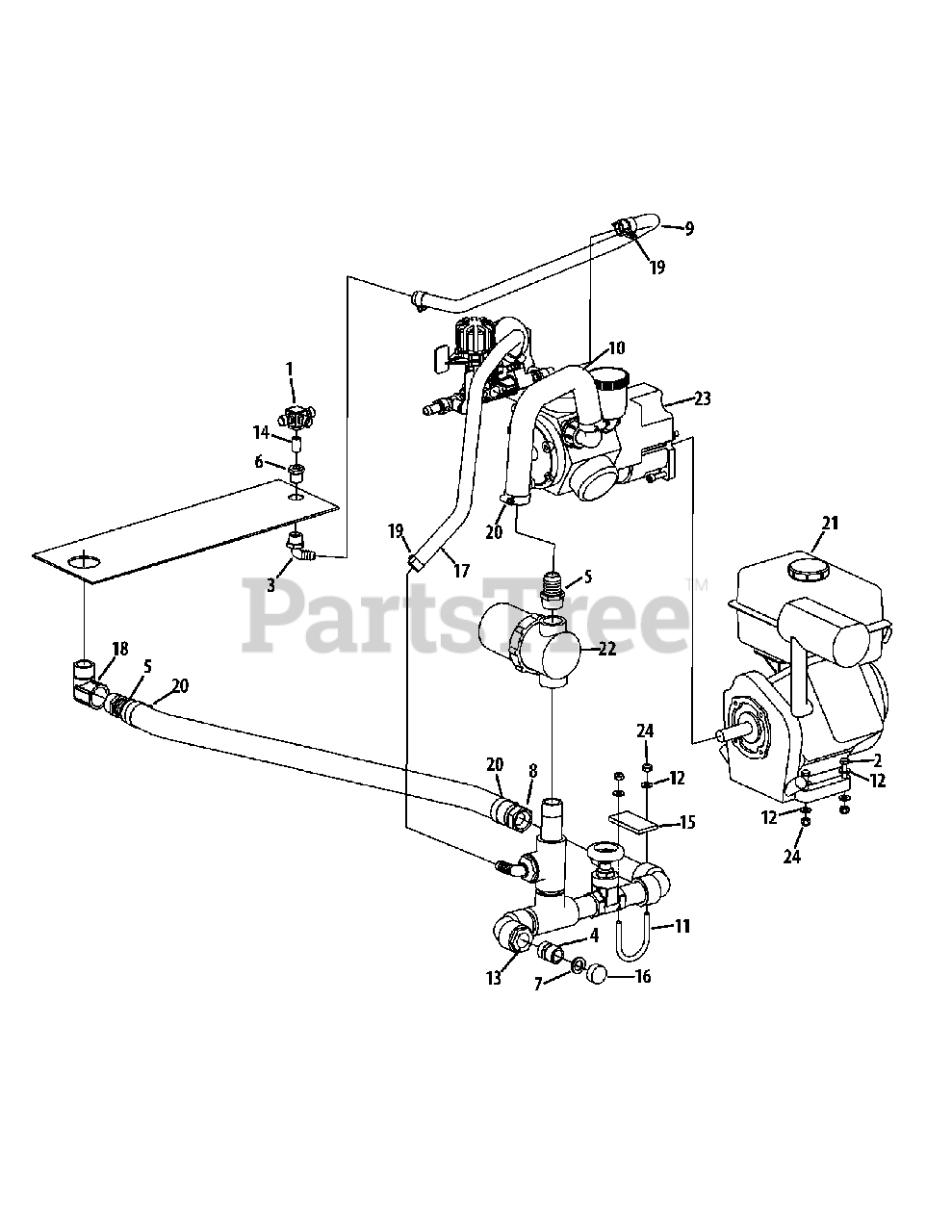

Pump & Engine Assembly - 300 Gallon Parts Diagram

  • Title
1

Cub Cadet 00005610

Jet Agitator

$130.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00006129

Hex Screw, 5/16-18 x 1.75

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00006145

90° Elbow, 1/2 x 1/2

$5.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 00006303

Threaded Pipe Hose, 3/4 x 3/4

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet 00006416

Insulated Male Hose, 1 x 1

$13.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00006430

Reducer Bushing, 1/2 x 1/4

$11.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00007595

Hose Washer, 3/4

$7.99

$

In Stock, only 1 left!

0

8

Cub Cadet 00007713

Female Hose Repair End, 1

$30.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00008295

Hose, 1/2

$

$

Not available

10

Cub Cadet 00009134

Spirafl ex Hose, 1

$6.49

$

In Stock, only 2 left!

0

11

Cub Cadet 00009670

Carriage Bolt, 5/16-18 x 2.62 x 2.30

$2.99

$

In Stock, only 1 left!

0

12

Cub Cadet 00009812

Washer, .344 x .688 x .063

$

$

Not available

13

Cub Cadet 00011021

Manifold Assembly, 100/200/300

$255.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00011939

Brass Nipple, 1/4

$

$

Not available

15

Cub Cadet 00012038

Rubber Pad, 1/4 x 1-1/2 x 3

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 00012664

Brass Hose Cap, 3/4

$6.99

$

In Stock, only 1 left!

0

17

Cub Cadet 00030918

Reinforced Hose, 5/8

$

$

Not available

18

Cub Cadet 00070471

Elbow, 1 x 90

$13.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01000216

Hose Clamp

$

$

Not available

20

Cub Cadet 01000217

Hose Clamp

$15.99

$

In Stock, only 1 left!

0

21

Cub Cadet 01001001P

Kawasaki Engine

$2813.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01004380

Mesh Bowl Strainer
(Superseded to HY-3350-0061P)

$244.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01005827P

Hypro Pump

$3472.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 01005577

Adapter, 3/4 x 3/4

Note: Not shown

$

$

Not available
