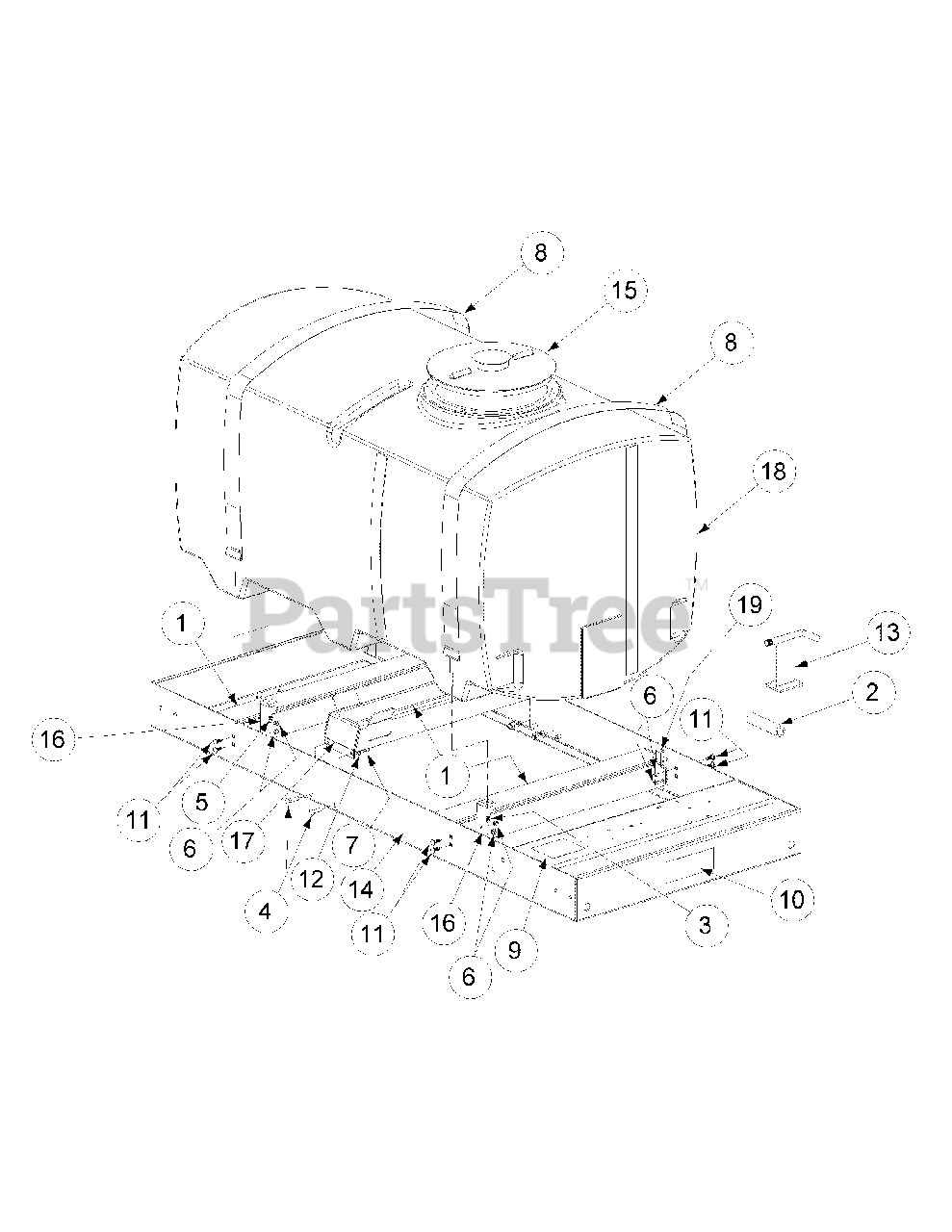

56A703QS750 - Cub Cadet 300 Gallon Sprayer (2010 & Before) Tank & Frame Assembly Parts Diagram

300 Gallon Sprayer

Tank & Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 00008382

1/4 Foam Back

$

$

Not available

2

Cub Cadet 00009134

14.5" Hose

$6.49

$

In Stock, only 2 left!

0

3

Cub Cadet 00009812

5/16 Flat Washer

$

$

Not available

4

Cub Cadet 00011951

1/2-13 x 1-1/2 Hex Cap Screw

$

$

Not available

5

Cub Cadet 00012165

5/16-18 Nylock Nut

$4.99

$

In Stock, only 1 left!

0

6

Cub Cadet 712-04065

Nylock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

8

Cub Cadet 00013315

Tank Strap Assembly

$483.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00030677

Decal, Safety Procedures

$

$

Not available

10

Cub Cadet 777D09752

Decal, Cub Cadet Commercial

$

$

Not available

11

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

12

Cub Cadet 936-0160

Flat Washer, .536 ID x .930 OD x .05

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 01001047

Air Gap Filler Kit

$192.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01001178-0637

Main Frame Assembly
(Superseded to 02004766)

$

$

Not available

15

Cub Cadet 00014356P

16" Fillwell Cap w/Center Cap

$151.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02004769

Strap Mounting Bracket
(Superseded to 01006653-0637)

$

$

Not available

17

Cub Cadet 02004767

Frame Center Support Bracket
(Superseded to 01006605-0637)

$

$

Not available

18

Cub Cadet 01006622

Rectangular Tank

$

$

Not available

19

Cub Cadet 02004768

Strap Mounting Hook
(Superseded to 01006642-0637)

$

$

Not available
