56A703QR750 - Cub Cadet 200 Gallon Sprayer (2011) Kawasaki FE170D-CS04 Electric Equipment Parts Diagram

200 Gallon Sprayer

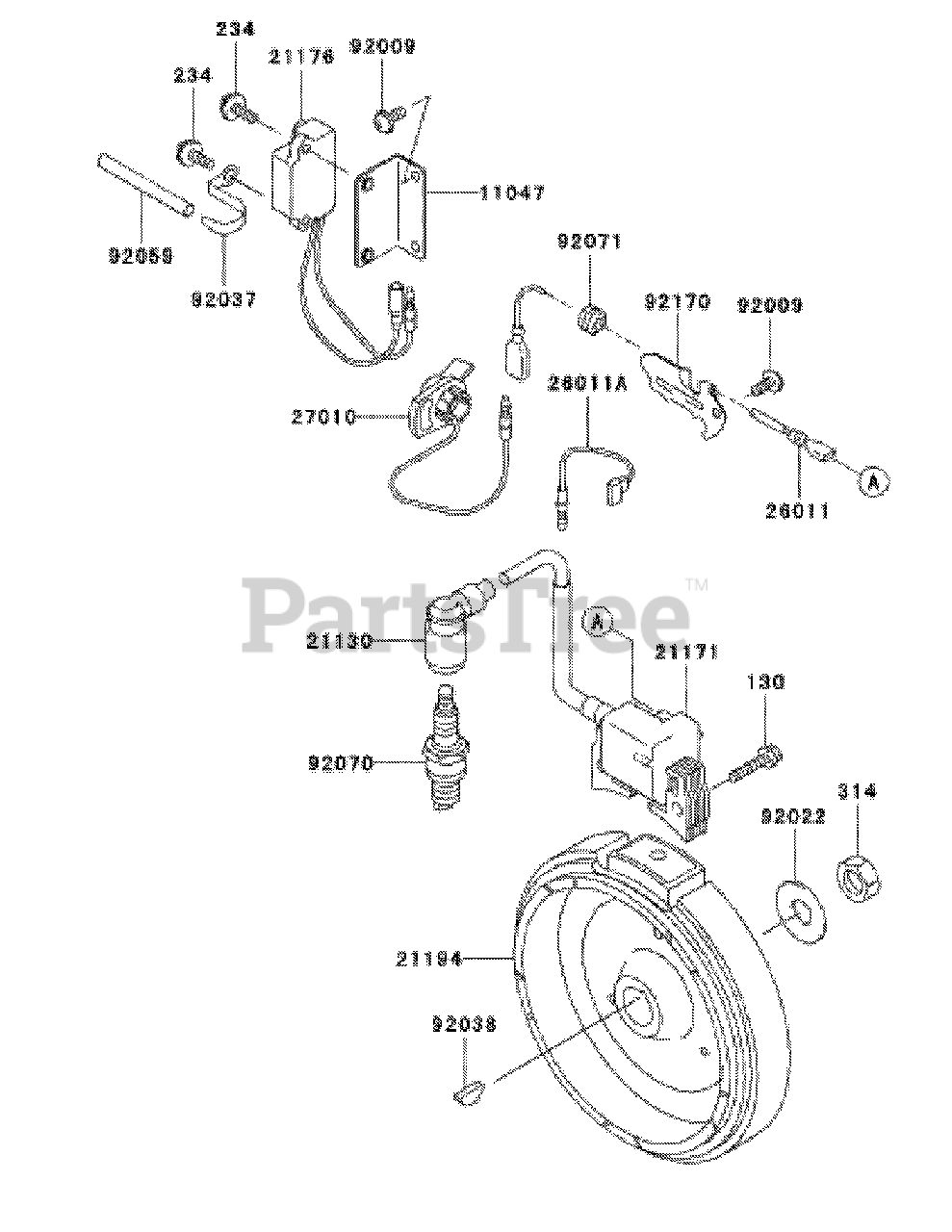

Kawasaki FE170D-CS04 Electric Equipment Parts Diagram

  • Title

11047

Cub Cadet KM-11047-2062

Bracket

$5.99

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130B0525

Flanged Bolt, 5 x 25
(Superseded to KM-130AA0525)

$0.99

$

In Stock, only 2 left!

0

21130

Cub Cadet KM-21130-2060

Spark Plug Cap

$14.99

$

In Stock, only 2 left!

0

21171

Cub Cadet KM-21171-2220

Ignition Coil Assembly

$132.99

$

Usually ships in 2-5 days

0

21176

Cub Cadet KM-21176-2101

Sensor

$41.99

$

In Stock, only 1 left!

0

21194

Cub Cadet KM-21194-2239

Flywheel Complete

$

$

Not available

234

Cub Cadet KM-234B0514

WSP Pan Screw

$

$

Not available

26011

Cub Cadet KM-26011-2356

Lead Wire, L=300

$10.99

$

Usually ships in 2-5 days

0

26011A

Cub Cadet KM-26011-2357

Lead Wire, L=180

$6.99

$

Usually ships in 2-5 days

0

27010

Cub Cadet KM-27010-2052

Switch

$13.99

$

In Stock, only 2 left!

0

314

Cub Cadet KM-314G1400

Fine Hex Nut

$1.49

$

In Stock, Qty 7

0

92009

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 6

0

92022

Cub Cadet KM-92022-2102

Washer

$13.99

$

Usually ships in 2-5 days

0

92037

Cub Cadet KM-92037-2171

Clamp

$1.99

$

Usually ships in 2-5 days

0

92038

Cub Cadet KM-92038-2077

Key

$2.99

$

In Stock, Qty 14

0

92059

Cub Cadet KM-92059-2011

Tube, 5 x 6 x 75

$0.99

$

Usually ships in 2-5 days

0

92070

Cub Cadet KM-BPR5ES

Spark Plug

$3.49

$

In Stock, Qty 20+

0

92071

Cub Cadet KM-92071-2125

Grommet

$1.99

$

In Stock, only 1 left!

0

92170

Cub Cadet KM-92170-2070

Clamp

$3.49

$

Usually ships in 2-5 days

0
