56A703QR750 - Cub Cadet 200 Gallon Sprayer (2011) Hose Reel & Mounting Assembly - 200 Gallon Compact Parts Diagram

200 Gallon Sprayer

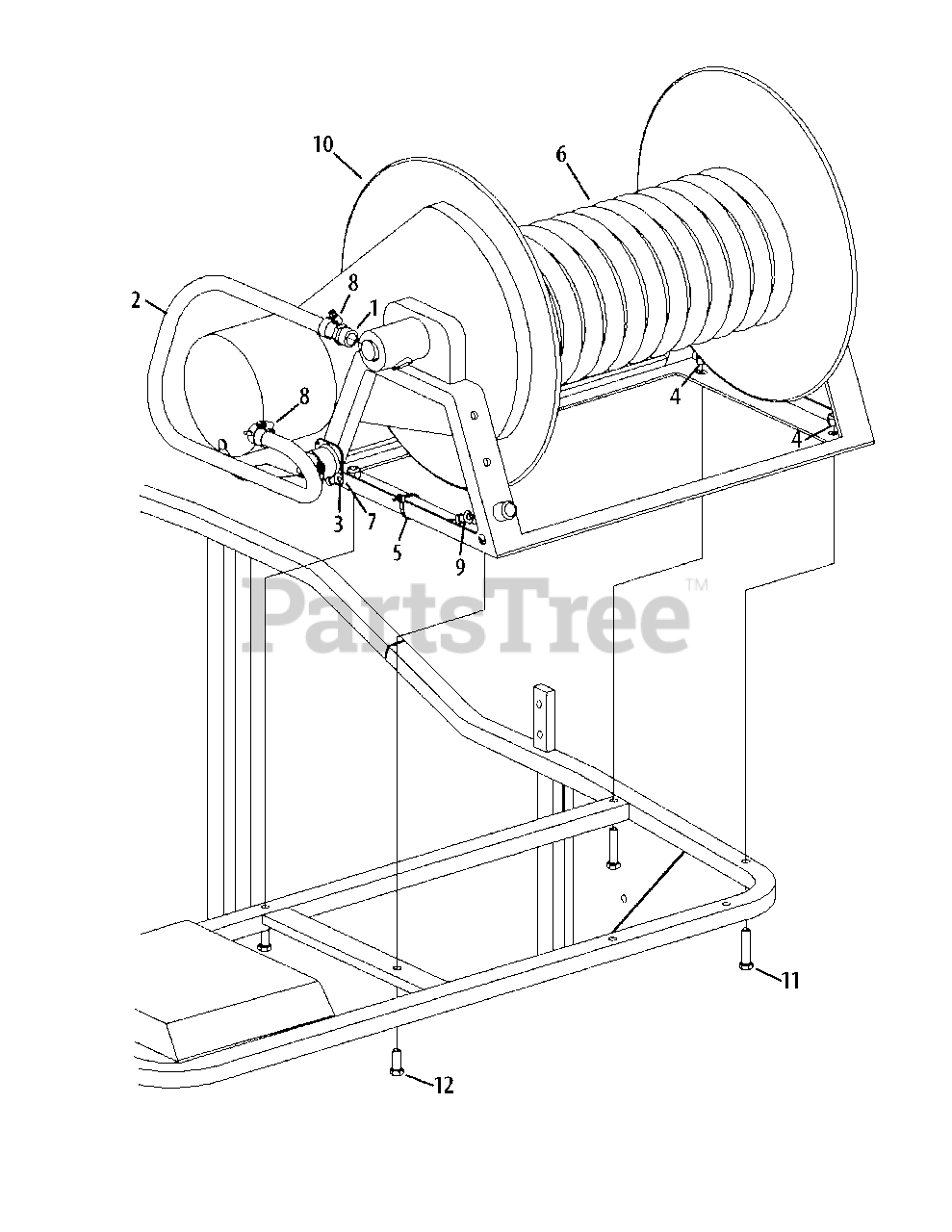

Hose Reel & Mounting Assembly - 200 Gallon Compact Parts Diagram

  • Title

1

Cub Cadet 00006417

Hose Barb, 1/2 x 1/2

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00008295

Hose, 1/2

$

$

Not available

3

Cub Cadet 00010628

Ring Terminal, 3/8

$

$

Not available

4

Cub Cadet 712-04065

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet 00020199

Hose Assembly, 1/2 x 300

$727.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00060033

Flat Washer, 1/4
(Superseded to 736-05152)

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01000216

Hose Clamp

$

$

Not available

9

Cub Cadet 01002319

Wiring Harness

$

$

Not available

10

Cub Cadet 01003359P

Electric Hose Reel

$

$

Not available

11

Cub Cadet 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0514

Hex Screw, 38-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 00010863

Wiring Kit

Note: Not shown

$107.99

$

Usually ships in 3-6 days

0
