56A703QR750 - Cub Cadet 200 Gallon Sprayer (2010 & Before) Kawasaki FE170D-CS04 Fuel Tank & Fuel Valve Parts Diagram

200 Gallon Sprayer

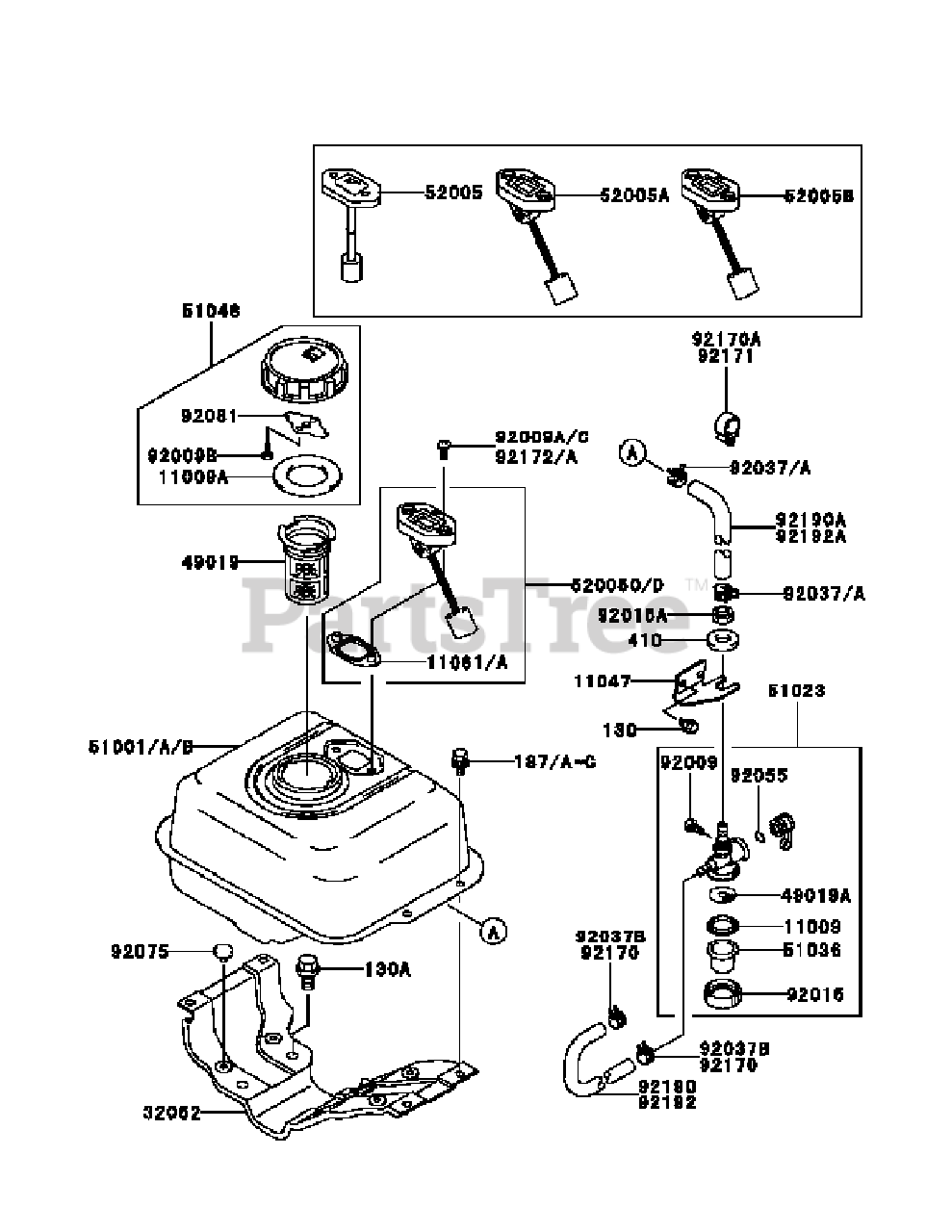

Kawasaki FE170D-CS04 Fuel Tank & Fuel Valve Parts Diagram

  • Title

11009

Cub Cadet KM-11009-2021

Gasket

$

$

Not available

1009A

Cub Cadet KM-11009-2115

Gasket

$2.49

$

Usually ships in 2-5 days

0

11047

Cub Cadet KM-11047-2001

Bracket

$8.49

$

Usually ships in 2-5 days

0

11061

Cub Cadet KM-11061-2077

Gasket

$2.99

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130B0508

Flanged Bolt, 5 x 8

$0.99

$

In Stock, Qty 8

0

130A

Cub Cadet KM-130B0818

Flanged Bolt

$

$

Not available

187B

Cub Cadet KM-187L0616

WSP Bolt Upset
(Superseded to KM-187BB0616)

$1.49

$

Usually ships in 2-5 days

0

32052

Cub Cadet KM-32052-22209H

Tank Bracket

$

$

Not available

410

Cub Cadet KM-410B1000

W-Plain-S, 10mm
(Superseded to KM-410AA1000)

$0.99

$

Usually ships in 2-5 days

0

49019

Cub Cadet KM-49019-2051

Fuel Filter

$6.99

$

In Stock, only 1 left!

0

49019A

Cub Cadet KM-49019-2095

Fuel Filter

$6.49

$

In Stock, Qty 7

0

51001A

Cub Cadet KM-51001-23079H

Fuel Tank Complete

$

$

Not available

51023

Cub Cadet KM-51023-2131

Tap Assembly

$

$

Not available

51036

Cub Cadet KM-51036-2063

Fuel Tap Cup

$3.99

$

In Stock, only 3 left!

0

51048

Cub Cadet KM-51048-2055

Tank Cap Assembly

$12.99

$

Usually ships in 2-5 days

0

52005C

Cub Cadet KM-52005-2139

Guage

$29.99

$

In Stock, only 1 left!

0

92009

Cub Cadet KM-92009-2004

Screw

$0.99

$

In Stock, only 3 left!

0

92009B

Cub Cadet KM-92009-2021

Screw

$0.99

$

In Stock, only 3 left!

0

92015

Cub Cadet KM-92015-2007

Nut

$6.49

$

Usually ships in 2-5 days

0

92015A

Cub Cadet KM-92015-2317

Nut

$1.49

$

In Stock, Qty 9

0

92037

Cub Cadet KM-92037-1181

Hose Clip Clamp

$3.99

$

Usually ships in 2-5 days

0

92055

Cub Cadet KM-92055-2002

O-Ring

$

$

Not available

92075

Cub Cadet KM-92075-2113

Damper

$1.49

$

Usually ships in 2-5 days

0

92081

Cub Cadet KM-92081-2036

Spring

$2.49

$

In Stock, only 1 left!

0

92170

Cub Cadet KM-92170-2043

Clamp

$1.49

$

In Stock, Qty 14

0

92171

Cub Cadet KM-92171-2080

Clamp

$6.99

$

Usually ships in 2-5 days

0

92172

Cub Cadet KM-92172-2064

Screw, 5 x 12

$0.99

$

Usually ships in 2-5 days

0

92192

Cub Cadet KM-92192-2119

Tube, 4 x 11 x 180

$15.99

$

Usually ships in 2-5 days

0

92192A

Cub Cadet KM-92192-2120

Tube, 6.2 x 13.2 x 215

$22.99

$

Usually ships in 2-5 days

0
