56A703QR750 - Cub Cadet 200 Gallon Sprayer (2010 & Before) Kawasaki FE170D-CS04 Carburetor Parts Diagram

200 Gallon Sprayer

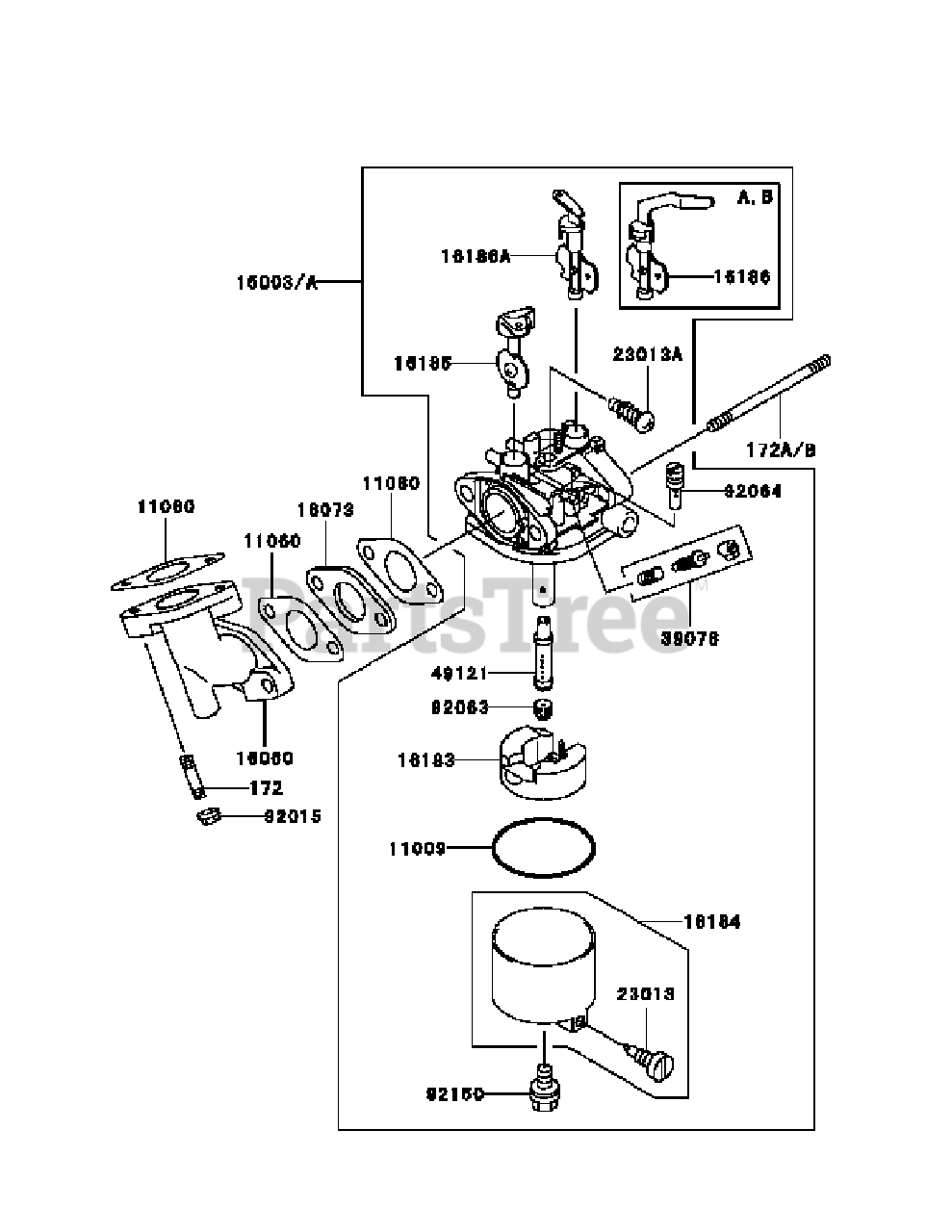

Kawasaki FE170D-CS04 Carburetor Parts Diagram

  • Title

11009

Cub Cadet KM-11009-2919

Gasket

$10.99

$

In Stock, Qty 16

0

11060

Cub Cadet KM-11060-2051

Carburetor Gasket

$1.99

$

In Stock, Qty 20+

0

15003A

Cub Cadet KM-15003-2714

Carburetor Assembly

$206.99

$

Usually ships in 2-5 days

0

16060

Cub Cadet KM-16060-2154

Intake Pipe

$23.99

$

Usually ships in 2-5 days

0

16073

Cub Cadet KM-16073-2180

Insulator

$2.49

$

In Stock, only 2 left!

0

16183

Cub Cadet KM-16183-2005

Float Assembly

$49.99

$

Usually ships in 2-5 days

0

16184

Cub Cadet KM-16184-2002

Float Chamber Assembly

$50.99

$

Usually ships in 2-5 days

0

16185

Cub Cadet KM-16185-2009

Throttle Valve Assembly

$58.99

$

Usually ships in 2-5 days

0

16186A

Cub Cadet KM-16186-2010

Choke Valve Assembly

$

$

Not available

172

Cub Cadet KM-172G0618

Stud Bolt
(Superseded to KM-172BA0618)

$1.49

$

In Stock, only 1 left!

0

172A

Cub Cadet KM-172G0670

Stud Bolt, 6 x 70

$

$

Not available

23013

Cub Cadet KM-23013-2053

Screw Assembly

$11.99

$

Usually ships in 2-5 days

0

23013A

Cub Cadet KM-23013-2054

Screw Assembly

$8.49

$

Usually ships in 2-5 days

0

39076

Cub Cadet KM-39076-2055

Limiter

$12.99

$

Usually ships in 2-5 days

0

49121

Cub Cadet KM-49121-2194

Main Nozzle

$19.99

$

Usually ships in 2-5 days

0

92015

Cub Cadet KM-92015-1193

Nut
(Superseded to KM-92015-1367)

$4.49

$

In Stock, Qty 20+

0

92063

Cub Cadet KM-92063-2286

Main Jet, #75

$10.99

$

Usually ships in 2-5 days

0

92064

Cub Cadet KM-92064-2082

Pilot Jet, #42

$20.99

$

Usually ships in 2-5 days

0

92150

Cub Cadet KM-92150-2209

Bolt

$7.49

$

In Stock, only 1 left!

0
