56A703QR750 - Cub Cadet 200 Gallon Sprayer (2010 & Before) Engine & Pump Assembly Parts Diagram

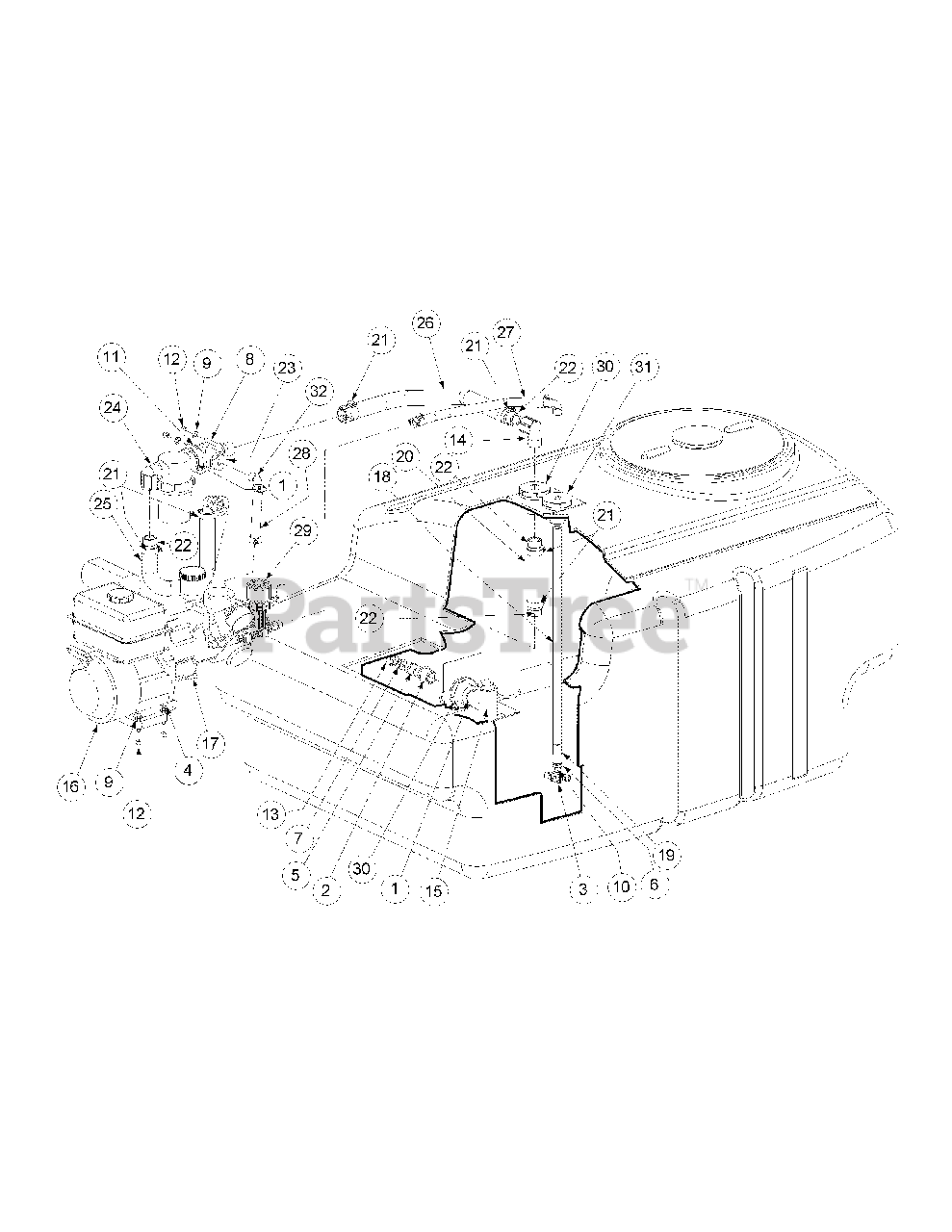

200 Gallon Sprayer

Engine & Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 00002108

NPT Close Nipple, 1"

$

$

Not available

2

Cub Cadet 00003254

NPT, 3/4" NPT, Adapter Bushing, 1"

$

$

Not available

3

Cub Cadet 00005610

Jet Agitator

$130.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00006129

Hex Cap Screw, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00006303

3/4 NPT Fitting, 3/4 Hose Thread

$14.99

$

In Stock, only 2 left!

0

6

Cub Cadet 00006430

1/4 FNPT, 1/2 MNPT Fitting

$11.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00007595

Rubber Washer, 3/4"

$7.99

$

In Stock, only 1 left!

0

8

Cub Cadet 00009670

U-Bolt, 5/16-18 x 2

$2.99

$

In Stock, only 1 left!

0

9

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

10

Cub Cadet 00011939

MNPT Close Nipple, 1/4

$

$

Not available

11

Cub Cadet 00012038

Rubber Pad, 1/4x 1-1/2 x 3

$11.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 00012664

Hose Cap 3/4

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 00070471

Street Elbow, 1" MNPT x 1" PVC

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00070485

Tee 1" FNPT

$

$

Not available

16

Cub Cadet 01001001P

5.5 HP Kawasaki Engine

$2813.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01008928

Socket Head Capscrew, M8-1.25 x 25MM

$

$

Not available

18

Cub Cadet 01005199

Agitator Tube, 24" Extension PVC

$

$

Not available

19

Cub Cadet 01005223

Coupling, 1/2 FNPT

$

$

Not available

20

Cub Cadet 01006892

Inner Suction Hose Assembly

$

$

Not available

21

Cub Cadet 01000217

Hose Clamp, 7/8 x 1-1/4

$15.99

$

In Stock, only 1 left!

0

22

Cub Cadet 00006416

Hose Barb, 1" NPT, 1" Nylon

$13.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 00003241

NPT, 1/2" NPT, Adapter Bushing, 1"

$

$

Not available

24

Cub Cadet 01005673

Strainer Manifold Kit Includes:

$375.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01004380

Strainer, 30 Mesh-SS
(Superseded to HY-3350-0061P)

$244.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 00008888

Strainer Bowl

$

$

Not available

24

Cub Cadet 00008719

Strainer Gasket

$

$

Not available

24

Cub Cadet N/A

Strainer Screen 30 Mesh

$

$

Currently unavailable

25

Cub Cadet 01005719

Strainer Suction Hose Assembly

$80.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01005720

Tank Suction Hose Assembly

$

$

Not available

27

Cub Cadet 01005721

Pump Agitator Hose Assembly

$

$

Not available

28

Cub Cadet 01005722

Bypass Pump Hose Assembly

$151.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01005827P

Hydro Pump, D-403 includes:

$3472.99

$

Usually ships in 3-6 days

0

29

Cub Cadet N/A

Pump

$

$

Currently unavailable

29

Cub Cadet N/A

Control Unit

$

$

Currently unavailable

29

Cub Cadet N/A

Optional Hydro Pump Kits:

$

$

Currently unavailable

29

Cub Cadet N/A

Hydro Pump Diaphragm Kit

$

$

Currently unavailable

29

Cub Cadet N/A

Hydro Pump Valve Kit

$

$

Currently unavailable

29

Cub Cadet N/A

Hydro Pump O-Ring Kit

$

$

Currently unavailable

29

Cub Cadet N/A

Hydro Pump Pressure Regulator

$

$

Currently unavailable

30

Cub Cadet N/A

1" Fitting

$

$

Currently unavailable

31

Cub Cadet N/A

1/2" Fitting

$

$

Currently unavailable

32

Cub Cadet 00002909

Elbow Hose Barb, 1/2" NPT, 1" Nylon

$

$

Not available

Cub Cadet 00017302

Hose Assembly, Pump to Hose Reel

Note: Not shown

$

$

Not available

Cub Cadet 00020197

300'-3/8'' I.D., 600 psi, 3/4'' GHT Couplings.

Note: Not shown

$

$

Not available

Cub Cadet 00020201

100'-1/2'' I.D., 800 psi, 3/4'' GHT Couplings.

Note: Not shown

$

$

Not available

Cub Cadet 00020199

300'-1/2'' I.D., 800 psi, 3/4'' GHT Couplings.

Note: Not shown

$727.99

$

Usually ships in 3-6 days

0

Cub Cadet 00009134

1'' I.D., Spiraflex Suction Hose

Note: Not shown

$6.49

$

In Stock, only 2 left!

0

Cub Cadet KM-49064-2071

Filter, Air

Note: Not shown

$38.99

$

Usually ships in 2-5 days

0

Cub Cadet KM-11013-2124

Foam Wrap

Note: Not shown

$9.99

$

Usually ships in 2-5 days

0

Cub Cadet KM-49019-2095

Filter, Fuel

Note: Not shown

$6.49

$

In Stock, only 1 left!

0

Cub Cadet KM-49069-22679X

Muffler

Note: Not shown

$

$

Not available

Cub Cadet KM-11060-2037

Muffler Gasket

Note: Not shown

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KM-BPR5ES

Spark Plug

Note: Not shown

$3.49

$

In Stock, Qty 20+

0
