56A703QJ750 - Cub Cadet 100 Gallon Sprayer (2010 & Before) Hose Reel Mounting Bracket Parts Diagram

100 Gallon Sprayer

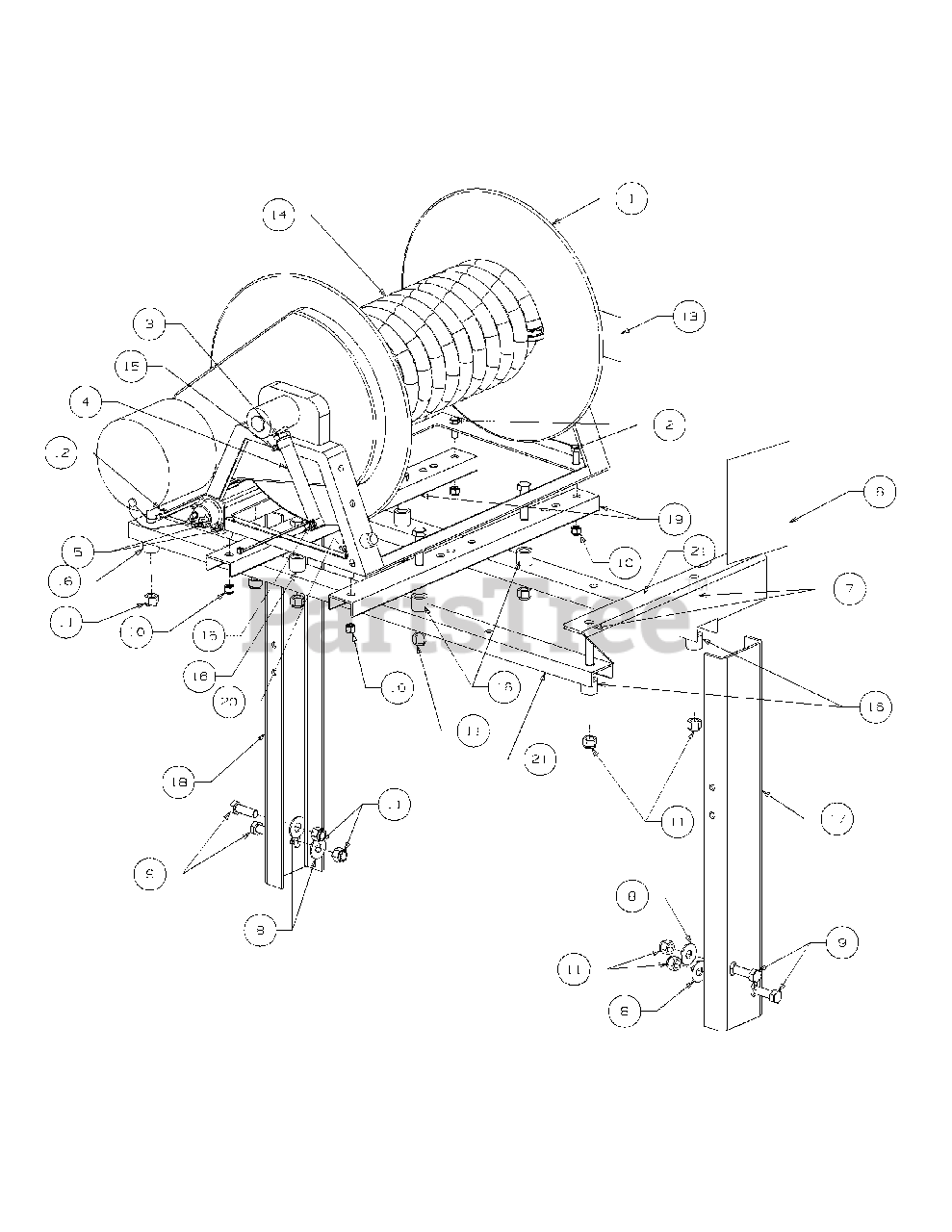

Hose Reel Mounting Bracket Parts Diagram

  • Title

1

Cub Cadet 01003359P

Hose Reel

$

$

Not available

2

Cub Cadet 00006144

Capscrew, 3/8-16 x 1

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00006417

1/2 Hose Barb, 1/2 (M) NPT

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00008295

1/2" Hose by the foot

$

$

Not available

5

Cub Cadet 00010628

Ring Terminal, 3/8"

$

$

Not available

6

Cub Cadet 00010863

Electric Wiring Kit

$107.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00010956

Cap Screw, 1/2-13 x 2 Hex Hd

$

$

Not available

8

Cub Cadet 00011459

Flat Washer, 1/2 USS

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00011951

Cap Screw, 1/2-13 x 1-1/2 Hex Hd

$

$

Not available

10

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

12

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 00019178

Decal, Maximum Hose Length

$

$

Not available

14

Cub Cadet 00020199

Hose Assembly, 800 PSI, 1/2" x 300'

$727.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01000216

Hose Clamp, 1/2, 7/8

$

$

Not available

16

Cub Cadet 750-3065

Spacer, Cross Bar

$9.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 01005916

Upright, Engine Side, Right

$

$

Not available

18

Cub Cadet 01005917

Upright, Pump Side, Left

$

$

Not available

19

Cub Cadet 01002287-0637

Channel, Pick-up Mount

$

$

Not available

20

Cub Cadet 01002319

Wiring Harness

$

$

Not available

21

Cub Cadet 01003202-0637

Cross Bar

$66.99

$

Usually ships in 3-6 days

0
