56A703OE750 - Cub Cadet 50 Gallon Sprayer (2011) Tank & Engine Assembly - 50 Gallon Pump Parts Diagram

50 Gallon Sprayer

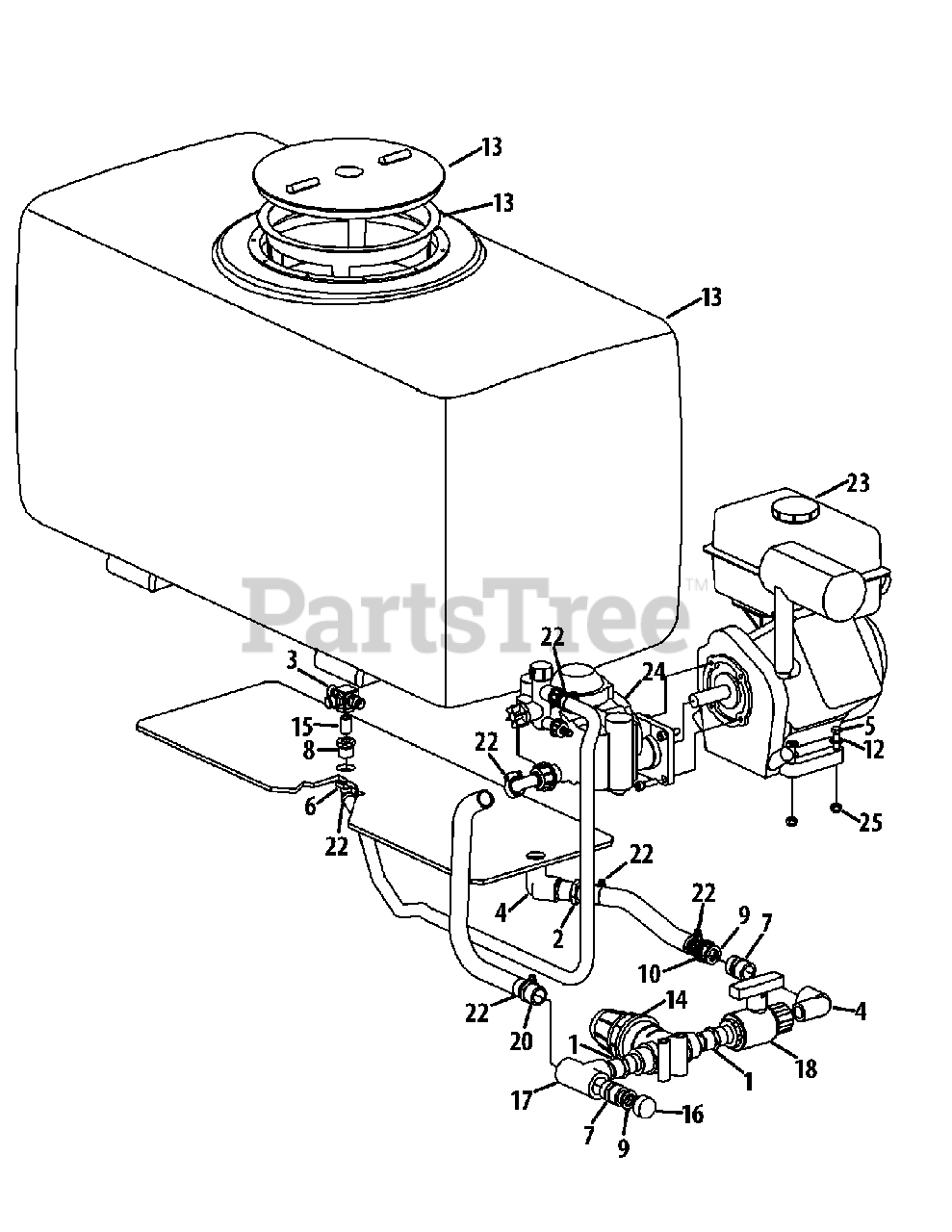

Tank & Engine Assembly - 50 Gallon Pump Parts Diagram

  • Title
1

Cub Cadet 00002406

Nipple, 3/4

$

$

Not available

2

Cub Cadet 00003011

Insulated Male Adapter, 3/4

$

$

Not available

3

Cub Cadet 00005610

Jet Agitator

$130.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00006017

Elbow, 3/4

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 00006129

Hex Screw, 5/16-18 x 1.75

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00006145

90° Elbow, 1/2 x 1/2

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 00006303

Threaded Pipe Hose, 3/4 x 3/4

$14.99

$

In Stock, only 2 left!

0

8

Cub Cadet 00006430

Reducer Bushing, 1/2 x 1/4

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00007595

Hose Washer, 3/4

$7.99

$

In Stock, only 1 left!

0

10

Cub Cadet 00007687

Brass Female Hose, 3/4

$

$

Not available

12

Cub Cadet 00009812

Washer, .344 x .688 x .063

$

$

Not available

13

Cub Cadet 00010033

50 Gallon Poly Tank

$

$

Not available

14

Cub Cadet 00011233

Strainer, 3/4

$134.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00011939

Brass Nipple, 1/4

$

$

Not available

16

Cub Cadet 00012664

Brass Hose Cap, 3/4

$6.99

$

In Stock, only 1 left!

0

17

Cub Cadet 00016465

PVC Tee, 3/4

$

$

Not available

18

Cub Cadet 00019013

PVC Ball Valve, 3/4

$

$

Not available

20

Cub Cadet 00031785

Fitting, 3/4 x 5/8

$

$

Not available

22

Cub Cadet 01000216

Hose Clamp

$

$

Not available

23

Cub Cadet 01001000

Kawasaki Engine

$

$

Not available

24

Cub Cadet 01005668

Hypro Pump

$1964.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 01005577

Adapter, 3/4 x 3/4

Note: Not shown

$

$

Not available

Cub Cadet 00008295

Hose, 1/2

Note: Not shown

$

$

Not available

Cub Cadet 00030918

Reinforced Hose, 5/8

Note: Not shown

$

$

Not available

Cub Cadet 00033300

Spiraflex® Hose, 3/4

Note: Not shown

$

$

Not available
