56A703OE750 - Cub Cadet 50 Gallon Sprayer (2010 & Before) Pump Assembly Parts Diagram

50 Gallon Sprayer

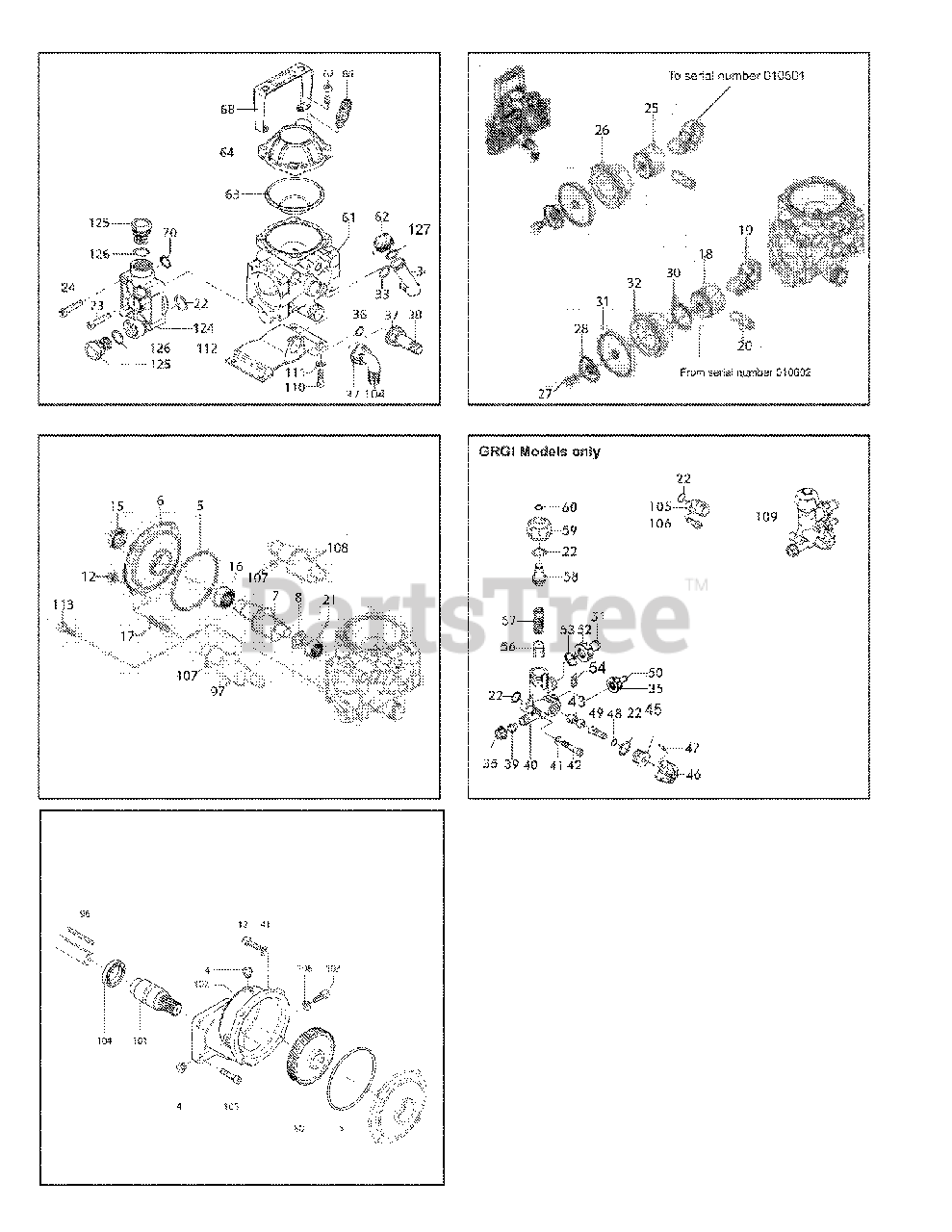

Pump Assembly Parts Diagram

  • Title

4

Cub Cadet HY-9910-620301

Plug

$

$

Not available

5

Cub Cadet HY-9910-800380

O-Ring

$

$

Not available

5

Cub Cadet HY-9910-800380

O-Ring

$

$

Not available

6

Cub Cadet HY-9910-800020

Flange

$

$

Not available

7

Cub Cadet HY-9910-800172

3/4 Solid Shaft

$

$

Not available

8

Cub Cadet HY-9910-800160

Spacer

$

$

Not available

12

Cub Cadet HY-9910-850850

Bolt

$

$

Not available

12

Cub Cadet HY-9910-390440

Nut

$

$

Not available

15

Cub Cadet HY-9910-800200

Seal

$

$

Not available

16

Cub Cadet HY-9910-800180

Roller Bearing

$

$

Not available

17

Cub Cadet HY-9910-550330

Stud

$

$

Not available

18

Cub Cadet HY-9910-802070

Piston

$68.99

$

Usually ships in 3-6 days

0

19

Cub Cadet HY-9910-800140

Connecting Rod

$

$

Not available

20

Cub Cadet HY-9910-800130

Piston Pin

$

$

Not available

21

Cub Cadet HY-9910-480370

Roller Bushing

$

$

Not available

22

Cub Cadet HY-9910-480440

O-Ring

$

$

Not available

23

Cub Cadet HY-9910-680360

Bolt

$

$

Not available

24

Cub Cadet HY-9910-800220

Bolt

$

$

Not available

25

Cub Cadet HY-9910-800120

Piston

$

$

Not available

26

Cub Cadet HY-9910-800110

Sleeve

$

$

Not available

27

Cub Cadet HY-9910-800090

Retaining Bolt

$

$

Not available

28

Cub Cadet HY-9910-800350

Plate

$

$

Not available

30

Cub Cadet HY-9910-802080

Piston Ring

$

$

Not available

31

Cub Cadet HY-9910-800085

Diaphragm Desmopan (Std.)

$

$

Not available

31

Cub Cadet HY-9910-80008T

Diaphragm Teflon (Opt.)

$50.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HY-9910-800080

Diaphragm Buna (Opt.)

$

$

Not available

32

Cub Cadet HY-9910-802050

Sleeve

$

$

Not available

33

Cub Cadet HY-9910-740290

O-Ring

$2.99

$

Usually ships in 3-6 days

0

34

Cub Cadet HY-9910-801960

Oil Sight Glass

$22.99

$

In Stock, only 1 left!

0

35

Cub Cadet HY-9910-800520

Ring Nut

$

$

Not available

36

Cub Cadet HY-9910-390180

O-Ring

$

$

Not available

37

Cub Cadet HY-9910-550450

Ring Nut

$

$

Not available

38

Cub Cadet HY-9910-800340

Hose Barb (Inlet) 3/4"

$

$

Not available

39

Cub Cadet HY-9910-800540

Plug

$

$

Not available

40

Cub Cadet HY-9910-800400

Valve Body

$

$

Not available

41

Cub Cadet HY-9910-550331

Washer

$

$

Not available

41

Cub Cadet HY-9910-550331

Washer

$

$

Not available

42

Cub Cadet HY-9910-801080

Bolt

$

$

Not available

43

Cub Cadet HY-9910-800430

Valve

$

$

Not available

45

Cub Cadet HY-9910-800500

Ring Nut

$

$

Not available

46

Cub Cadet HY-9910-800510

Knob

$

$

Not available

47

Cub Cadet HY-9910-390330

Pin

$

$

Not available

48

Cub Cadet HY-9910-800560

O-Ring

$

$

Not available

49

Cub Cadet HY-9910-800490

Positioning Rod

$

$

Not available

50

Cub Cadet HY-9910-800530

Hose Barb (Outlet) 3/8"

$

$

Not available

51

Cub Cadet HY-9910-800670

Hose Barb (Bypass) 5/8"

$

$

Not available

52

Cub Cadet HY-9910-800680

Ring Nut

$

$

Not available

53

Cub Cadet HY-9910-740290

O-Ring

$2.99

$

Usually ships in 3-6 days

0

54

Cub Cadet HY-9910-800480

ATM Scale Adhesive

$

$

Not available

56

Cub Cadet HY-9910-800440

Lower Spring Guide

$

$

Not available

57

Cub Cadet HY-9910-800450

Spring

$

$

Not available

58

Cub Cadet HY-9910-800460

Upper Spring Guide

$

$

Not available

59

Cub Cadet HY-9910-800470

Adjustment Knob

$

$

Not available

60

Cub Cadet HY-9910-480550

Retaining Ring

$

$

Not available

61

Cub Cadet HY-9910-800010

Pump Body

$

$

Not available

62

Cub Cadet HY-9910-550057

Cap

$

$

Not available

63

Cub Cadet HY-9910-800190

Accumulator Diaphragm (Buna-N)

$

$

Not available

63

Cub Cadet HY-9910-80019T

Accumulator Diaphragm (Teflon)

$

$

Not available

64

Cub Cadet HY-9910-800230

Upper Air Chamber

$

$

Not available

65

Cub Cadet HY-9910-800650

Valve

$

$

Not available

67

Cub Cadet HY-9910-540290

Bolt

$

$

Not available

68

Cub Cadet HY-9910-800390

Handle

$

$

Currently unavailable

70

Cub Cadet HY-9910-800210

O-Ring

$

$

Not available

80

Cub Cadet HY-9910-800280

Gear

$

$

Not available

96

Cub Cadet HY-9910-881090

Key

$

$

Not available

101

Cub Cadet HY-9910-800810

Driver Gear, 3/4" shaft only

$

$

Not available

101

Cub Cadet HY-9910-801230

Driver Gear, 5/8" shaft only

$

$

Not available

102

Cub Cadet HY-9910-800820

3/4"Gear box

$

$

Not available

102

Cub Cadet HY-9910-800821

5/8"Gear box

$

$

Currently unavailable

103

Cub Cadet HY-9910-800800

Locating Bolt

$

$

Not available

104

Cub Cadet HY-9910-480820

Seal

$

$

Not available

104

Cub Cadet HY-9910-550460

Elbow

$

$

Not available

105

Cub Cadet HY-9910-620440

Bolt

$

$

Not available

105

Cub Cadet HY-9910-800691

Flange, 1/2" NPT

$

$

Not available

106

Cub Cadet HY-9910-820520

Washer

$

$

Not available

106

Cub Cadet HY-9910-880280

Bolt

$

$

Not available

107

Cub Cadet HY-9910-800590

Key

$

$

Currently unavailable

108

Cub Cadet HY-9910-800171

Shaft "GR-Version", 3/4"

$

$

Not available

109

Cub Cadet HY-9910-KIT1990

Control unit

$

$

Not available

110

Cub Cadet HY-9910-180431

Bolt

$

$

Not available

111

Cub Cadet HY-9910-380241

Washer

$

$

Not available

112

Cub Cadet HY-9910-800311

Pulley Base

$

$

Not available

113

Cub Cadet HY-9910-320350

Bolt

$

$

Not available

124

Cub Cadet HY-9910-801940

Head

$

$

Not available

125

Cub Cadet HY-9910-809060V

Valve Assembly

$

$

Not available

126

Cub Cadet HY-9910-880830

O-Ring

$

$

Not available

127

Cub Cadet HY-9910-550040

O-Ring

$

$

Not available

Cub Cadet HY-9910-KIT1723

Diaphragm Kit

$

$

Not available

Cub Cadet HY-9910-KIT2408

Valve Kit

$

$

Not available

Cub Cadet HY-9910-KIT2409

O-Ring Kit

$

$

Not available

Cub Cadet 01005577

Adapter - 3/4 Nylon

$

$

Not available
