56A703OE750 - Cub Cadet 50 Gallon Sprayer (2010 & Before) Kawasaki FE120D-CS04 Cylinder & Crankcase Parts Diagram

50 Gallon Sprayer

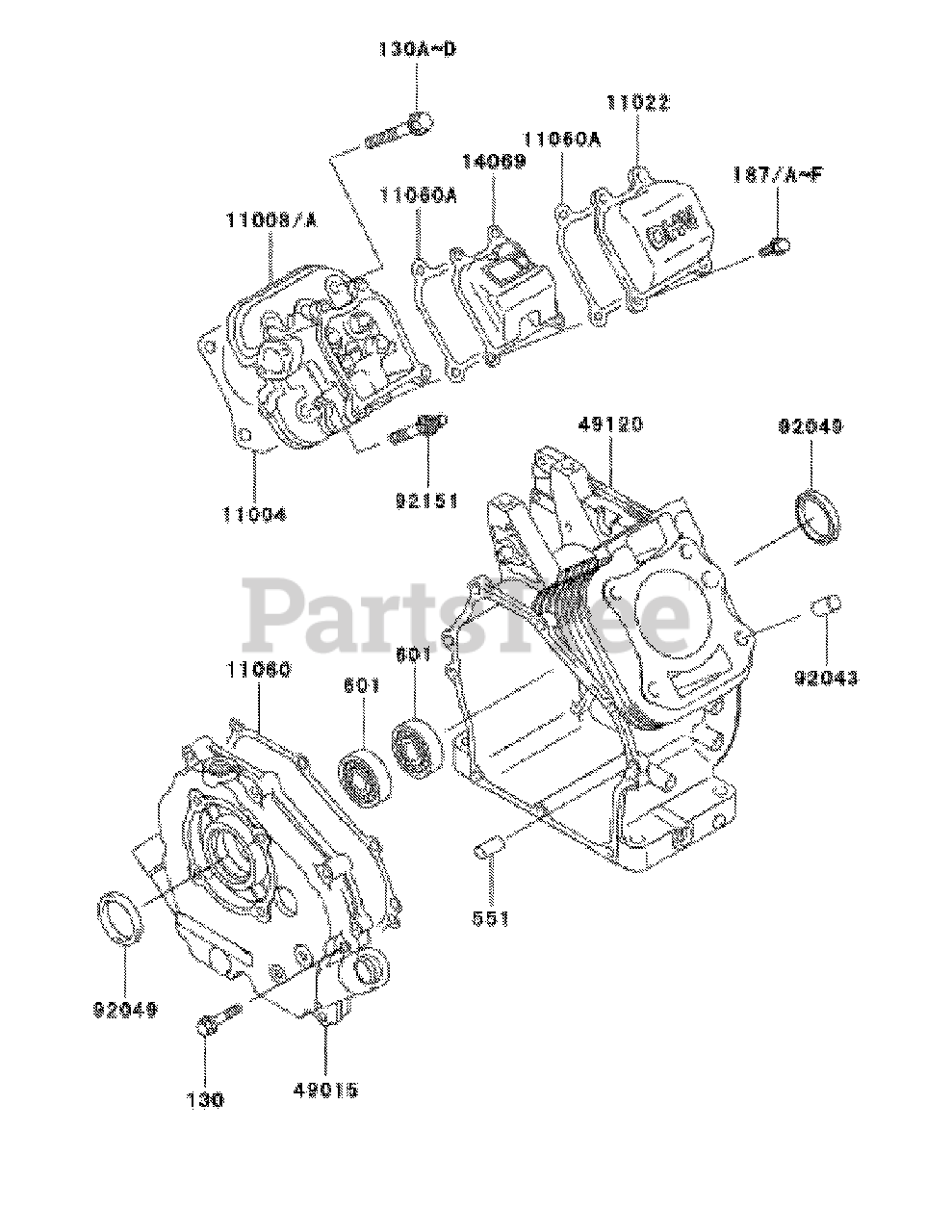

Kawasaki FE120D-CS04 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-2113

GASKET-HEAD

$11.99

$

In Stock, Qty 7

0

11008

Cub Cadet KM-11008-2092

HEAD-COMP-CYLINDER

$222.99

$

Usually ships in 2-5 days

0

11022

KM-11022-20659H

CASE-ROCKER

$

$

Not available

11060

Cub Cadet KM-11060-2044

GASKET, CRANKCASE COVER

$11.99

$

In Stock, only 1 left!

0

11060A

Cub Cadet KM-11060-2291

GASKET, ROCKER CASE

$3.99

$

In Stock, Qty 7

0

130

Cub Cadet KM-130G0630

BOLT-FLANGED, 6X30

$1.99

$

In Stock, Qty 15

0

130

Cub Cadet KM-130T0845

BOLT-FLANGED, 8X45
(Superseded to KM-130CA0845)

$1.49

$

In Stock, Qty 5

0

14069

Cub Cadet KM-14069-2080

BREATHER

$13.99

$

Usually ships in 2-5 days

0

187

Cub Cadet KM-187L0616

BOLT-UPSET-WSP, 6X16
(Superseded to KM-187BB0616)

$1.49

$

Usually ships in 2-5 days

0

49015

Cub Cadet KM-49015-6212

COVER-CRANKCASE

$

$

Not available

49120

Cub Cadet KM-49120-2241

CRANKCASE-COMP

$

$

Not available

551

Cub Cadet KM-551A0612

PIN-DOWEL, 6X12

$0.99

$

Usually ships in 2-5 days

0

601

Cub Cadet KM-601A6204

BEARING-BALL

$16.99

$

In Stock, only 3 left!

0

92043

Cub Cadet KM-92043-1037

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Cub Cadet KM-92049-2001

SEAL-OIL

$5.49

$

In Stock, Qty 12

0

92151

Cub Cadet KM-92151-2060

BOLT

$5.49

$

Usually ships in 2-5 days

0
