56A703OE750 - Cub Cadet 50 Gallon Sprayer (2010 & Before) Kawasaki FE120D-CS04 Carburetor Parts Diagram

50 Gallon Sprayer

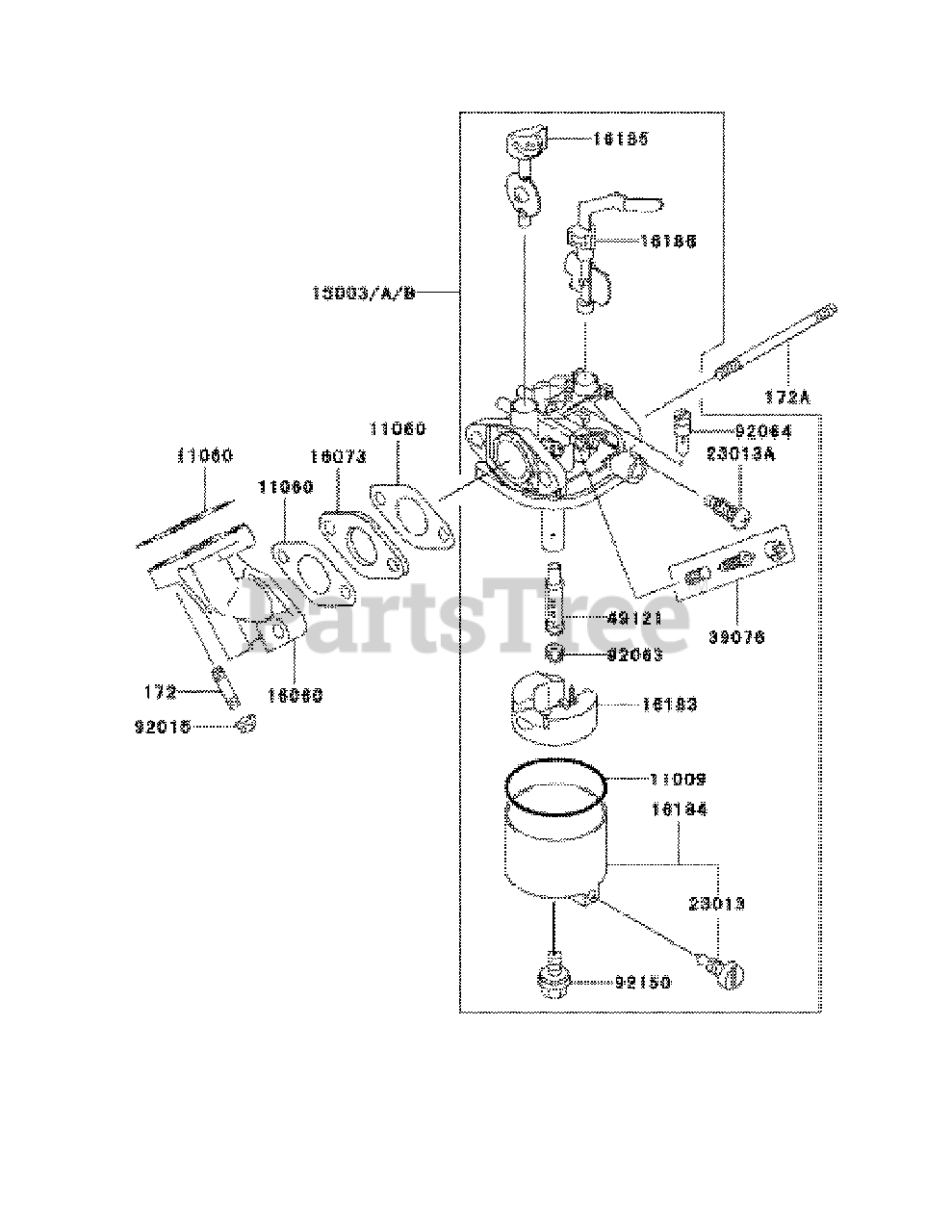

Kawasaki FE120D-CS04 Carburetor Parts Diagram

  • Title

11009

Cub Cadet KM-11009-2919

GASKET

$10.99

$

In Stock, Qty 17

0

11060

Cub Cadet KM-11060-2051

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 7

0

15003

Cub Cadet KM-15003-2711

CARBURETOR-ASSY

$206.99

$

In Stock, only 4 left!

0

16060

Cub Cadet KM-16060-2160

PIPE-INTAKE

$23.99

$

In Stock, only 1 left!

0

16073

Cub Cadet KM-16073-2180

INSULATOR

$2.49

$

In Stock, only 2 left!

0

16183

Cub Cadet KM-16183-2005

FLOAT-ASSY

$49.99

$

Usually ships in 2-5 days

0

16184

Cub Cadet KM-16184-2002

CHAMBER-ASSY-FLOAT

$50.99

$

Usually ships in 2-5 days

0

16185

Cub Cadet KM-16185-2022

VALVE-ASSY-THROTTLE

$58.99

$

Usually ships in 2-5 days

0

16186

Cub Cadet KM-16186-2011

VALVE-ASSY-CHOKE

$57.99

$

Usually ships in 2-5 days

0

172

Cub Cadet KM-172G0618

BOLT-STUD, 6X18
(Superseded to KM-172BA0618)

$1.49

$

In Stock, only 1 left!

0

172A

Cub Cadet KM-172G0673

BOLT-STUD, 6X73

$

$

Not available

23013

Cub Cadet KM-23013-2053

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

23013A

Cub Cadet KM-23013-2054

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

39076

Cub Cadet KM-39076-2055

LIMITER

$12.99

$

Usually ships in 2-5 days

0

49121

Cub Cadet KM-49121-2212

NOZZLE-MAIN

$19.99

$

In Stock, only 1 left!

0

92015

Cub Cadet KM-92015-1193

NUT
(Superseded to KM-92015-1367)

$4.49

$

In Stock, only 2 left!

0

92063

Cub Cadet KM-92063-2315

JET-MAIN, #65

$15.99

$

Usually ships in 2-5 days

0

92064

Cub Cadet KM-92064-2086

JET-PILOT, #40

$14.99

$

Usually ships in 2-5 days

0

92150

Cub Cadet KM-92150-2209

BOLT

$7.49

$

In Stock, only 1 left!

0
