56A703OE750 - Cub Cadet 50 Gallon Sprayer (2010 & Before) General Assembly Parts Diagram

50 Gallon Sprayer

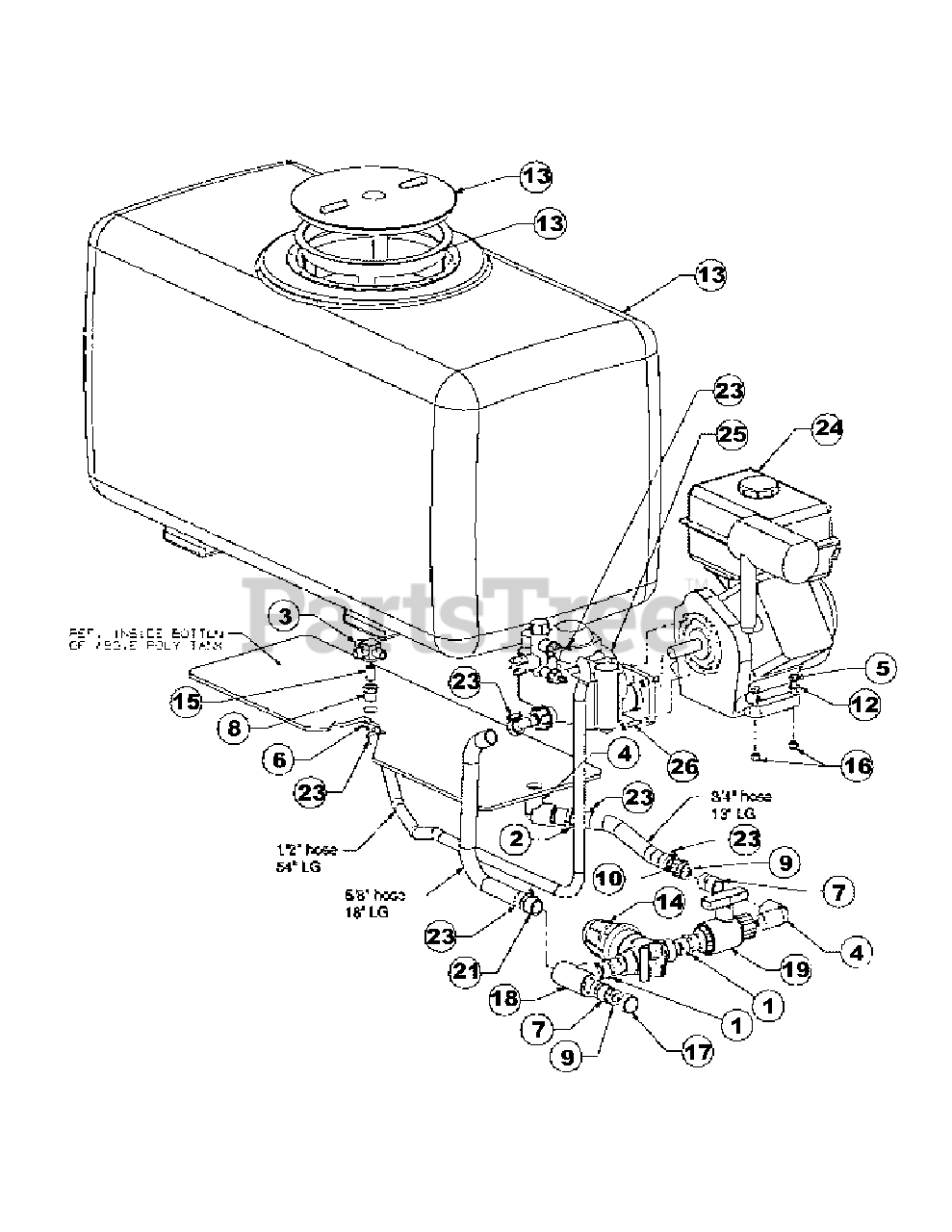

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00002406

Nipple, 3/4'' NPT

$

$

Not available

2

Cub Cadet 00003011

Adaptor, Male 3/4''

$

$

Not available

3

Cub Cadet 00005610

Jet Agitator

$130.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00006017

Street Elbow 3/4 NPT

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 00006129

Hex Cap Screw, 5/16-18 x 1-3/4

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00006145

Hose Barb, 1/2 NPT, 1/2 Nylon

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 00006303

Adaptor, 3/4 NPT, 3/4 Hose Thread

$14.99

$

In Stock, only 2 left!

0

8

Cub Cadet 00006430

Adaptor, 1/4(F) NPT 1/2 (M) NPT

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00007595

Rubber Washer, Hose 3/4

$7.99

$

In Stock, only 1 left!

0

10

Cub Cadet 00007687

Brass Repair Hose, Female 3/4

$

$

Not available

11

Cub Cadet N/A

Hose, 1/2'' (800 PSI) in inches

$

$

Currently unavailable

12

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

13

Cub Cadet 00010033

50 Gallon Tank Includes:

$

$

Not available

13

Cub Cadet 00031899

Tank Lid 10''

$

$

Not available

13

Cub Cadet 00003536

Strainer Basket 10''

$

$

Not available

14

Cub Cadet 00011233

Strainer PVC Line 3/4''

$134.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00011939

Close Nipple, 1/4(M) NPT

$

$

Not available

16

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

17

Cub Cadet 00012664

Brass Hose Cap, 3/4''

$6.99

$

In Stock, only 1 left!

0

18

Cub Cadet 00016465

Tee, 3/4 NPT

$

$

Not available

19

Cub Cadet 00019013

Ball Valve

$

$

Not available

20

Cub Cadet N/A

Hose, 5/8'' in inches

$

$

Currently unavailable

21

Cub Cadet 00031785

Hose Barb, 3/4 NPT x 5/8 Nylon

$

$

Not available

22

Cub Cadet N/A

Hose, 3/4'' in inches

$

$

Currently unavailable

23

Cub Cadet 01000216

Hose Clamp, 1/2, 7/8

$

$

Not available

24

Cub Cadet 01001000

Engine, 4-HP Kawasaki Recoil Start

$

$

Not available

25

Cub Cadet 01005668

Pump

$1964.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01008928

Socket Head Cap Screw, M-8-1.25 x 25mm

$

$

Not available

Cub Cadet KM-11013-2132

Air Filter

Note: Not shown

$20.99

$

In Stock, Qty 14

0

Cub Cadet KM-11013-2133

Pre Filter

Note: Not shown

$6.99

$

In Stock, Qty 5

0

Cub Cadet KM-BPR5ES

Spark Plug

Note: Not shown

$3.49

$

In Stock, Qty 20+

0

Cub Cadet KM-11060-2037

Muffler Gasket

Note: Not shown

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KM-49069-22679X

Muffler Assembly

Note: Not shown

$

$

Not available

Cub Cadet KM-49019-2095

Fuel Filter

Note: Not shown

$6.49

$

In Stock, only 1 left!

0

Cub Cadet KM-11013-2124

Foam Wrap

Note: Not shown

$9.99

$

Usually ships in 2-5 days

0
