56A703OE750 - Cub Cadet 50 Gallon Sprayer (2010 & Before) Frame Assembly Parts Diagram

50 Gallon Sprayer

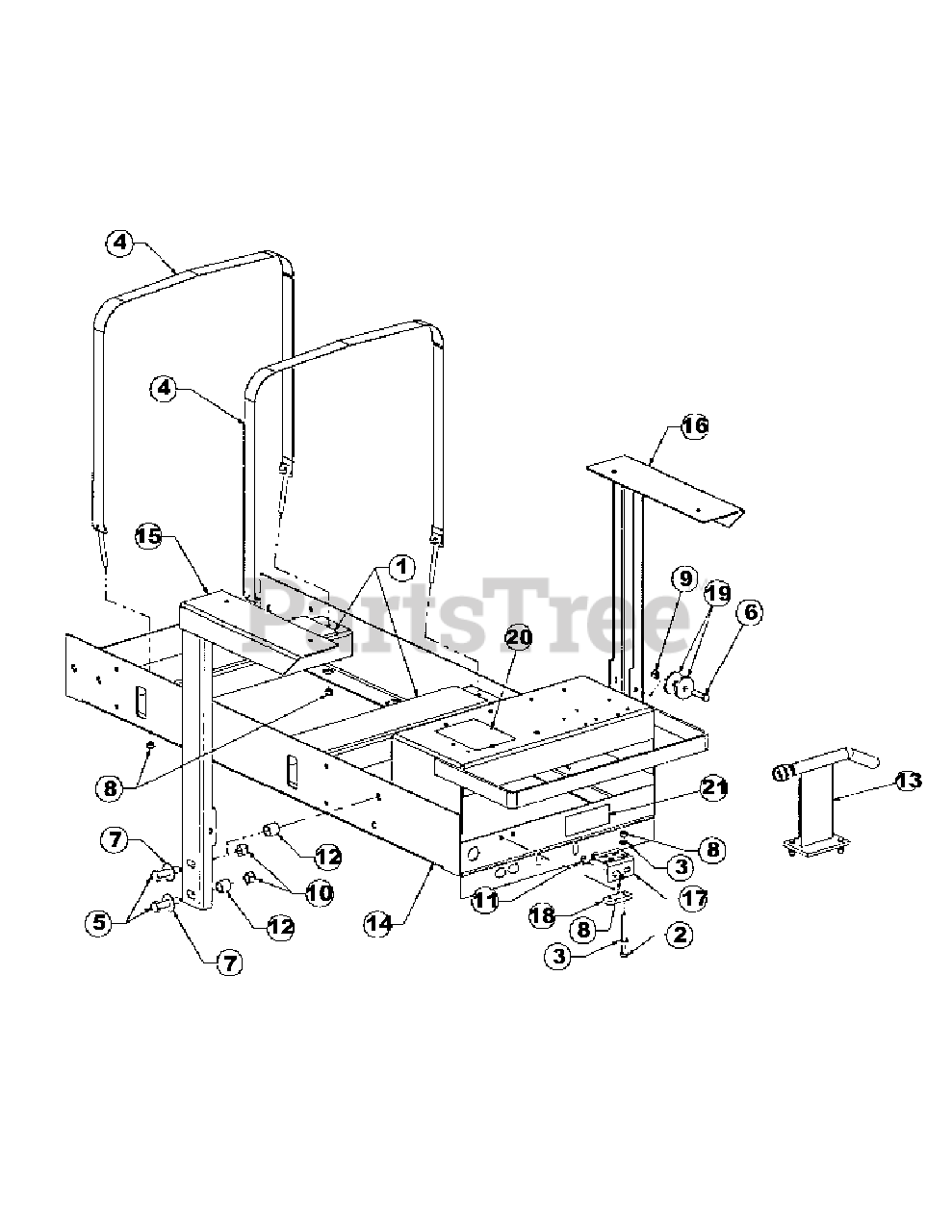

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 00008382

Adhesive Back Foam, 1/4,4

$

$

Not available

2

Cub Cadet 00009015

Hex Cap Screw, 5/16-18, 3-1/4

$

$

Not available

3

Cub Cadet 00009812

Flat Washer

$

$

Not available

4

Cub Cadet 00010836

50 Gal Strap Tank, w/3'' T-Bolt

$116.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00010956

Hex Cap Screw, 1/2-13 x 2.00

$

$

Not available

6

Cub Cadet 00011444

Hex Cap Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 9

0

7

Cub Cadet 00011459

Flat Washer, 1/2

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet 712-04065

Nylock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 00012428

Nut, 1/2-13, Nylon Insert

$6.99

$

In Stock, only 2 left!

0

11

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x 3/4

$6.99

$

In Stock, only 3 left!

0

12

Cub Cadet 750-3065

Spacer, .635ID x .86

$9.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 01001047

Air Gap Filler Kit

$192.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02004726

Main Frame Assembly

$

$

Not available

15

Cub Cadet 02004727

Reel Support Assembly - LH

$

$

Not available

16

Cub Cadet 02004728

Reel Support Assembly - RH

$

$

Not available

17

Cub Cadet 02004729

Drain Mounting Bracket

$

$

Not available

18

Cub Cadet 02004730

Strainer Block Spacer

$

$

Not available

19

Cub Cadet 736-04131

Washer, .4375ID x 1.75OD x .25

$15.99

$

In Stock, only 1 left!

0

20

Cub Cadet 00030677

Decal, Saftey Procedures

$

$

Not available

21

Cub Cadet 777D05197

Decal, CCC, Small

$

$

Currently unavailable
