56A443TH750 - Cub Cadet XP Stand-On Spreader (2011) Kawasaki FJ180V-AS05 Carburetor Parts Diagram

XP Stand-On Spreader

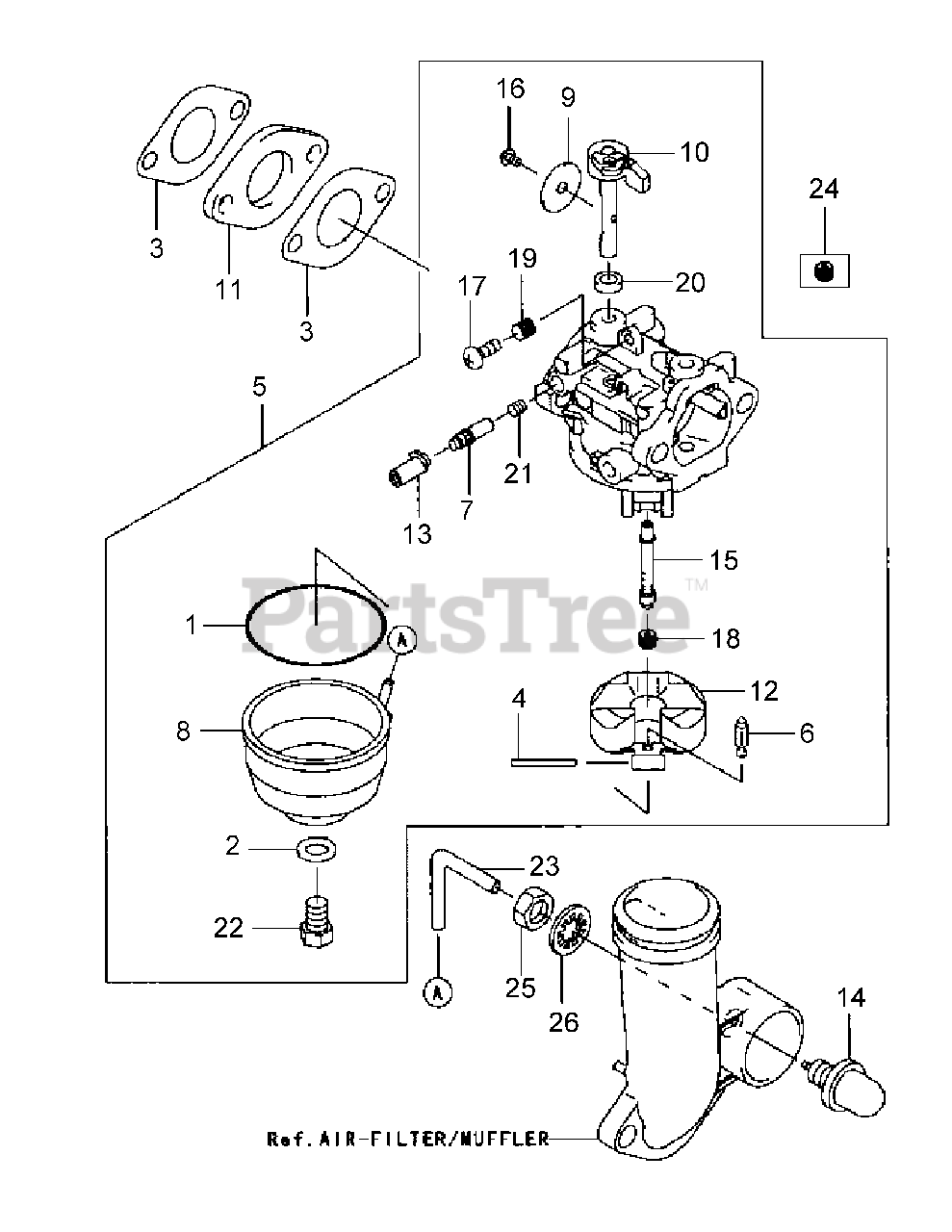

Kawasaki FJ180V-AS05 Carburetor Parts Diagram

  • Title

1

Cub Cadet KM-11060-2190

Gasket

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11061-7010

Gasket

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11061-7015

Gasket
(Superseded to KM-11061-2215)

$1.99

$

In Stock, Qty 20+

0

4

Cub Cadet KM-13107-7024

Shaft

$7.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-15003-7133

Carburetor Assy.
(Superseded to KM-15004-0994)

$279.99

$

Usually ships in 3-6 days

0

6

Cub Cadet KM-16009-2136

Needle Jet

$22.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-16014-7006

Pilot Air Screw

$

$

Not available

8

Cub Cadet KM-16020-7005

Float Chamber

$35.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-16025-7007

Throttle Valve

$9.49

$

In Stock, Qty 20+

0

10

Cub Cadet KM-16041-7019

Throttle Shaft

$33.99

$

In Stock, Qty 20+

0

11

Cub Cadet KM-16073-7006

Insulator
(Superseded to KM-16073-2240)

$2.49

$

In Stock, Qty 20+

0

12

Cub Cadet KM-16183-2002

Float Assy.

$21.99

$

In Stock, only 3 left!

0

13

Cub Cadet KM-39076-7001

Limiter Cap

$8.49

$

In Stock, only 2 left!

0

14

Cub Cadet KM-49043-7002

Priming Pump

$7.49

$

In Stock, Qty 20+

0

15

Cub Cadet KM-49121-7006

Main Nozzle

$

$

Not available

16

Cub Cadet KM-92009-2083

Screw

$2.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92009-2349

Screw

$1.49

$

In Stock, only 3 left!

0

18

Cub Cadet KM-92063-7048

Main Jet, #76

$19.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KM-92081-2234

Spring

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet KM-92093-2100

Seal

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet KM-92145-7015

Spring

$2.49

$

In Stock, Qty 9

0

22

Cub Cadet KM-92172-7003

Screw

$13.99

$

In Stock, only 1 left!

0

23

Cub Cadet KM-92192-7121

Tube, 2x5x65
(Superseded to KM-92192-7163)

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet KM-99916-7006

Main Jet Kit

$23.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KM-315B1000

Hex Nut, Fine
(Superseded to KM-315AA1000)

$0.99

$

In Stock, Qty 10

0

26

Cub Cadet KM-463H1000

Toothed Washer
(Superseded to KM-463EA1000)

$0.99

$

In Stock, Qty 9

0
