56A443TH750 - Cub Cadet XP Stand-On Spreader (2011) Control Assembly Parts Diagram

XP Stand-On Spreader

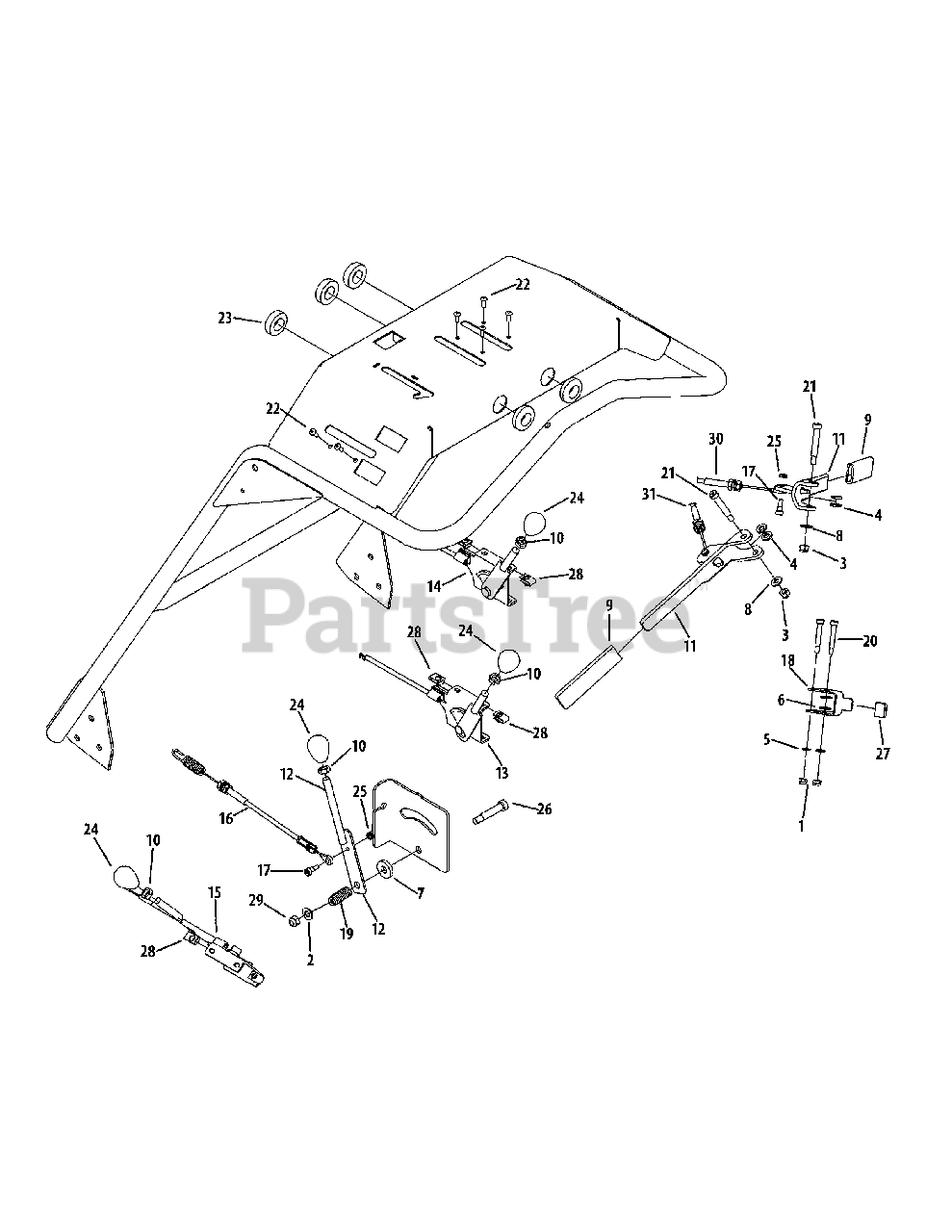

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 712-0161

Nut, #10-24

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00011075

Flat Washer, 5/16

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012152

Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 00016771

Flat Washer, 3/16

$

$

Not available

6

Cub Cadet 00060033

Flat Washer, 1/4
(Superseded to 736-05152)

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00083192

Flat Washer, .390 x 1.0 x .180
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 936-0463

Flat Washer, 1/4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

9

Cub Cadet 01001714

Control Sleeve

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01002511

Nut, 3/8-16

$5.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01007997-0637

FNR Lever

$

$

Not available

12

Cub Cadet 01009483

On/Off Lever

$41.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01009169P

3rd-Hole Control

$54.99

$

In Stock, Qty 6

0

14

Cub Cadet 01009171

Remote Deflector Cable
(Superseded to 01009171P)

$76.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01009172

Throttle Control

$52.99

$

In Stock, only 1 left!

0

16

Cub Cadet 01009251

On/Off Cable
(Superseded to 01009251P)

$74.99

$

In Stock, only 4 left!

0

17

Cub Cadet 01009322

Shoulder Bolt, 1/4 x 1/4

$

$

Not available

18

Cub Cadet 01009323-0637

Speed Control Lever

$

$

Not available

19

Cub Cadet 01009333

Compression Spring, .625 x .390 x 1.2
(Superseded to 732-3065)

$3.99

$

In Stock, only 1 left!

0

20

Cub Cadet 01009358

Shoulder Bolt, 1/4 x 1-1/4

$

$

Not available

21

Cub Cadet 01009361

Shoulder Bolt, 5/16 x 1-1/2

$

$

Not available

22

Cub Cadet 01009363

Hex Screw, 10-24 x 1/2

$

$

Not available

23

Cub Cadet 01009365

Rubber Grommet, .750 x 1.375 x .1

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01009369

Lever Knob, 3/8-16

$14.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01009377

Washer Nut, 10-24

$5.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01009459

Shoulder Bolt, 3/8 x 1-1/2

$12.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01009482

Speed Control Lever Sleeve

$

$

Not available

28

Cub Cadet 01009931

Nut, 10-24
(Superseded to 712-05009)

$

$

Not available

29

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 946-04566

Forward Control Cable, 74.25

$69.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 946-04567

Reverse Control Cable, 94.25

$73.99

$

Usually ships in 3-6 days

0
