56A443TH750 - Cub Cadet XP Stand-On Spreader (2008 & Before) Front Frame Assembly (2008) Parts Diagram

XP Stand-On Spreader

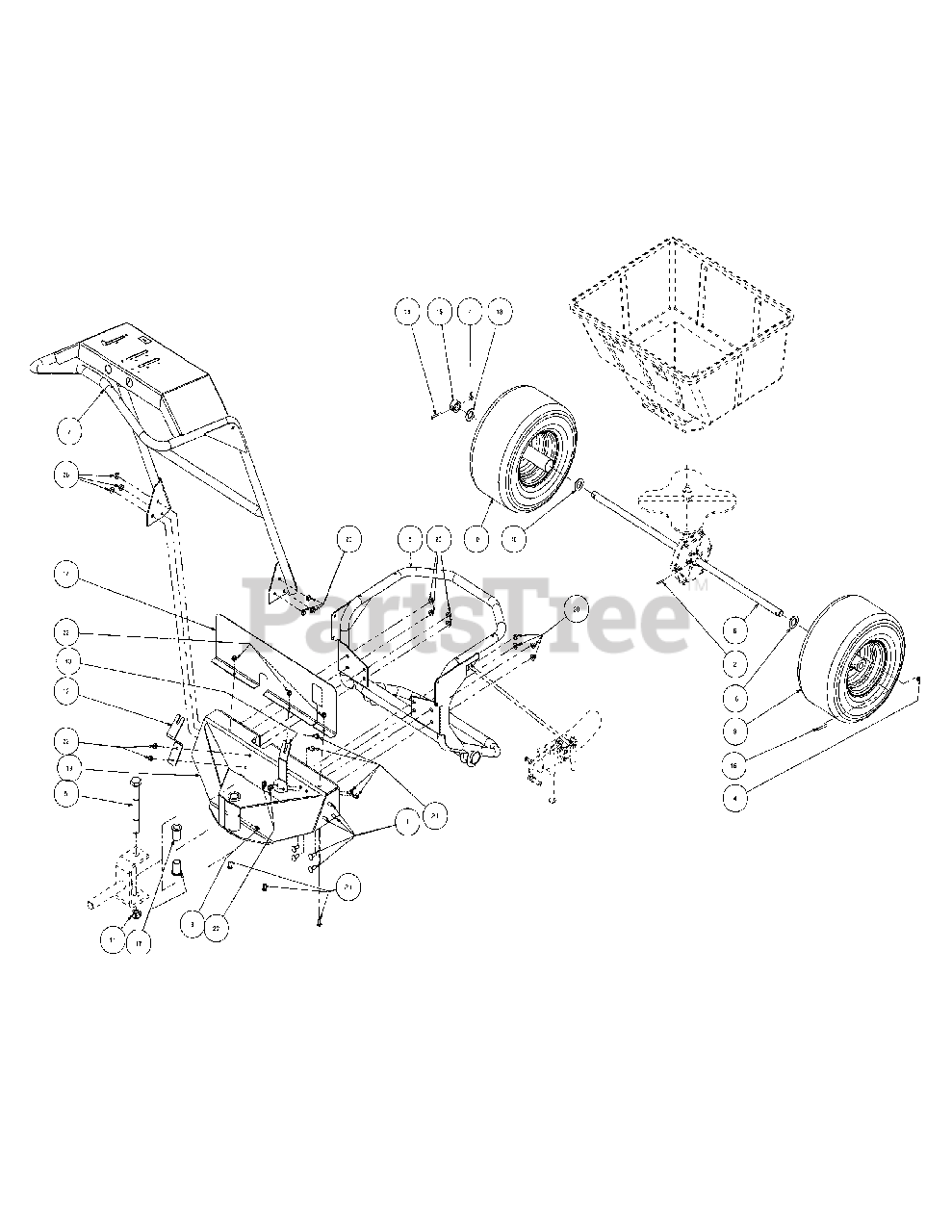

Front Frame Assembly (2008) Parts Diagram

  • Title

1

Cub Cadet 00031485

Carriage Bolt, 5/16-18 x 3/4, SS

$

$

Not available

2

Cub Cadet 00060019

Roll Pin, 5/32 x 1-1/4, SS
(Superseded to 715-05054)

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

4

Cub Cadet 712-0161

Nut, #10-24

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet 01004185

Hex Cap Screw, 3/4-16 x 6.50

$41.99

$

In Stock, only 3 left!

0

6

Cub Cadet 01007833

Front Axle

$178.99

$

In Stock, only 3 left!

0

7

Cub Cadet 01007840-0637

Handle Weldment

$

$

Not available

8

Cub Cadet 01009341

Front Frame bearing Assembly Includes:

$

$

Not available

8

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

8

Cub Cadet 00060041

Axle Bearing

$6.49

$

In Stock, Qty 16

0

9

Cub Cadet 01009141

Drive Wheel Assmebly, 13 x 6.5-6

$

$

Not available

10

Cub Cadet 01009167

Idler Wheel Assembly, 13 x 6.5-6

$559.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01009255

Jam Nut, 3/4-16

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 01009256

Shut-Off Cable bracket

$

$

Not available

13

Cub Cadet 01009257

Deflector Cable bracket

$44.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01009304

Shield, SS

$

$

Not available

15

Cub Cadet 01009499

Shaft Collar

$33.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01009831

Screw, 10-24 x 1.25

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01009896

Bushing

$7.99

$

In Stock, only 4 left!

0

18

Cub Cadet 01009897

Washer, .89ID x 1.5OD x .09, SS

$6.49

$

In Stock, Qty 6

0

19

Cub Cadet 02002019

Pivot Bracket Weldment

$

$

Not available

20

Cub Cadet 02004352

Nut, 5/16-18, Flange Whiz, SS

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02004353

Carriage Bolt, 1/4-20 x 3/4, SS

$

$

Not available

22

Cub Cadet 02004354

Nut, 1/4-20 Flange Whiz, SS

$

$

Not available
