56A443TH750 - Cub Cadet XP Stand-On Spreader (2008 & Before) FJ180V-AS08 Carburetor Parts Diagram

XP Stand-On Spreader

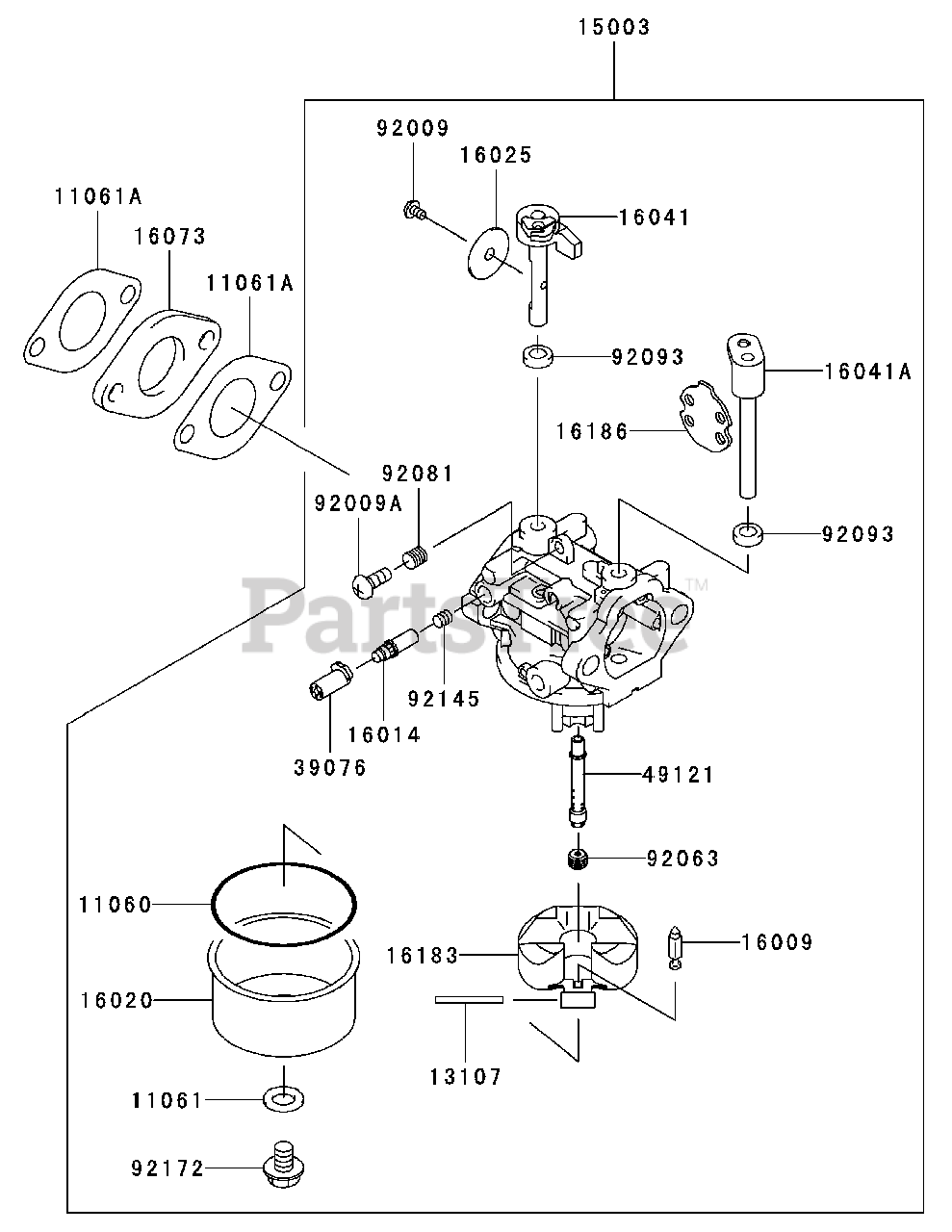

FJ180V-AS08 Carburetor Parts Diagram

  • Title

11060

Cub Cadet KM-11060-2190

GASKET

$4.49

$

In Stock, Qty 20+

0

11061

Cub Cadet KM-11061-7010

GASKET,SCREW

$3.49

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7015

GASKET
(Superseded to KM-11061-2215)

$1.99

$

In Stock, Qty 20+

0

13107

Cub Cadet KM-13107-7024

SHAFT

$7.99

$

In Stock, only 1 left!

0

15003

Cub Cadet KM-15003-7132

CARBURETOR-ASSY
(Superseded to KM-15004-0993)

$218.99

$

In Stock, Qty 6

0

16009

Cub Cadet KM-16009-2136

NEEDLE-JET

$22.99

$

In Stock, Qty 20+

0

16014

Cub Cadet KM-16014-7008

SCREW-PILOT AIR

$12.99

$

Usually ships in 2-5 days

0

16020

Cub Cadet KM-16020-7004

CHAMBER-FLOAT

$34.99

$

Usually ships in 2-5 days

0

16025

Cub Cadet KM-16025-7007

VALVE-THROTTLE

$9.49

$

In Stock, Qty 20+

0

16041

Cub Cadet KM-16041-7019

SHAFT-CARBURETOR

$33.99

$

In Stock, Qty 20+

0

16041A

Cub Cadet KM-16041-7020

SHAFT-CARBURETOR

$11.99

$

Usually ships in 2-5 days

0

16073

Cub Cadet KM-16073-7006

INSULATOR
(Superseded to KM-16073-2240)

$2.49

$

In Stock, Qty 20+

0

16183

Cub Cadet KM-16183-2002

FLOAT-ASSY

$21.99

$

In Stock, only 4 left!

0

16186

Cub Cadet KM-16186-7003

VALVE-ASSY-CHOKE

$11.99

$

In Stock, only 1 left!

0

39076

Cub Cadet KM-39076-7001

LIMITER

$8.49

$

In Stock, only 2 left!

0

49121

Cub Cadet KM-49121-7008

NOZZLE-MAIN

$34.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-2083

SCREW

$2.49

$

In Stock, Qty 20+

0

92009A

Cub Cadet KM-92009-2349

SCREW

$1.49

$

In Stock, only 3 left!

0

92063

Cub Cadet KM-92063-7049

JET-MAIN,#74

$10.99

$

Usually ships in 2-5 days

0

92081

Cub Cadet KM-92081-2234

SPRING

$4.49

$

In Stock, only 4 left!

0

92093

Cub Cadet KM-92093-2100

SEAL

$3.49

$

In Stock, Qty 20+

0

92145

Cub Cadet KM-92145-7015

SPRING

$2.49

$

In Stock, Qty 9

0

92172

Cub Cadet KM-92172-7002

SCREW

$7.49

$

In Stock, Qty 5

0
