56A443TH750 - Cub Cadet XP Stand-On Spreader (2008 & Before) Drive Assembly Parts Diagram

XP Stand-On Spreader

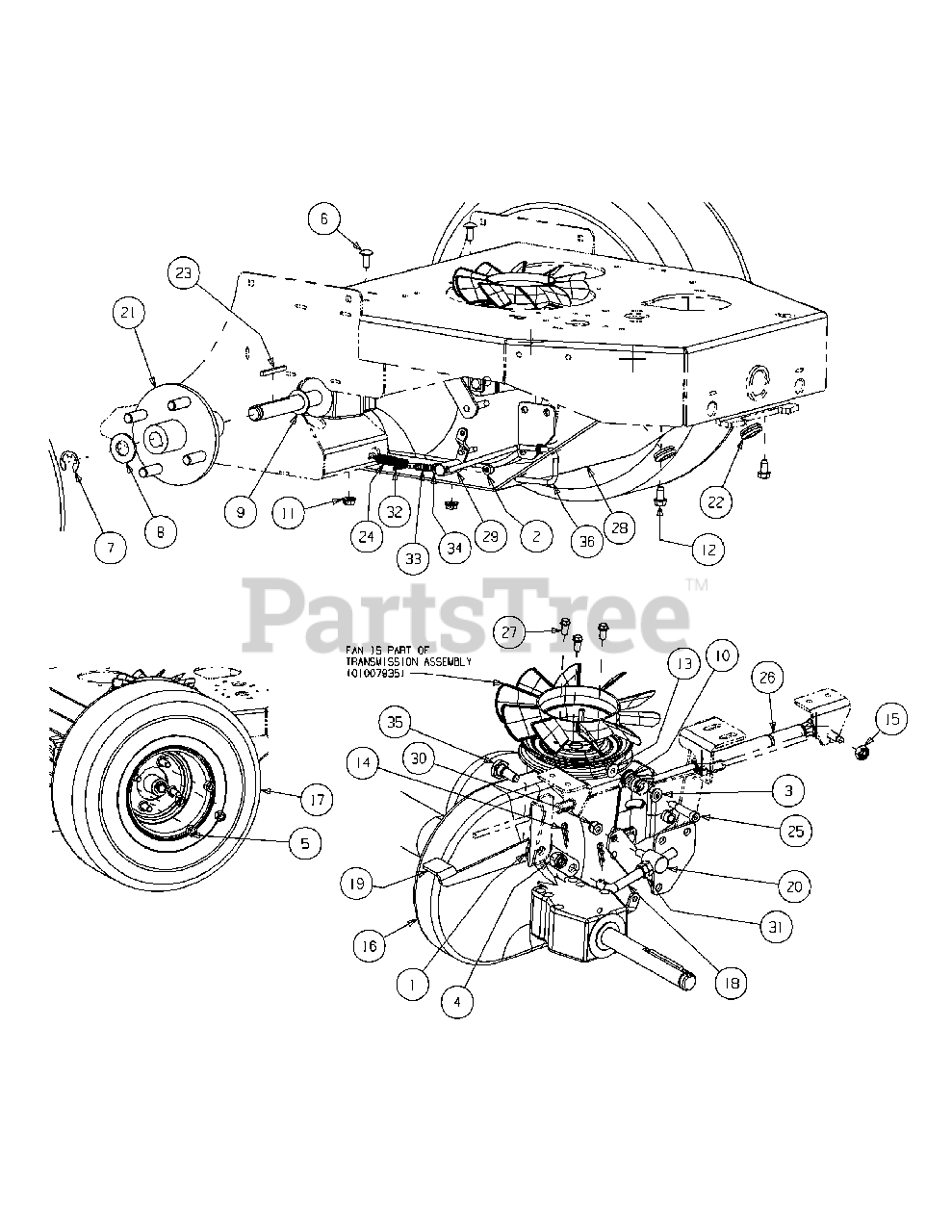

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 00011459

Washer, 1/2

$5.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012152

Lock Nut w/Nylon Insert

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012169

Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 712-04065

Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00012187

Lug Nut, 1/2-20
(Superseded to 712-04311)

$3.99

$

In Stock, Qty 8

0

6

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .75

$6.99

$

In Stock, only 3 left!

0

7

Cub Cadet 00021961

E-Ring

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00023796

Washer, .781 ID x 2.00 OD x .105

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00060017

Washer, .06 x .776 x 1.25, SS
(Superseded to 736-05151)

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 936-0463

Washer, 1/4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 712-3004A

Nut, 5/16-18, Hex Flange Lock

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 912-3027

Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Long
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 01003561

Nut, M8, Top Lock

$

$

Not available

16

Cub Cadet 01007935P

Transmission, Hydro Gear

$1432.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01008866

Wheel Assembly, 18 x 6.50-8

$

$

Not available

18

Cub Cadet 01009148

Brake Lever Rod

$

$

Not available

19

Cub Cadet 01009149

Brake Lever

$

$

Not available

20

Cub Cadet 01009219

Pivot Brake Joint

$

$

Not available

21

Cub Cadet 01009246

Wheel Hub Assembly

$109.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01009366

Rubber Grommet

$5.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 01009458

Key, 3/16 x 3/16 x 2

$

$

Not available

24

Cub Cadet 01009475

Extension Spring

$

$

Not available

25

Cub Cadet 01009737

Shoulder Bolt, 5/16 x 1.00

$

$

Not available

26

Cub Cadet 01009829

Damper Assembly

$131.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01010129

Self Tapping Screw, 1/4-20 x .75

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 703-07012-0637

Transmission Skid Plate

$

$

Not available

29

Cub Cadet 711-05108

Ferule, .625 x .25

$

$

Not available

30

Cub Cadet 912-0429

Nut, 5/16-18, Nylock
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0711

Hex Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 914-0507

Cotter Pin, 3/32 x .750 Long

$4.49

$

In Stock, Qty 17

0

33

Cub Cadet 732-0437

Spring, 0.340 x 1.0 LG

$10.99

$

In Stock, only 1 left!

0

34

Cub Cadet 936-0175

Washer, .265 x .562 x .025

$3.99

$

In Stock, only 3 left!

0

35

Cub Cadet 938-0380

Shoulder Bolt, .500 x .270, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

36

Cub Cadet 747-05070

Bypass Rod

$22.99

$

Usually ships in 3-6 days

0
