56A35D4K750 - Cub Cadet Tank Ride-On Sprayer Spreader Spray Boom Assembly Parts Diagram

Tank Ride-On Sprayer Spreader

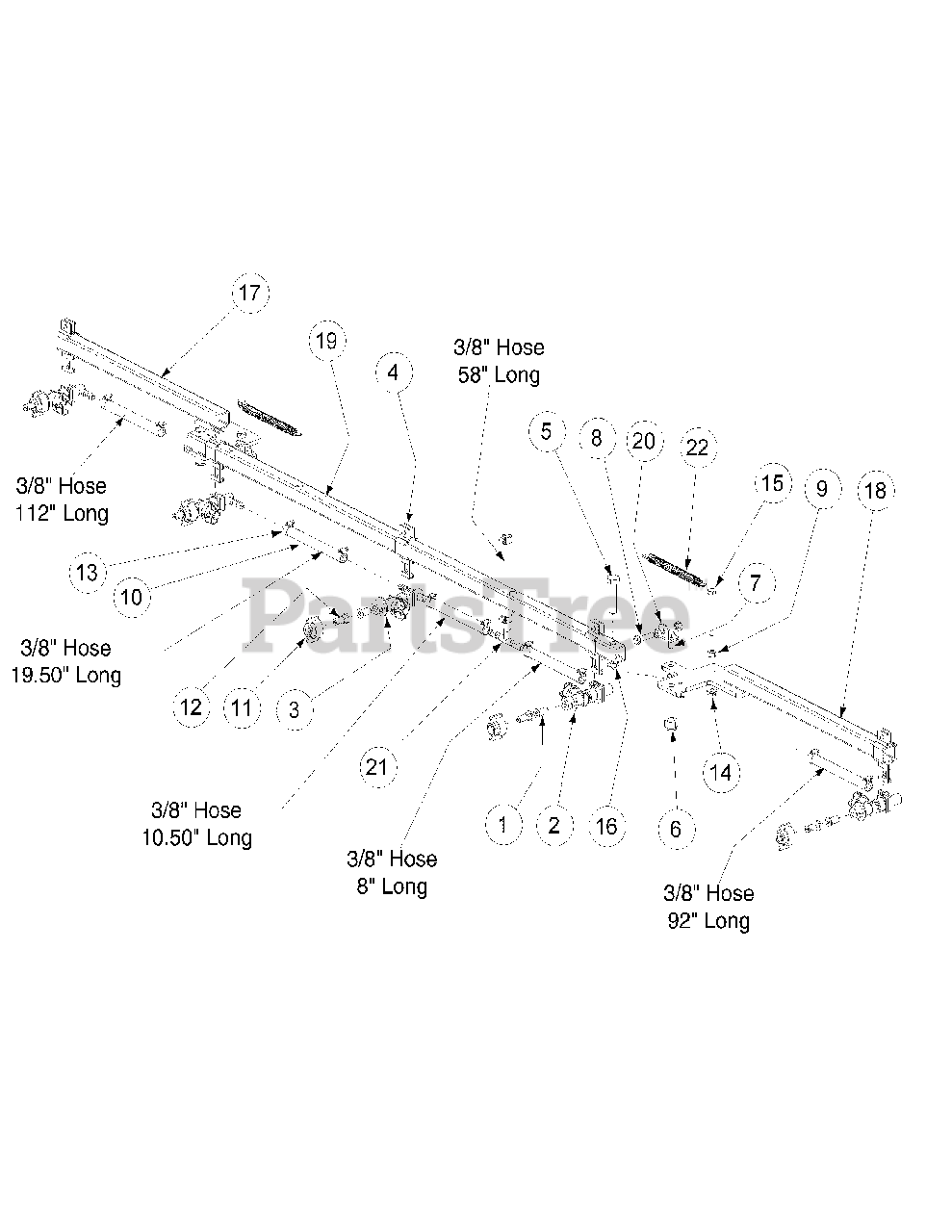

Spray Boom Assembly Parts Diagram

  • Title

1

Cub Cadet 00005173

Strainer Screen, 50 Mesh, SS

$6.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00009288

Nozzle, Single Body, Dry Boom

$36.99

$

In Stock, only 2 left!

0

3

Cub Cadet 00009314

Nozzle, Double Body, Dry Boom

$

$

Not available

4

Cub Cadet 00009679

Clamp, Body Nozzle

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00010956

HHCS, 1/2-13 x 2.00

$

$

Not available

6

Cub Cadet 00012428

Nut, 1/2-13

$6.99

$

In Stock, only 2 left!

0

7

Cub Cadet 00013092

HHCS, 5/16-18 x 1.0
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 00013116

HHCS, 5/16-18 x 1.25

$5.99

$

In Stock, only 1 left!

0

9

Cub Cadet 00013433

Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet n/a

Hose, 3/8"

Note: (purchase locally)

$

$

Currently unavailable

11

Cub Cadet 00480210

Cap
(Superseded to 00480210P)

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 00480213

Nozzle, Turbo Flood Jet

$42.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01000215

Hose Clamp

$

$

Not available

14

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01001972

HHCS, 5/16-18 x 2.75

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01005282

Washer, .50 ID x .75 OD x .031

$

$

Not available

17

Cub Cadet 01008892-0637

Boom Arm Assembly, RH

$69.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01008894-0637

Boom Arm Assembly, LH

$72.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01008896-0637

Boom Mount

$118.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01009223-0637

Boom Stop Arm

$

$

Not available

21

Cub Cadet 01009337

T-Fitting, 3/8

$

$

Not available

22

Cub Cadet 01009376

Extension Spring

$10.99

$

Usually ships in 3-6 days

0
