56A35D4K750 - Cub Cadet Tank Ride-On Sprayer Spreader Shut-Off Assembly Parts Diagram

Tank Ride-On Sprayer Spreader

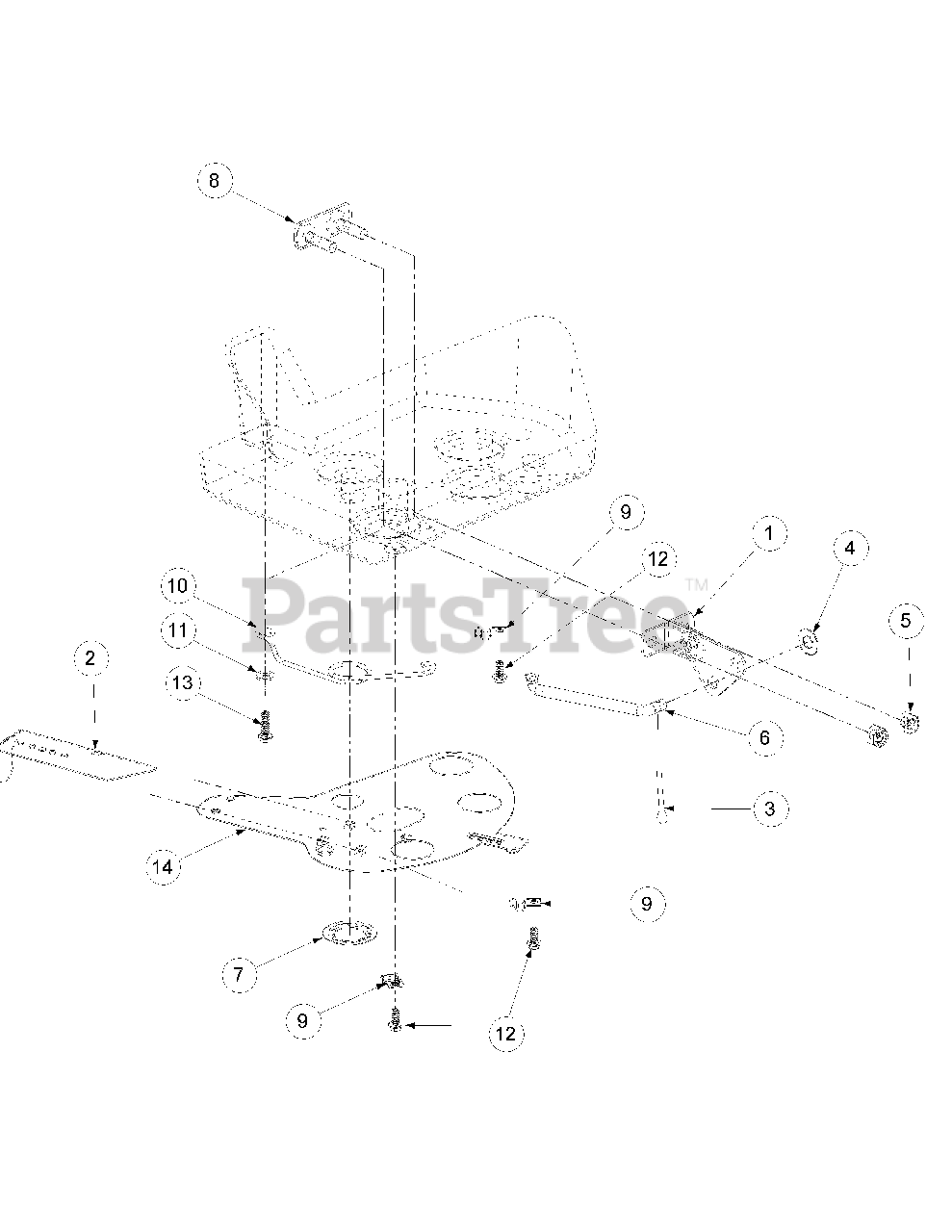

Shut-Off Assembly Parts Diagram

  • Title

1

Cub Cadet 00017288

Pivot Lever Assembly

$

$

Not available

2

Cub Cadet 00020492

Slide Lever
(Superseded to 703-10296)

$8.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 01009945

Cotter Pin, 3/32 x 1/2 Lg, SS

$

$

Not available

4

Cub Cadet 00060033

Flat Washer, 1/4"
(Superseded to 736-05152)

$7.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-0324

Nylock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

6

Cub Cadet 00060061

Pivot Lever Rod
(Superseded to 747-06600)

$27.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01004186

Spring Clip
(Superseded to 726-05074)

$11.99

$

In Stock, only 1 left!

0

8

Cub Cadet 01004539

Two Hole Weldment Plate
(Superseded to 680-00405)

$35.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01004955

Plate Shut-off Clip
(Superseded to 726-05075)

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 01004956

Plate Shut-off Spring

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01005630

Flat Washer
(Superseded to 736-05155)

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01005631

Index Washer Hex Screw, 8 x 3/8
(Superseded to 710-06434)

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01005632

Index Washer Hex Screw, 8 x 5/8
(Superseded to 710-06435)

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 01006825

Shut-off Plate
(Superseded to 703-10303)

$53.99

$

Usually ships in 3-6 days

0
