56A35D4K750 - Cub Cadet Tank Ride-On Sprayer Spreader Hydro Pump Assembly Parts Diagram

Tank Ride-On Sprayer Spreader

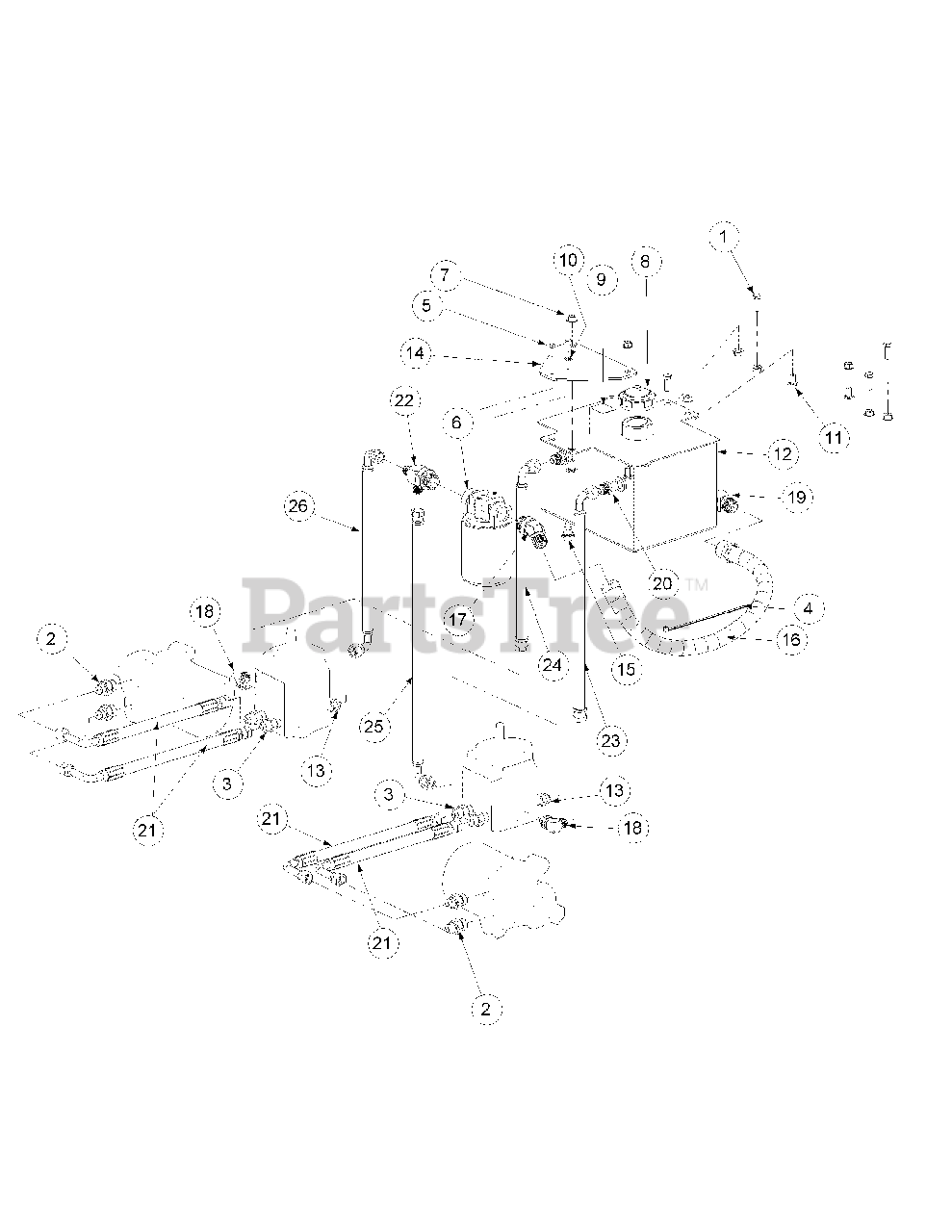

Hydro Pump Assembly Parts Diagram

  • Title
1

Cub Cadet 00006144

Hex Cap Screw, 3/8-16, 1

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012288

Fitting 1/2 x 3/4 - O Ring

$

$

Not available

3

Cub Cadet 00012426

Fitting 1/2 x 1/2 - O Ring to Flare

$12.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 00017665P

Filter Head 3/4 includes:

$

$

Not available

6

Cub Cadet 01004166

Filter

Note: (not shown)

$50.99

$

In Stock, only 4 left!

0

7

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00030261

Cap, Hydro Oil Tank

$36.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 02002041

Decal Oil Only 15W40

$

$

Not available

10

Cub Cadet 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01004516

Hydraulic Tank Assembly

$

$

Not available

13

Cub Cadet 01002606

Fitting Connector, 1/2 x 3/8

$

$

Not available

14

Cub Cadet 01001650

Oil Filter Mounting Plate

$

$

Not available

15

Cub Cadet 738-0940

Oil Pan Drain Plug w/ Seal

$8.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 01004268

Tank to Filter Hose Assembly

$

$

Not available

17

Cub Cadet 01004272

Fitting, 3/4 x3/4 x 45 degree

$

$

Not available

18

Cub Cadet 01004542

Elbow Fitting, 3/8 O-ring, 1/2 Flare

$36.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01004702

Fitting Elbow, 1/2 x 1/2

$

$

Not available

20

Cub Cadet 01006353

Fitting, 3/8 NPT, 1/2 Flare

$

$

Not available

21

Cub Cadet 01008052

Long Pressure Hose Assembly

$135.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01006959

Tee Fitting, 3/4 x 1/2 x 1/2

$

$

Not available

23

Cub Cadet 01006901

17.75" Return Hose Assembly, RH

$

$

Not available

24

Cub Cadet 01006902

14.25" Return Hose Assembly, LH

$114.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01006914

21.25" Supply Hose Assembly, RH

$

$

Not available

26

Cub Cadet 01006916

15.50" SupplyHose Assembly, LH

$186.99

$

Usually ships in 3-6 days

0
