56A35D4K750 - Cub Cadet Tank Ride-On Sprayer Spreader Electrical Assembly Kawasaki Parts Diagram

Tank Ride-On Sprayer Spreader

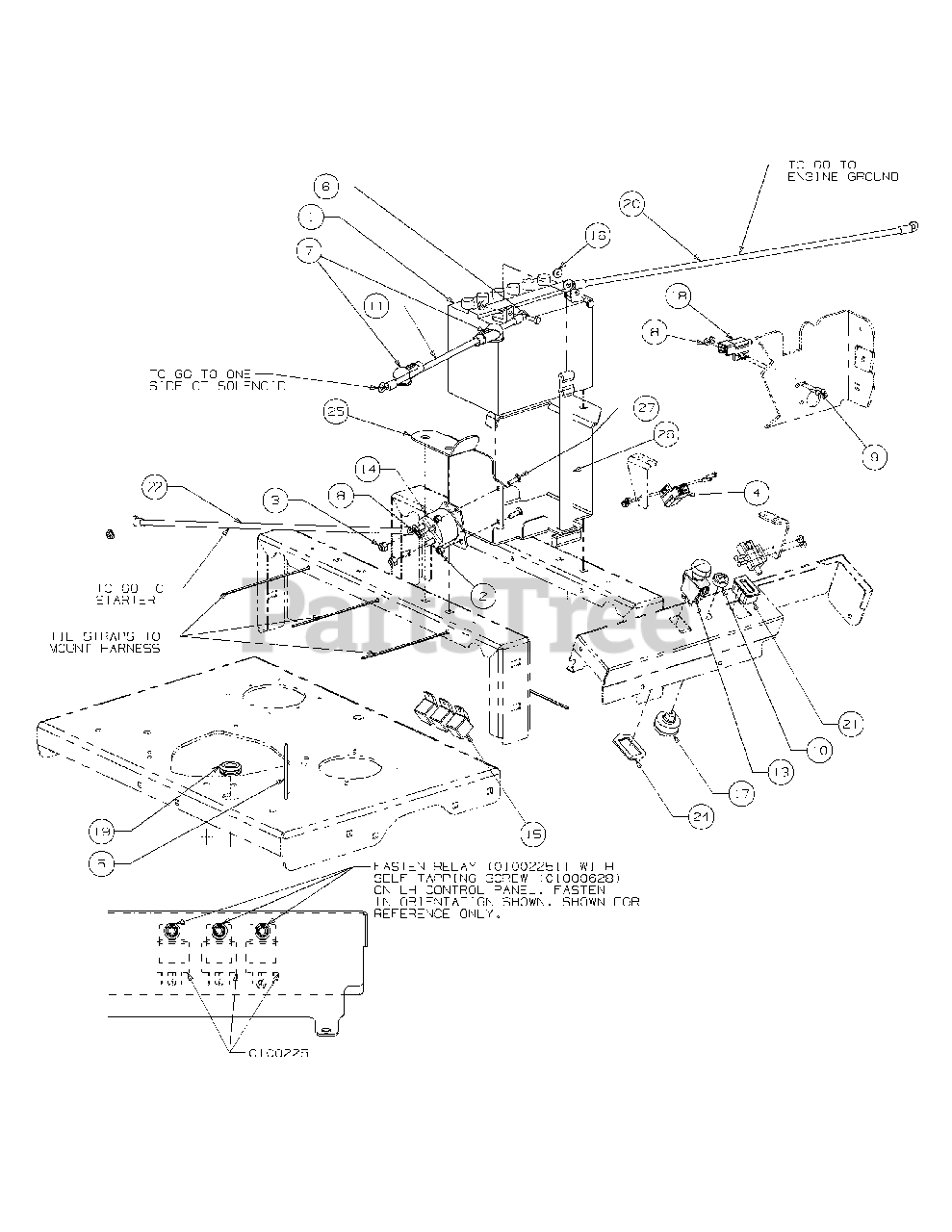

Electrical Assembly Kawasaki Parts Diagram

  • Title

1

Cub Cadet 925-1707D

Battery, 12V 225CCA 30 Min

$

$

Not available

2

Cub Cadet 00012152

Lock Nut w/Nylon Insert

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 00012242

Switch, Safety
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

5

Cub Cadet 725-0157

Tie, Cable, 3/16 x .05 x 7.4"

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet 00013131

Screw, Hex, Cap, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

7

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST, Red

$9.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00014608

Nut, Lock, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

9

Cub Cadet 00030906

Screw, Phillips Head, Machine, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

11

Cub Cadet 00095773

Cable, Battery, Red, 15"

$

$

Not available

13

Cub Cadet 01002111

Switch, Electric, PTO
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 12

0

14

Cub Cadet 925-3001

Solenoid Magnetic Switch

$58.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01002251

Relay, 12V 40A

$57.99

$

In Stock, only 2 left!

0

16

Cub Cadet 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 01003581P

Switch, Ignition, 6 Pin

$69.99

$

In Stock, Qty 7

0

17

Cub Cadet 725-1341B

Key, Ignition

Note: (not shown)

$10.99

$

In Stock, only 1 left!

0

18

Cub Cadet 01003712

Switch, Plunger
(Superseded to 725-3223)

$18.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01004040

Grommet, .75 ID
(Superseded to 735-04285)

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01004078

Cable, Battery Black, 28"

$38.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 925-04893

Meter, Hour includes:
(Superseded to 925-04893A)

$165.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02004259

Clip

Note: (not shown)

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01005406

Cable, Battery Red, 32"

$

$

Not available

24

Cub Cadet 01009905

Bracket, PTO Switch Retainer

$27.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02000897-0637

Mount Bracket, Battery

$

$

Not available

26

Cub Cadet 723-3064

Strap, Battery

$29.99

$

In Stock, only 4 left!

0

27

Cub Cadet 00017584

Carriage Bolt, 1/4-20 x .750

$

$

Not available

Cub Cadet 01001811

Hourmeter, Harness
(Superseded to 929-04195)

Note: (not shown)

$8.49

$

Usually ships in 3-6 days

0

Cub Cadet 01006804

Harness Assembly

Note: (not shown)

$

$

Not available
