56A35D4K750 - Cub Cadet Tank Ride-On Sprayer Spreader Brake Assembly Parts Diagram

Tank Ride-On Sprayer Spreader

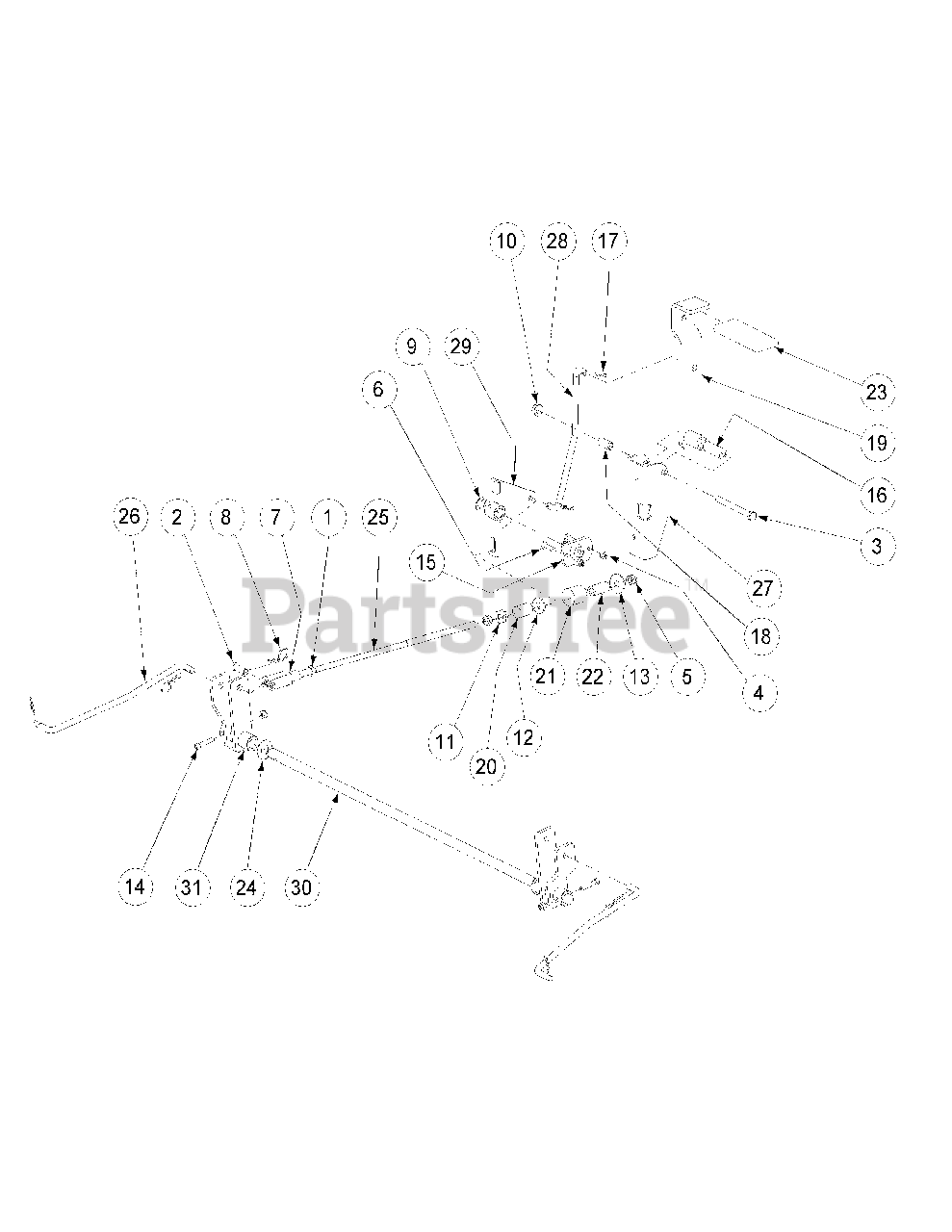

Brake Assembly Parts Diagram

  • Title
1

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00009678

Clevis Pin, 3/8 x 1-1/8
(Superseded to 711-05735)

$12.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00011888

Hex Cap Screw, 3/8-16 x 3-1/2

$3.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012152

Lock Nut w/Nylon Insert

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet 712-04065

Nylock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0597

Hex Cap Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 13

0

7

Cub Cadet 00021955

Yoke, 3/8-16

$42.99

$

In Stock, only 1 left!

0

8

Cub Cadet 00021956

Hair Pin, 3/8" - 1/2"
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00021962

E-Ring, 5/8" #5113-62

$

$

Not available

10

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01000100

Shoulder Nut

$

$

Not available

12

Cub Cadet 736-3052

Flat Washer, .406 ID x 1.0 OD x .105

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

14

Cub Cadet 01002540

Socket Screw, 1/4-20 x 1.25

$

$

Not available

15

Cub Cadet 00021906

Bellecrank Pivot, Weldment

$164.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01002751

Spacer, .39ID x .63OD x 1.75LG

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Lg
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 750-0434

Spacer, .375 ID x .50 x 1.02 Lg

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01003595

Brake Handle

$

$

Not available

20

Cub Cadet 01003574

Neutral Brake Spring

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02004076

Force Brake Spring

$

$

Not available

22

Cub Cadet 01003576

Center Brake Hose

$

$

Not available

23

Cub Cadet 01003716

Parking Brake Grip

$36.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01004003

Flat Washer, 5/8
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 01006856

Connector Rod, 3/8 OD x 16.88 Lg

$

$

Not available

26

Cub Cadet 01007771

Rear Brake Linkage Rod

$23.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01008889

Parking Brake Mounting Bracket

$

$

Not available

28

Cub Cadet 01008927

Park Brake Handle Rod

$

$

Not available

29

Cub Cadet 01009188

Park Brake Bellcrank

$

$

Not available

30

Cub Cadet 01009185

Park Brake Shaft

$

$

Not available

31

Cub Cadet 01009187

Rear Brake Arm Assembly

$

$

Not available
