56A34DT2750 - Cub Cadet XP Stand-On Spreader Sprayer Sprayer Assembly Parts Diagram

XP Stand-On Spreader Sprayer

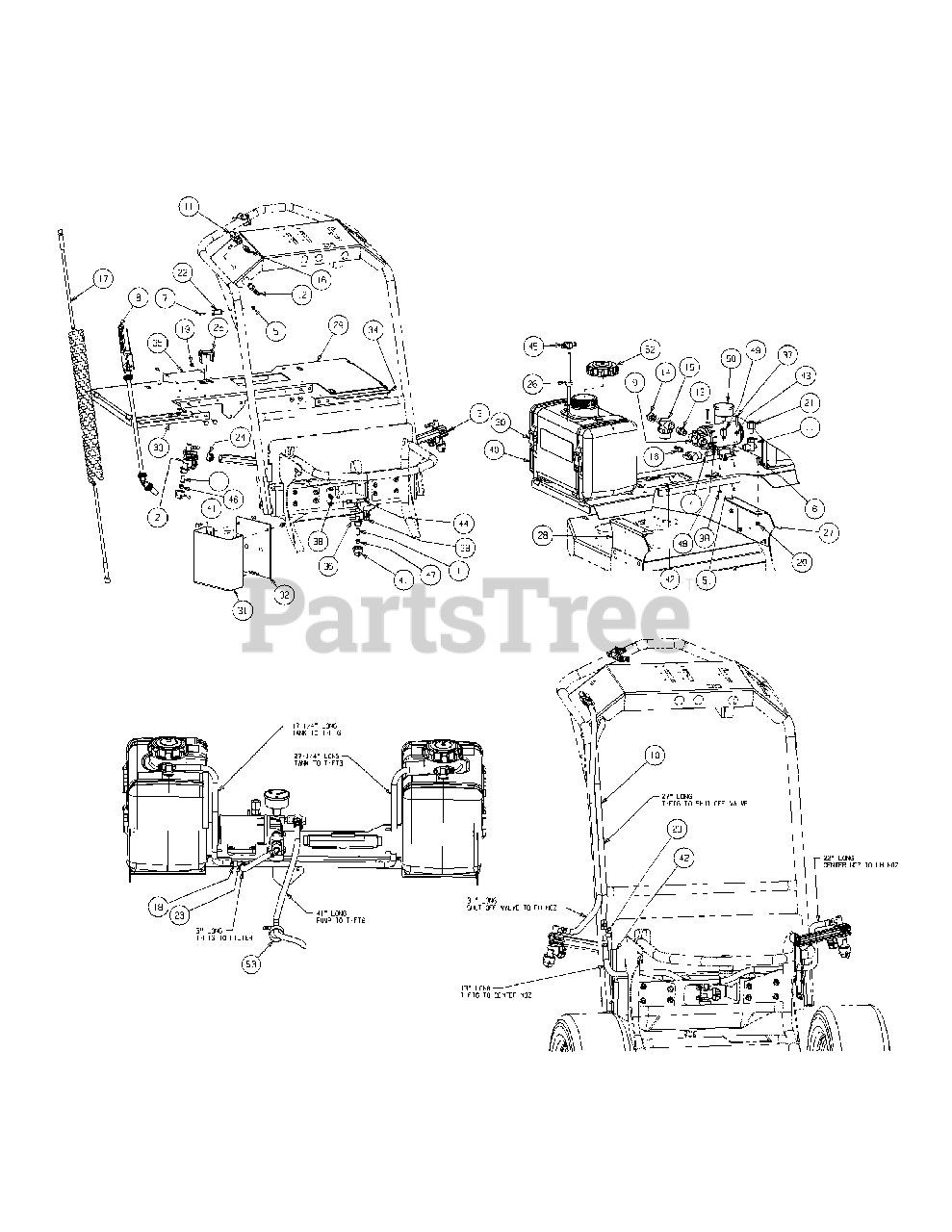

Sprayer Assembly Parts Diagram

  • Title

1

Cub Cadet 00005173

Strainer Screen, 50 Mesh, SS

$6.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00009288

Single Dry Boom Nozzle Body

$36.99

$

In Stock, only 2 left!

0

3

Cub Cadet 00009679

Nozzle Body Clamp, 1" SQ.

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00011939

1/4" Brass Nipple

$

$

Not available

5

Cub Cadet 00014608

Lock Nut, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

6

Cub Cadet 00017584

Carriage Bolt, 1/4-20 x .75

$

$

Not available

7

Cub Cadet 00017778

Phillips Head Screw, 10-32

$4.99

$

In Stock, only 2 left!

0

8

Cub Cadet 00018334

Spray Wand

$140.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00020851

Pump, Flojet 25 GL

$498.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00022284-1

Hose, 3/8 x 17.20ft - 300psi

$5.99

$

In Stock, only 2 left!

0

11

Cub Cadet 00031247

Valve, 1/4 90 Deg. Female

$52.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 00032113

Fitting, 1/4 MPT x 3/8

$

$

Not available

13

Cub Cadet 00035599

Fitting, 8-145-00, Shurflo

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00035600

Fitting, 8-060-01, Shurflo

$

$

Not available

15

Cub Cadet 00035601

Filter, 170-061-00, Shurflo
(Superseded to HY-255-313)

$53.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 00035781

Fitting, 1/4 MET x 3/8 Barb, nylon

$

$

Not available

17

Cub Cadet 00035816

Hose Assembly, 25ft blue

$269.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01000215

Hose Clamp, 1/4-5/8, SS

$

$

Not available

19

Cub Cadet 01001864

Self Tapping Screw, #10-24 x 0.500
(Superseded to 1767754)

$

$

Not available

20

Cub Cadet 912-3027

Nut, #10-24, Hex Flange Lock

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 01008987

Adaptor, 3/8 FNPT, 1/4 MNPT

$

$

Not available

22

Cub Cadet 01009281

Clamp

$

$

Not available

23

Cub Cadet 01009337

Tee Fitting, 3/8 Multi Barb

$

$

Not available

24

Cub Cadet 02000104

Plastic Plug

$2.49

$

In Stock, only 2 left!

0

25

Cub Cadet 02001274P

Switch

$

$

Not available

26

Cub Cadet 02002253

Fuel Tank Grommet

$4.99

$

In Stock, only 2 left!

0

27

Cub Cadet 703-06863-0637

Sprayer Plate Adaptor Bracket, RH

$

$

Not available

28

Cub Cadet 703-06864-0637

Sprayer Plate Adaptor Bracket, LH

$

$

Not available

29

Cub Cadet 703-06865

Mounting Plate

Variations

Cub Cadet 703-06865-0637

PLATE - MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 726-04100

Cable Tie, 48"

$7.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 703-06933-0637

Hose Bracket

$

$

Not available

32

Cub Cadet 703-06934-0637

Hose Plate

$

$

Not available

33

Cub Cadet 703-06952-0637

Support Bracket, RH

$

$

Not available

34

Cub Cadet 703-06953

Support Bracket, LH

Variations

Cub Cadet 703-06953-0637

BRACKET - SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 703-07032-0637

Bracket, Label

$

$

Not available

36

Cub Cadet 710-04805

U-Bolt, #10-24

$2.49

$

In Stock, only 2 left!

0

37

Cub Cadet 710-04812

HHCS, #10-24 x 1.25

$

$

Not available

38

Cub Cadet 712-0161

Nut, #10-24, Hex Flange Nylon

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 731-06595

Nozzle Body, Center

$41.99

$

In Stock, only 1 left!

0

40

Cub Cadet 731-06596

Tank, 5 Gallon

$

$

Not available

41

Cub Cadet 931-06597

Cap, Nozzle Body

$5.49

$

In Stock, only 3 left!

0

42

Cub Cadet 735-04130

Battery Edge Trim

$8.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 936-0400

Washer, .194 x .62 OD x .063
(Superseded to 736-0400)

$

$

Not available

44

Cub Cadet 737-04239

Tee Fitting, 1/4 NPTF x 3/8

$19.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 737-04240

Fitting, Sprayer Pickup

$33.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 737-04241

Fitting, Off Center Spray Tip

$

$

Not available

46

Cub Cadet 737-04281

Optional Fitting, Off Center Brass Spray Tip

$23.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 737-04282

Optional Fitting, Off Center Brass Spray Tip

$

$

Not available

46

Cub Cadet 737-04283

Optional Fitting, Off Center Brass Spray Tip

$

$

Not available

47

Cub Cadet 737-04242

Fitting, Flat Spray Tip

$16.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 737-04284

Optional Fitting, Flat Yellow Spray Tip

$

$

Not available

47

Cub Cadet 737-04285

Optional Fitting, Flat Red Spray Tip

$

$

Not available

47

Cub Cadet 737-04286

Optional Fitting, Flat Silver Spray Tip

$

$

Not available

48

Cub Cadet 737-04256

Fitting, 3/8 NPTF x 1/4 NPTF

$

$

Not available

49

Cub Cadet 737-04261

Fitting, 1/4 NPTF x 1/8 NPTM

$

$

Not available

50

Cub Cadet 737-04262

Pressure Gauge, 0-100 psi

$85.99

$

In Stock, only 1 left!

0

51

Cub Cadet 737-04263

Tee, 3/8 NPTF, Brass

$14.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 951-3124E

Fuel Cap

$36.99

$

In Stock, only 1 left!

0

53

Cub Cadet 00012529

Reel Return Line Sleeve, 1.59, 15"LG

$

$

Not available
